Removal and Installation

Position the boot aside.

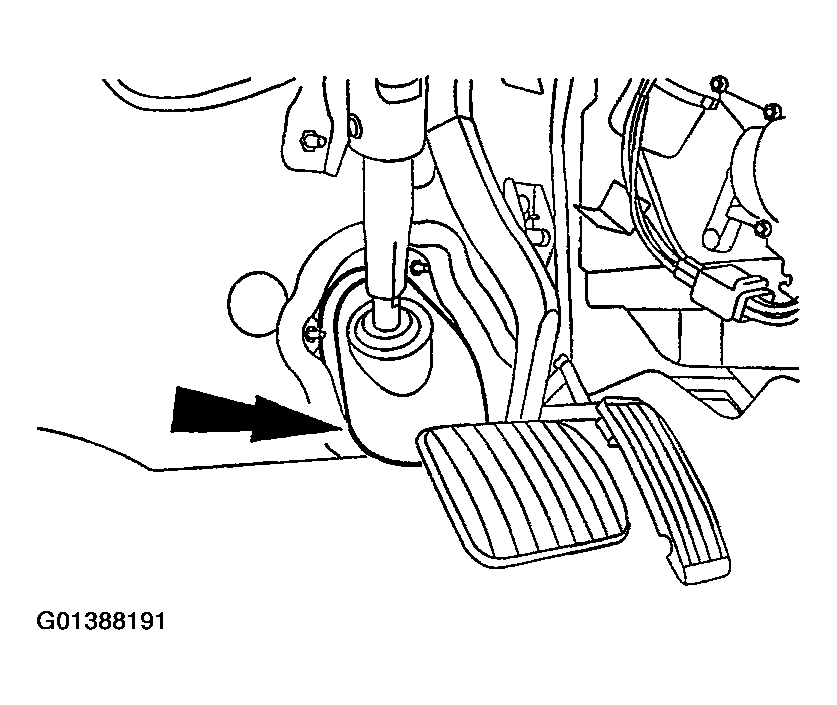

Fig 1: Positioning Boot Aside
Courtesy of FORD MOTOR CO.
Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.

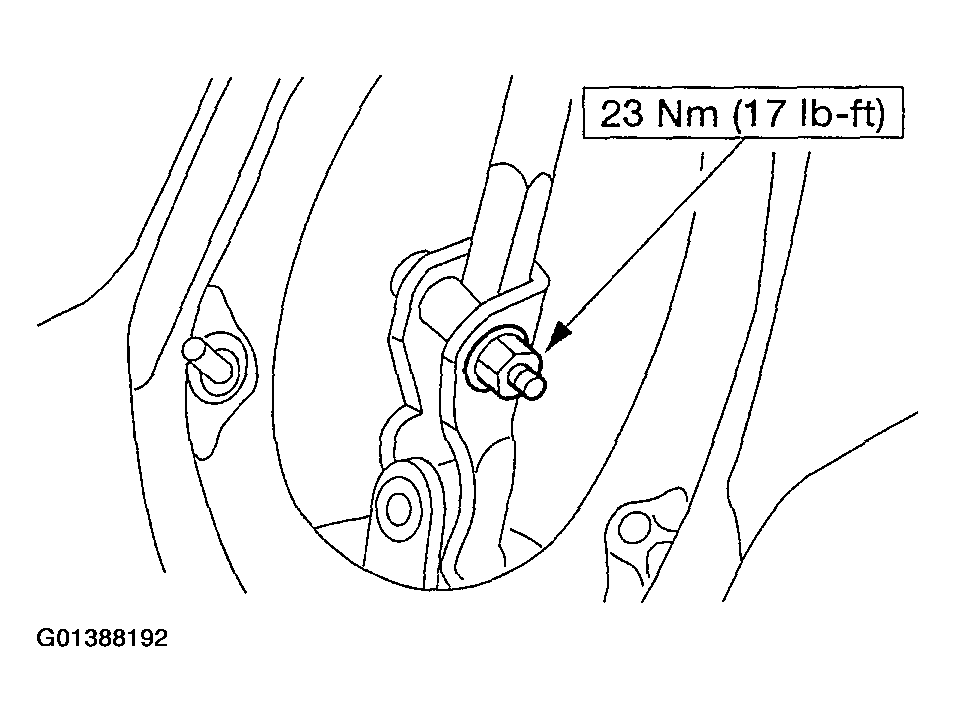

Fig 2: Loosening Pinch Bolt/Nut And Disconnect Steering Column Shaft From Flexible Coupling
Courtesy of FORD MOTOR CO.
Remove the steering gear coupling.
1. Position aside the rubber boot.
2. Remove the pinch bolt.

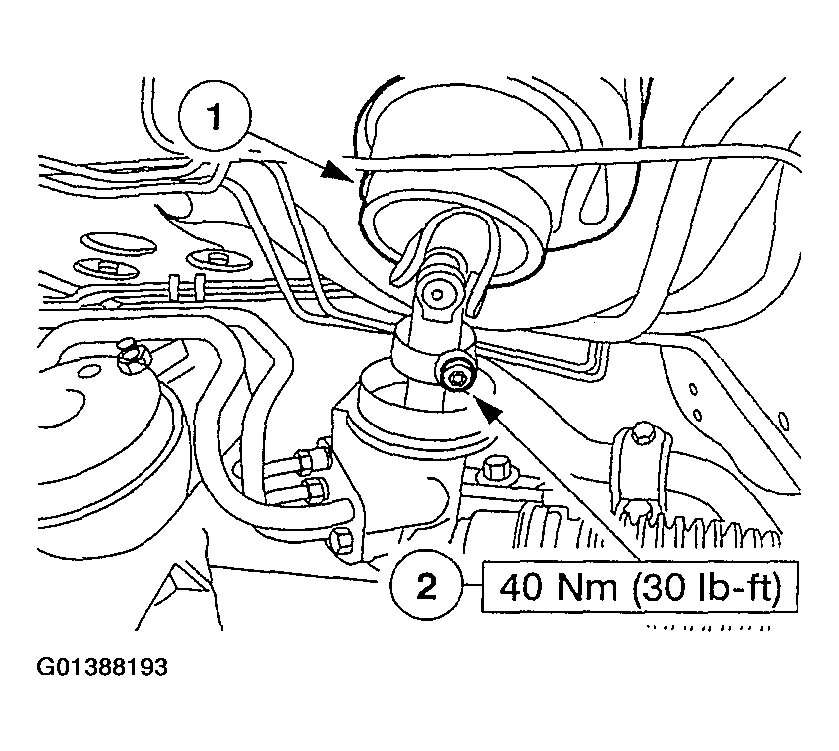

  Fig 3: Removing Steering Gear Coupling
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
