Lower Control Arm: Removal

Raise and support vehicle. Remove wheel assembly. Remove nut and pinch bolt securing lower ball joint to knuckle. See Figure . Separate steering knuckle from lower ball joint.
Support subframe. Remove lower control arm bolts. See Fig 1 . Remove lower control arm.

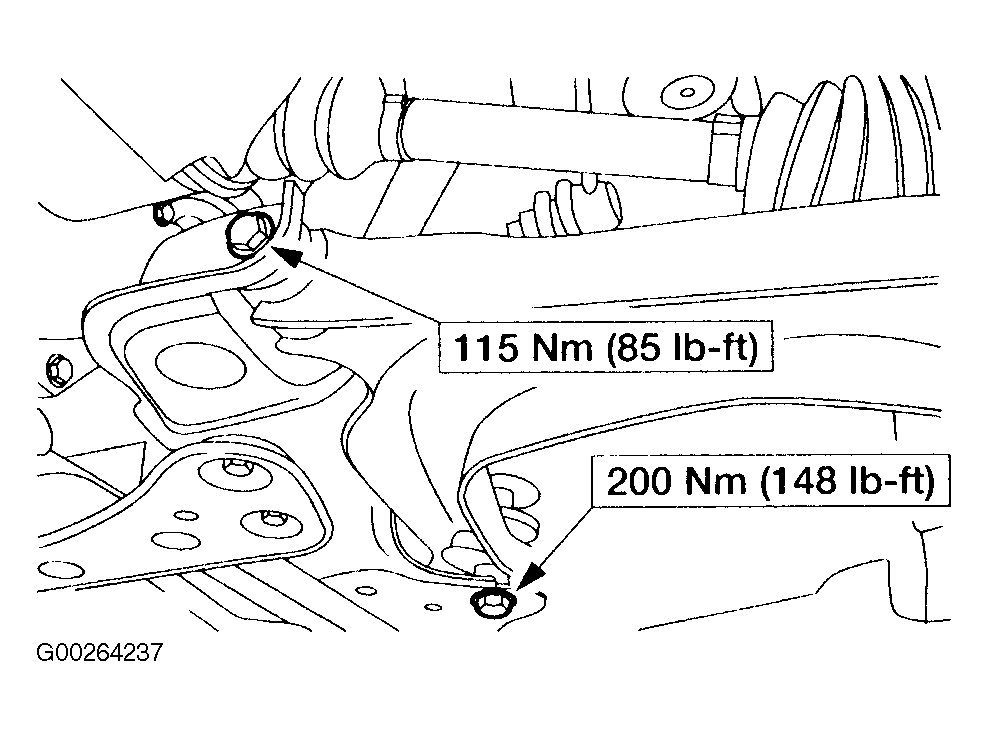

Fig 1: Locating Lower Control Arm Bolts

Courtesy of FORD MOTOR CO.
