Specification & Procedures
›
Wheel Alignment Specifications
Wheel Alignment Specifications

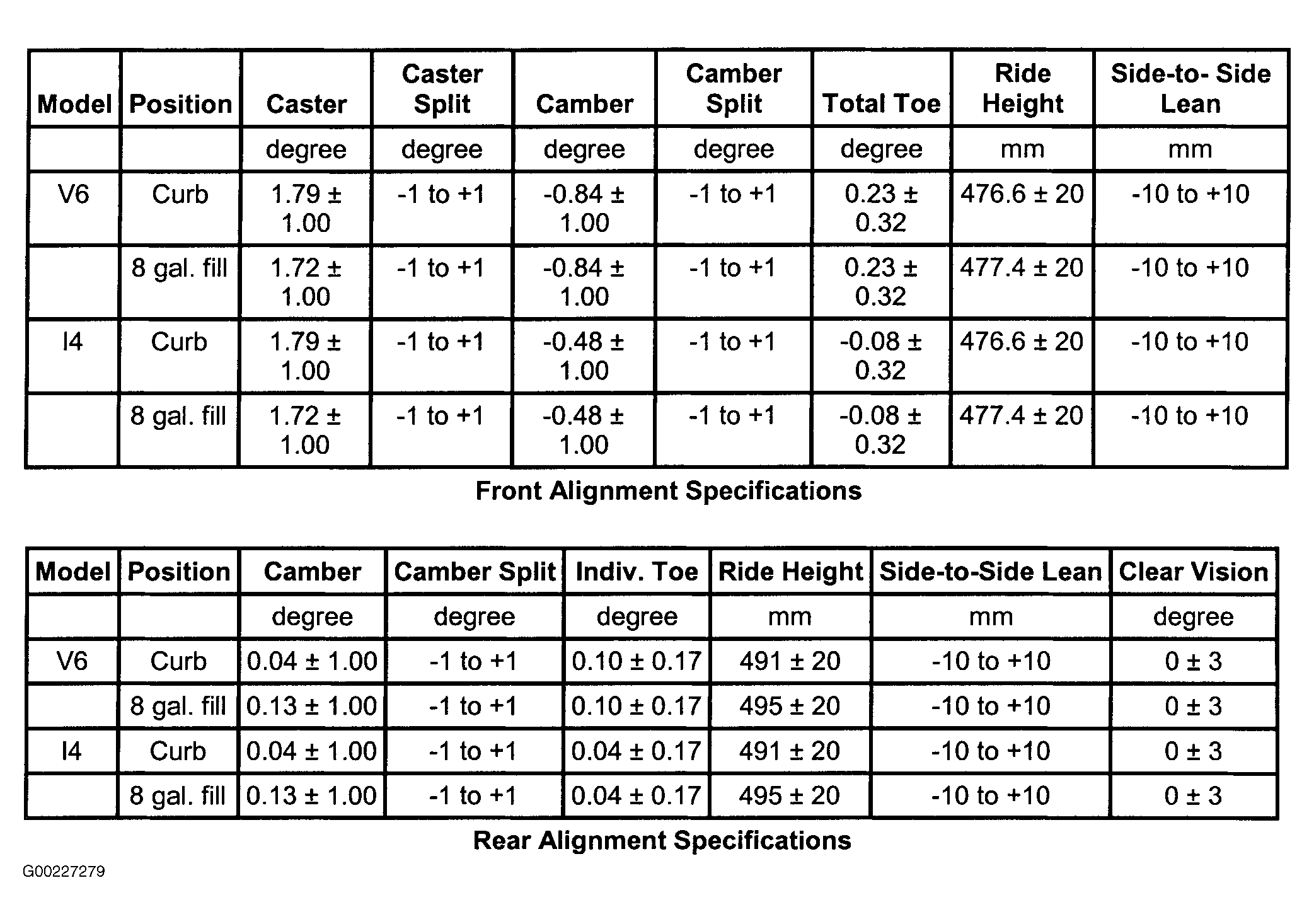

Fig 1: Wheel Alignment Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
