Automatic Transmission External Controls
›
Diagnosis And Testing
›
External Controls
›
Symptom Chart
Symptom Chart

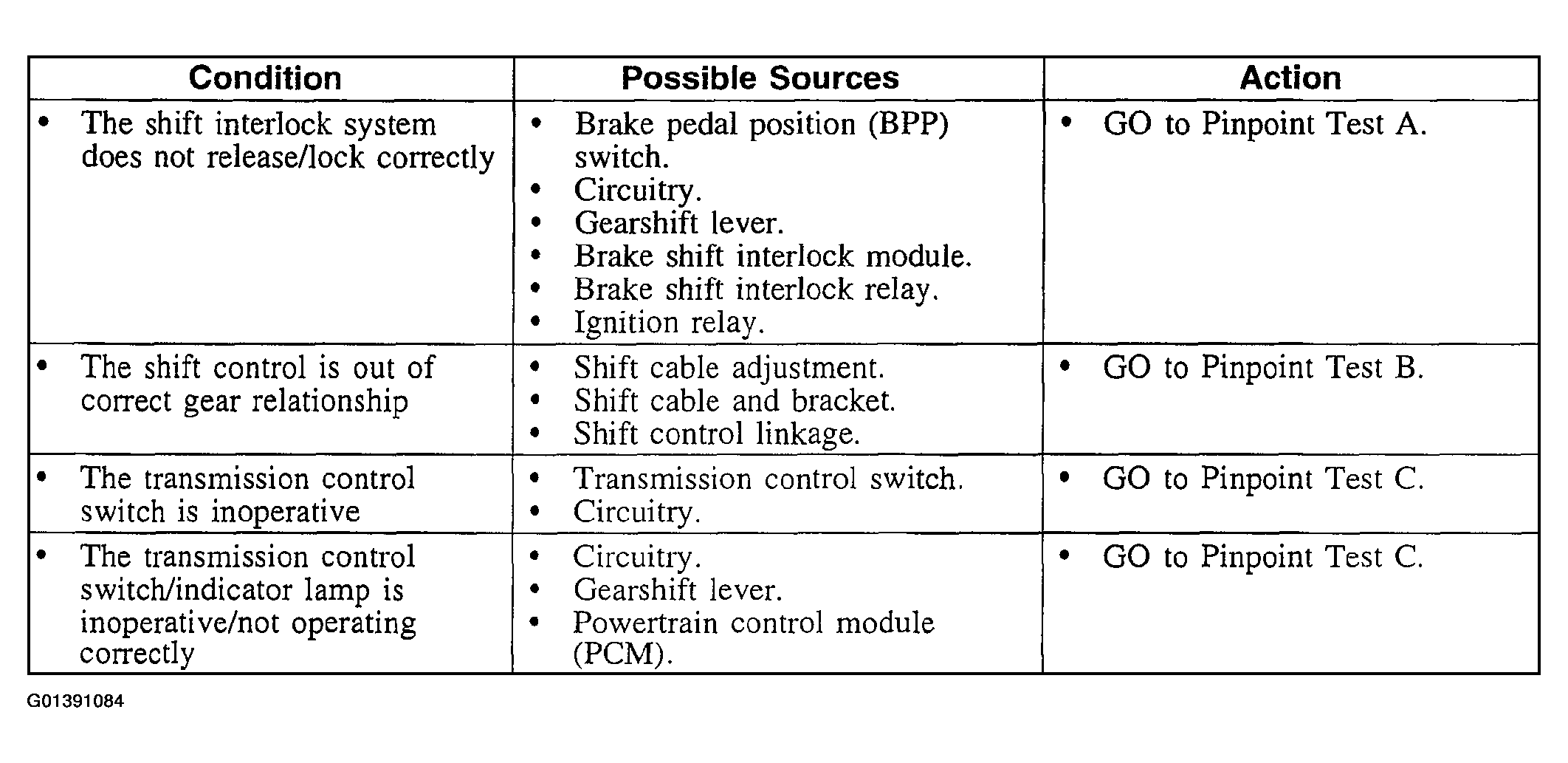

Fig 1: Problem Symptom Chart - Transmission External Controls
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
