Drive Sprocket Alignment No. 10 Thrust Washer

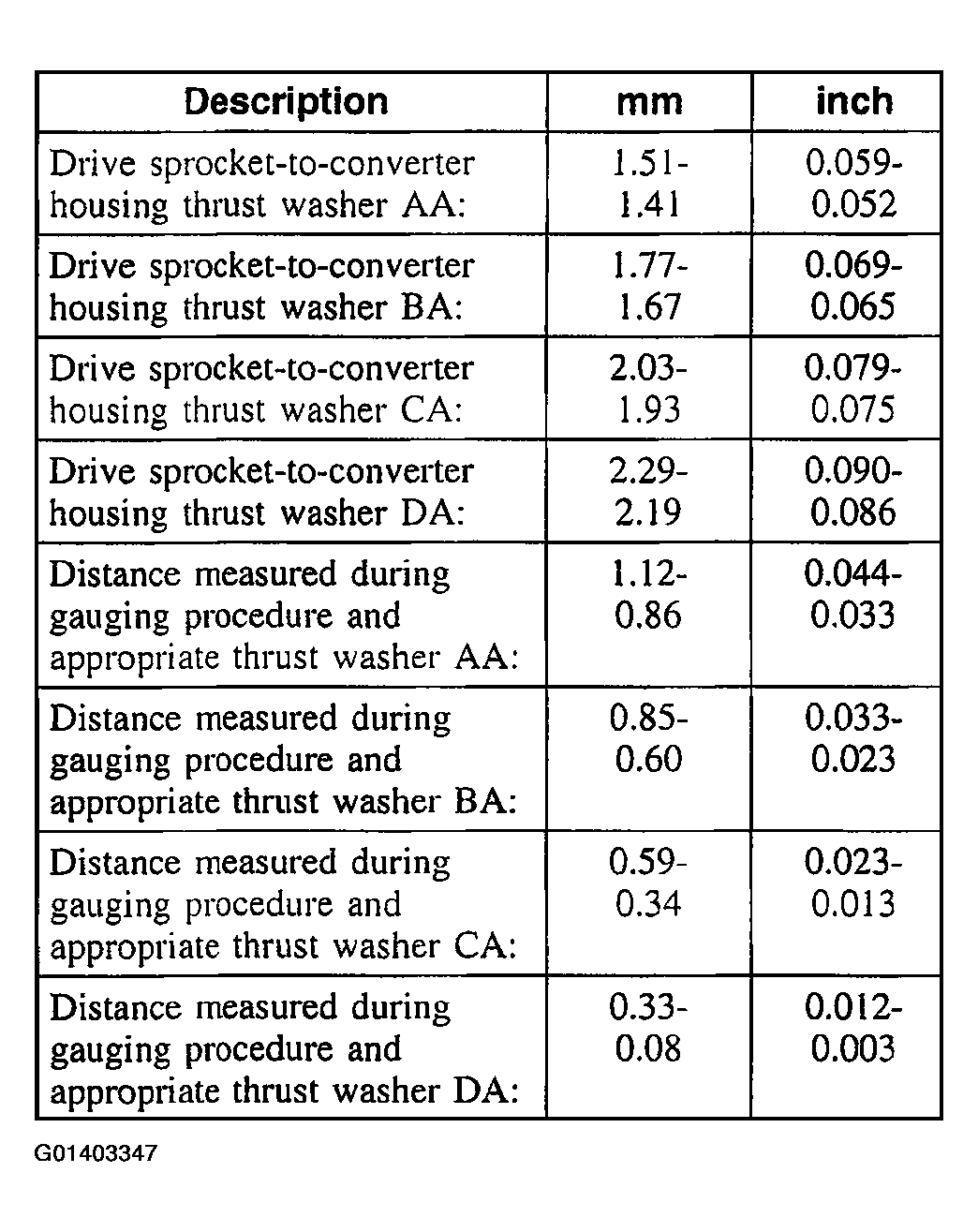

Fig 1: Drive Sprocket Alignment No. 10 Thrust Washer Description
G01403347Courtesy of FORD MOTOR CO.
