Removal and Installation

NOTE: The removal and installation procedures for all window control switches are similar.
  1. Remove the front door trim panel or the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Release the locking clips and remove the window control switch.

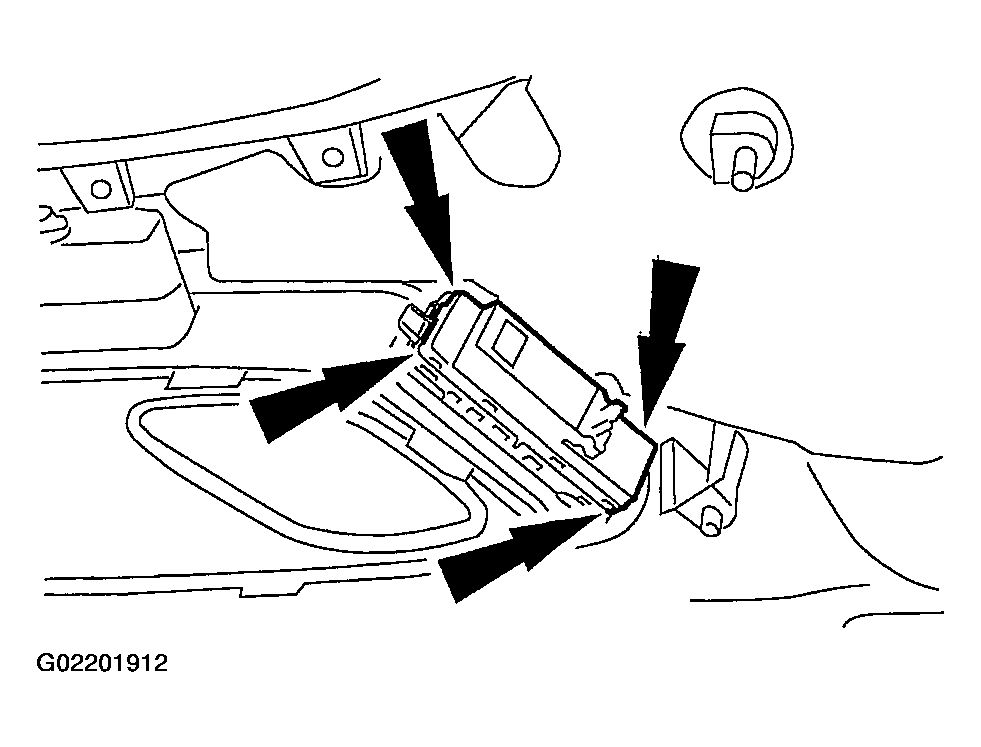

    Fig 1: Releasing Locking Clips And Remove Window Control Switch
    G02201912Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
