Selector Lever Cable: Removal

NOTE: LH drive shown; RH drive similar.

Remove the upper steering column shroud.

Fig 1: Removing Upper Steering Column Shroud
Courtesy of FORD MOTOR CO.

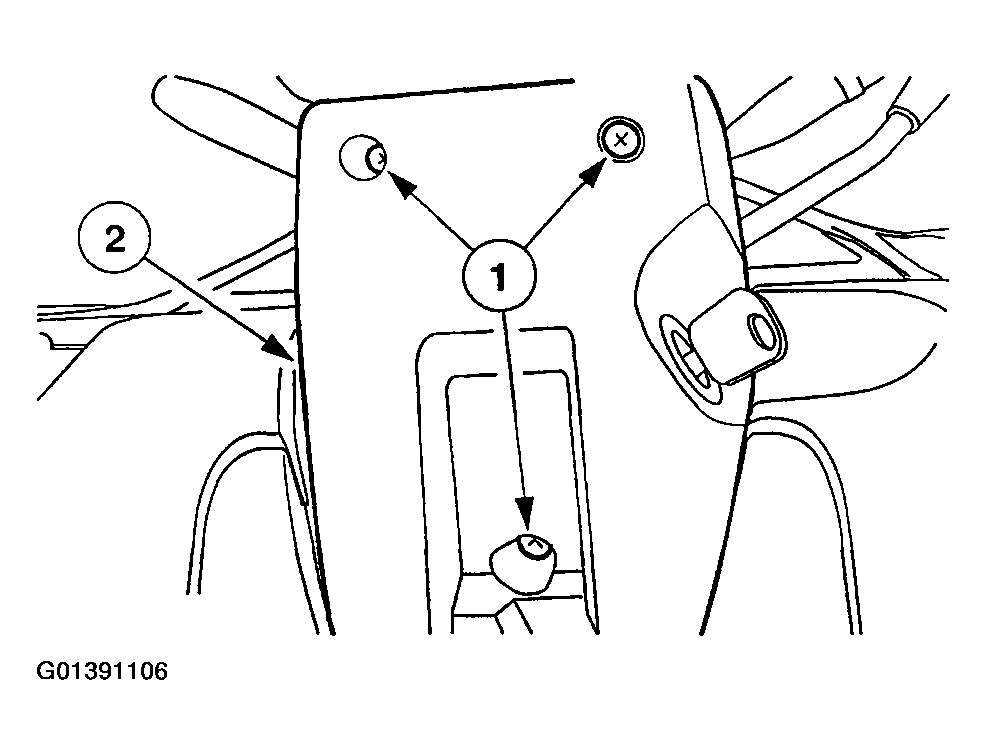

Remove the lower steering column shroud.
1. Remove the screws.
2. Remove the lower steering column shroud.

  Fig 2: Removing Lower Steering Column Shroud
  Courtesy of FORD MOTOR CO.

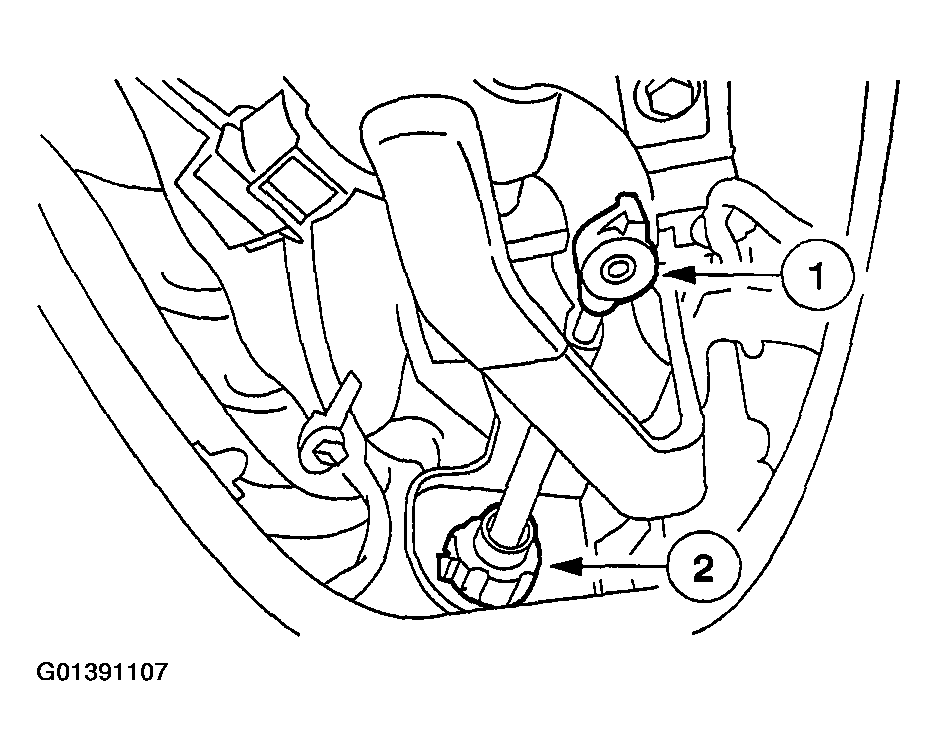

Disconnect the gearshift cable from the steering column bracket.
1. Disconnect the gearshift cable from the gearshift lever.
2. Disconnect the gearshift cable from the steering column bracket.

  Fig 3: Disconnecting Gearshift Cable From Steering Column Bracket
  Courtesy of FORD MOTOR CO.

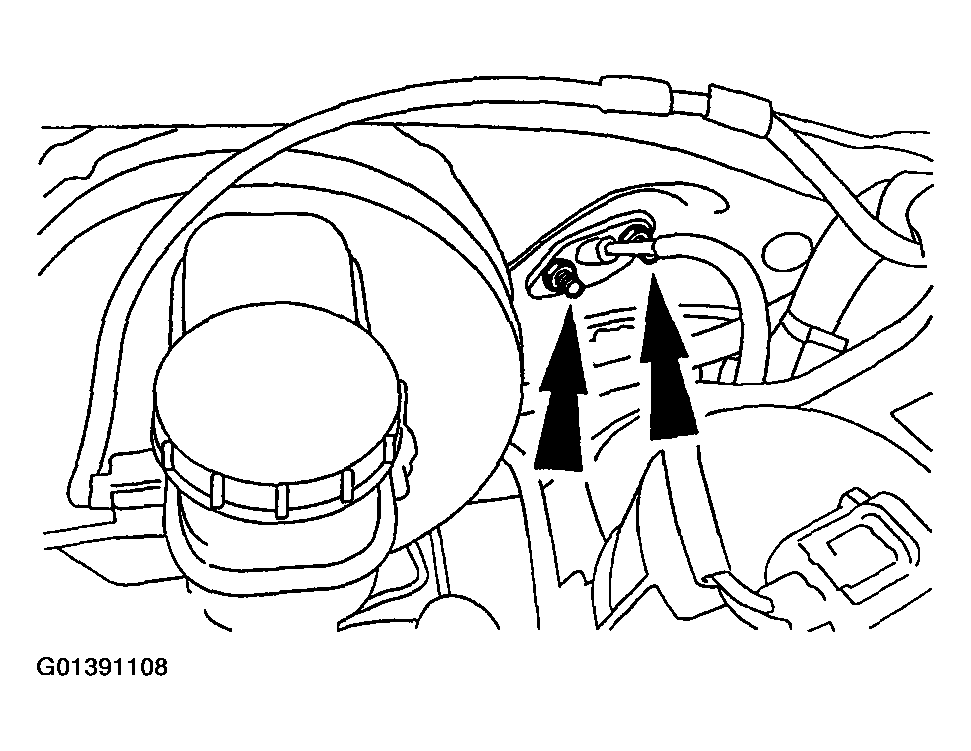

Remove the gearshift cable nuts.

Fig 4: Removing Gearshift Cable Nuts
Courtesy of FORD MOTOR CO.

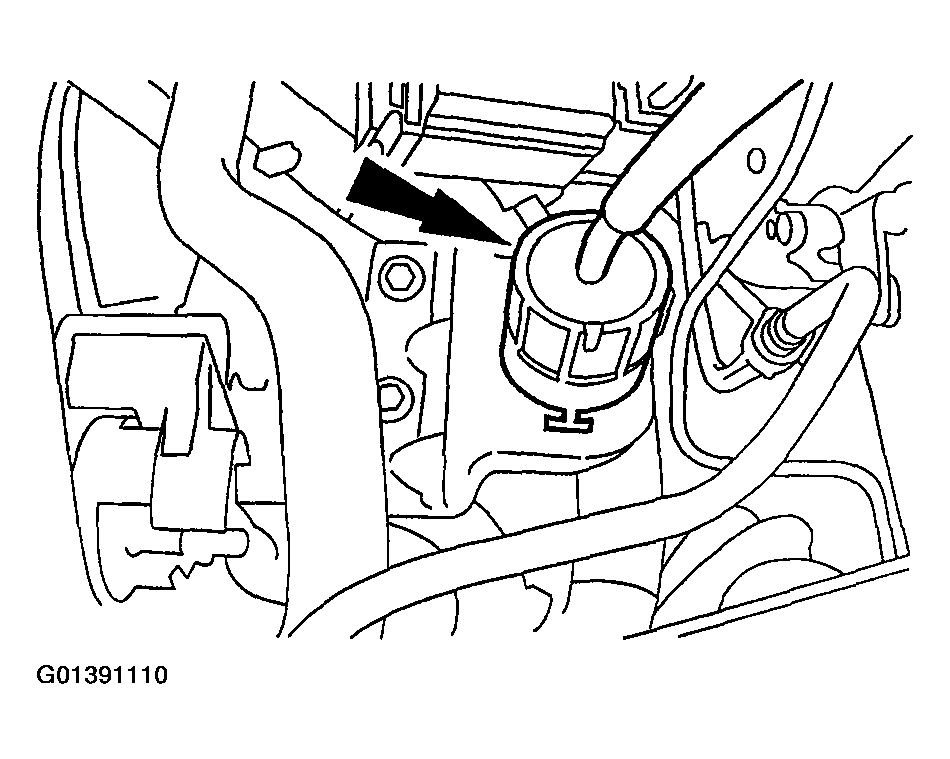

Detach the gearshift cable from the transaxle shifter lever.

Fig 5: Detaching Gearshift Cable From Transaxle Shifter Lever
Courtesy of FORD MOTOR CO.

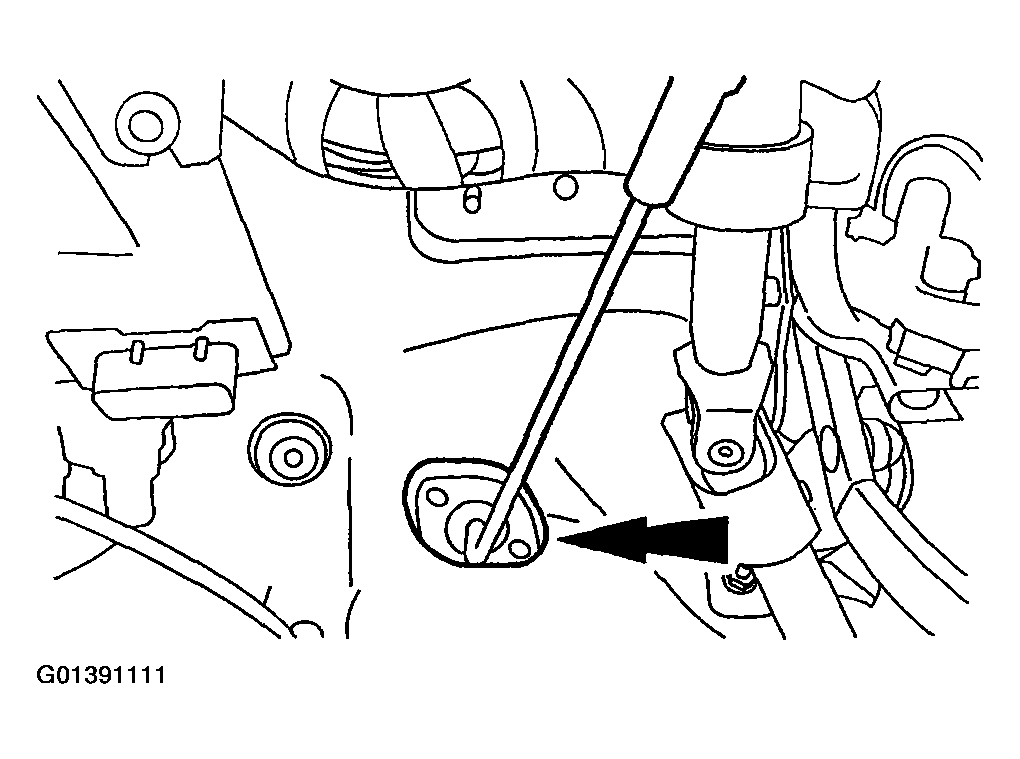

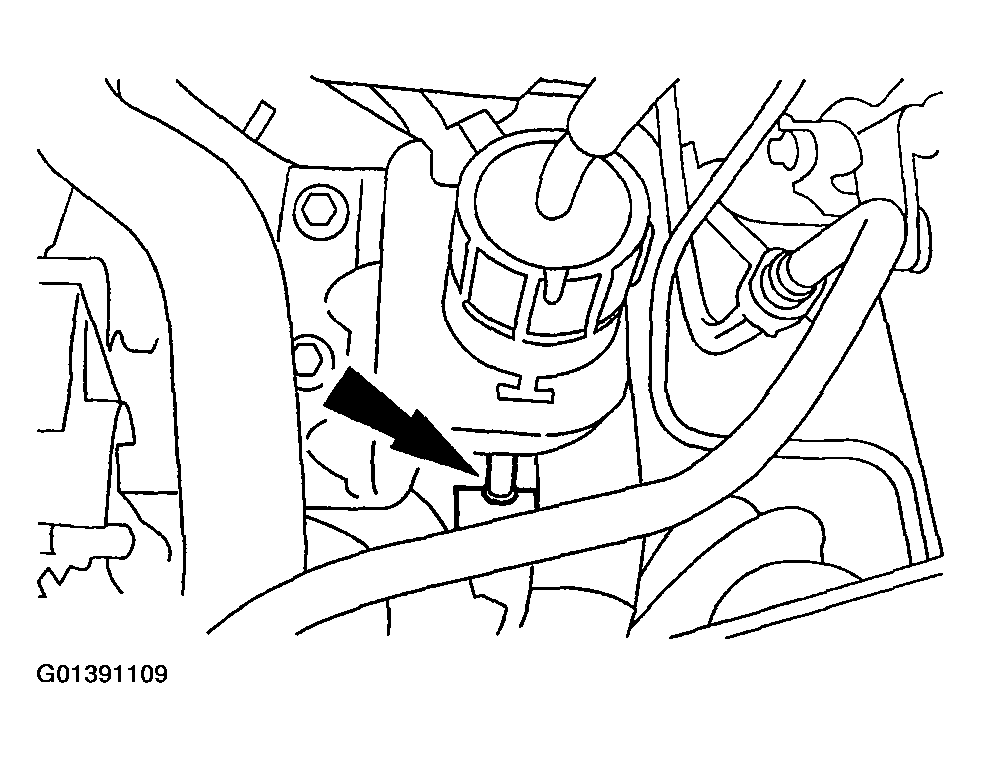

Disconnect the gearshift cable from the bracket by depressing the locking tabs at the bracket.

Fig 6: Disconnecting Gearshift Cable From Bracket
Courtesy of FORD MOTOR CO.
Remove the gearshift cable.

Fig 7: Removing Gearshift Cable
Courtesy of FORD MOTOR CO.
