Disassembled Views

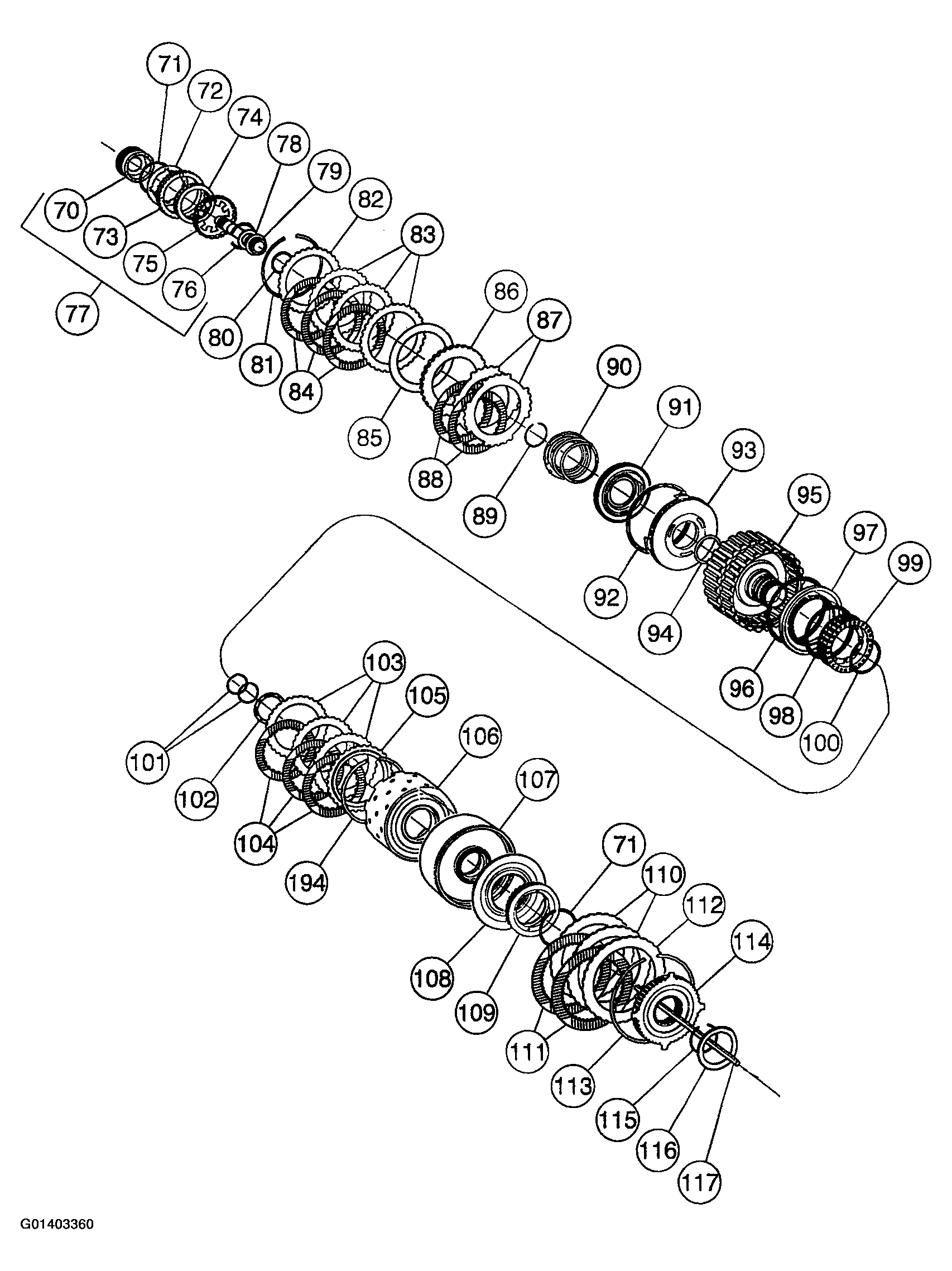

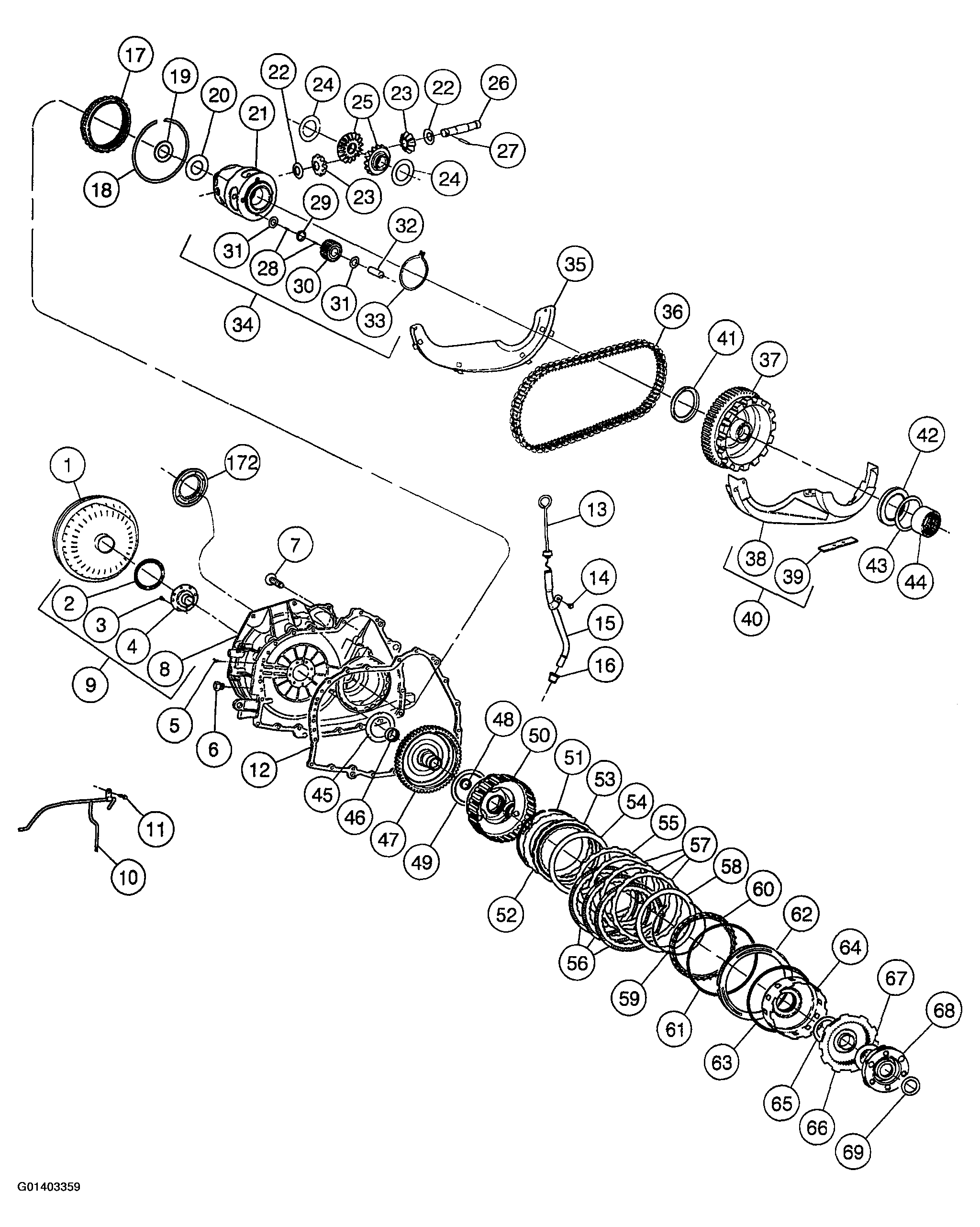

Fig 1: Exploded View Of Automatic Transaxle (1 Of 7)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View Of Automatic Transaxle (2 Of 7)

Courtesy of FORD MOTOR CO.

Fig 3: Exploded View Of Automatic Transaxle (3 Of 7)

Courtesy of FORD MOTOR CO.

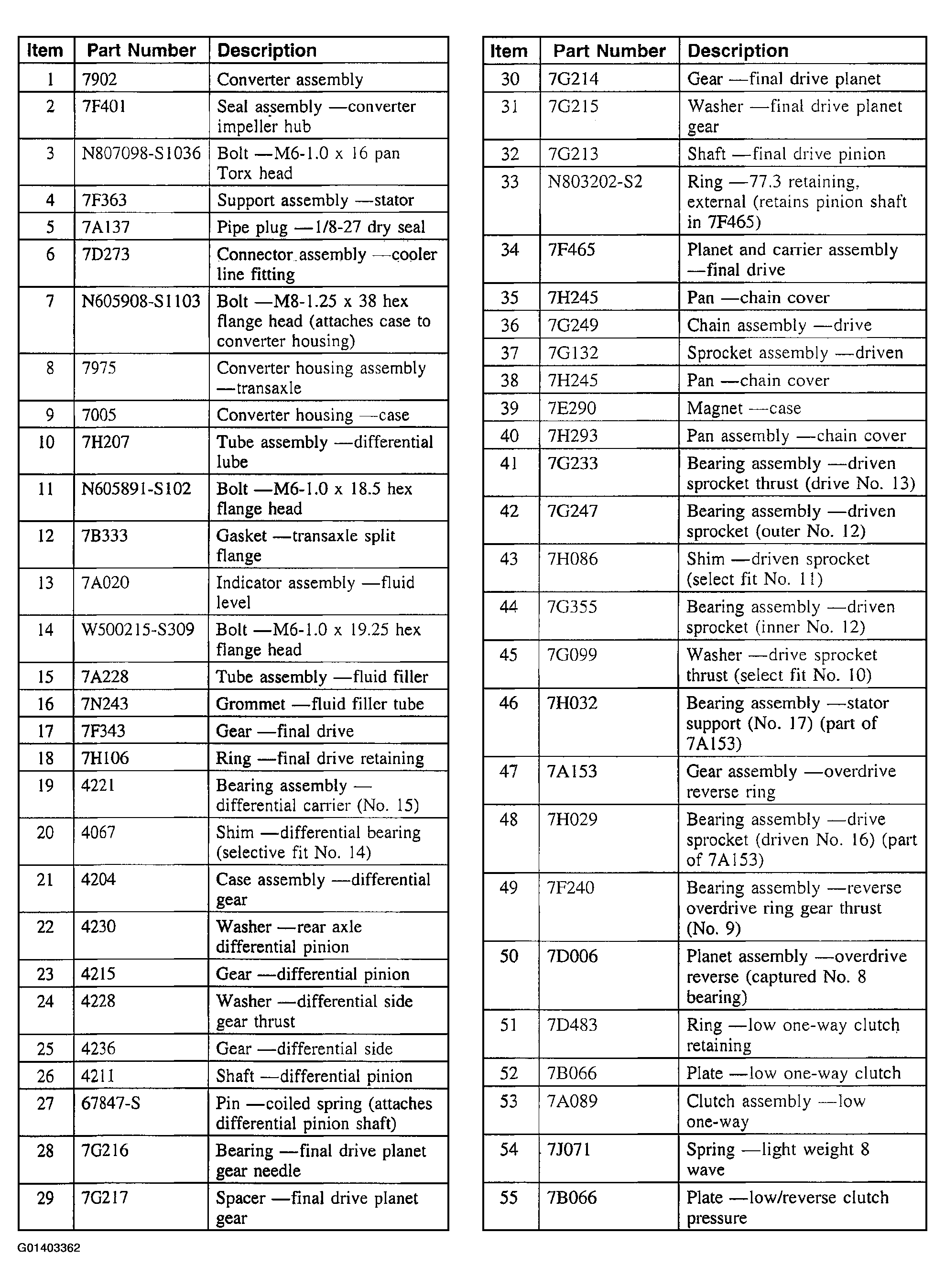

Fig 4: Components Description Automatic Transaxle (4 Of 7)

Courtesy of FORD MOTOR CO.

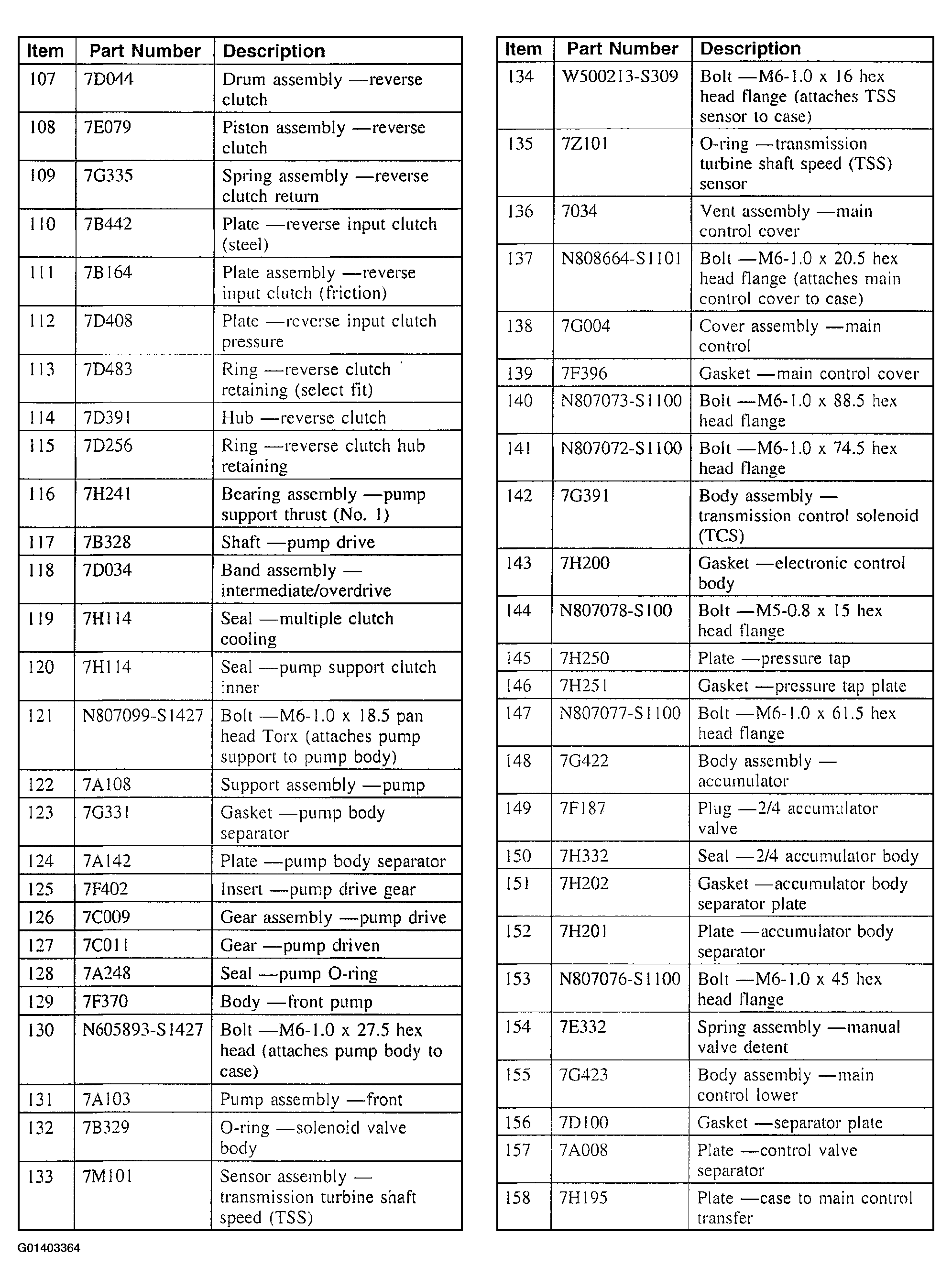

Fig 5: Components Description Automatic Transaxle (5 Of 7)

Courtesy of FORD MOTOR CO.

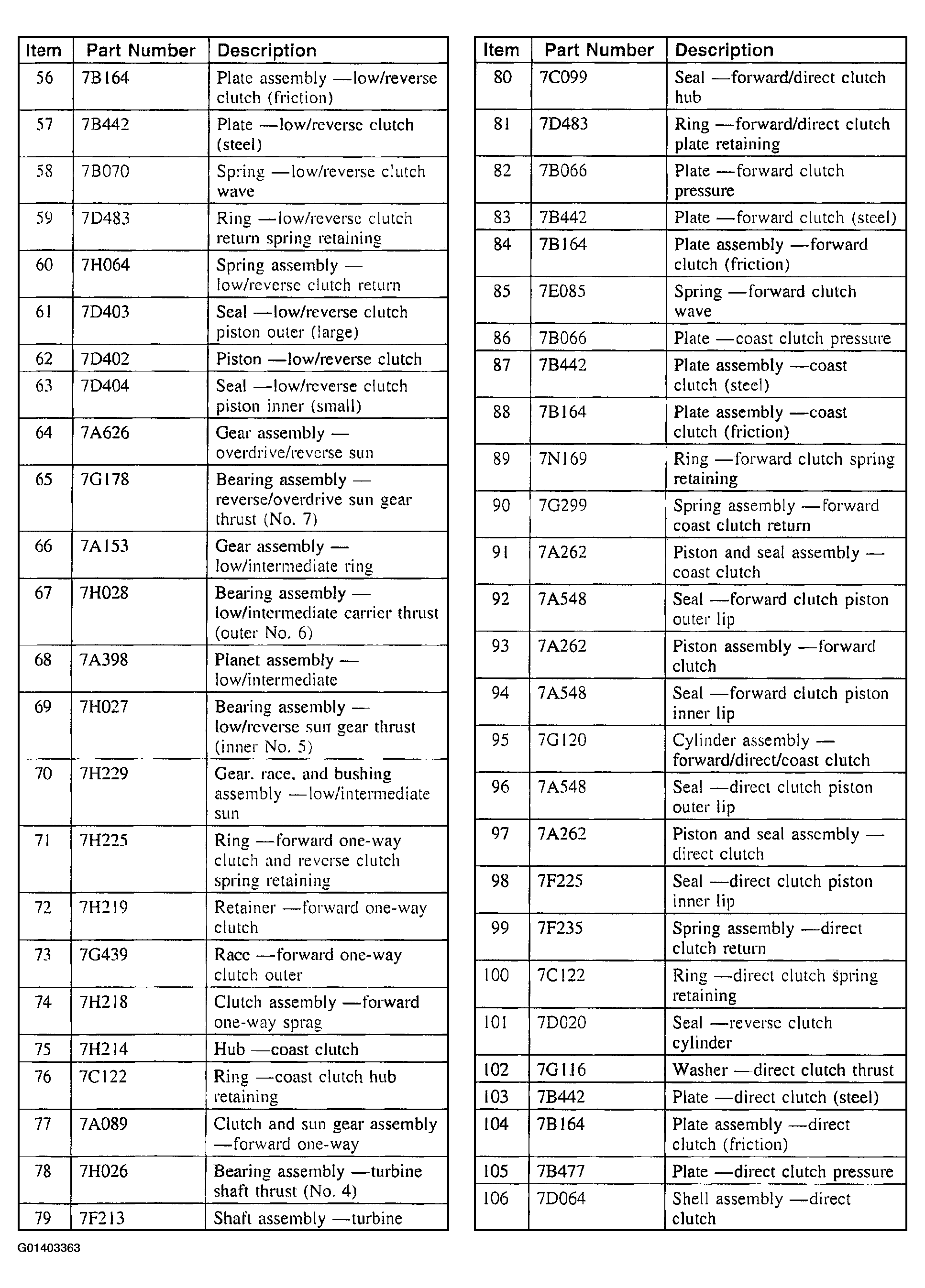

Fig 6: Components Description Automatic Transaxle (6 Of 7)

Courtesy of FORD MOTOR CO.

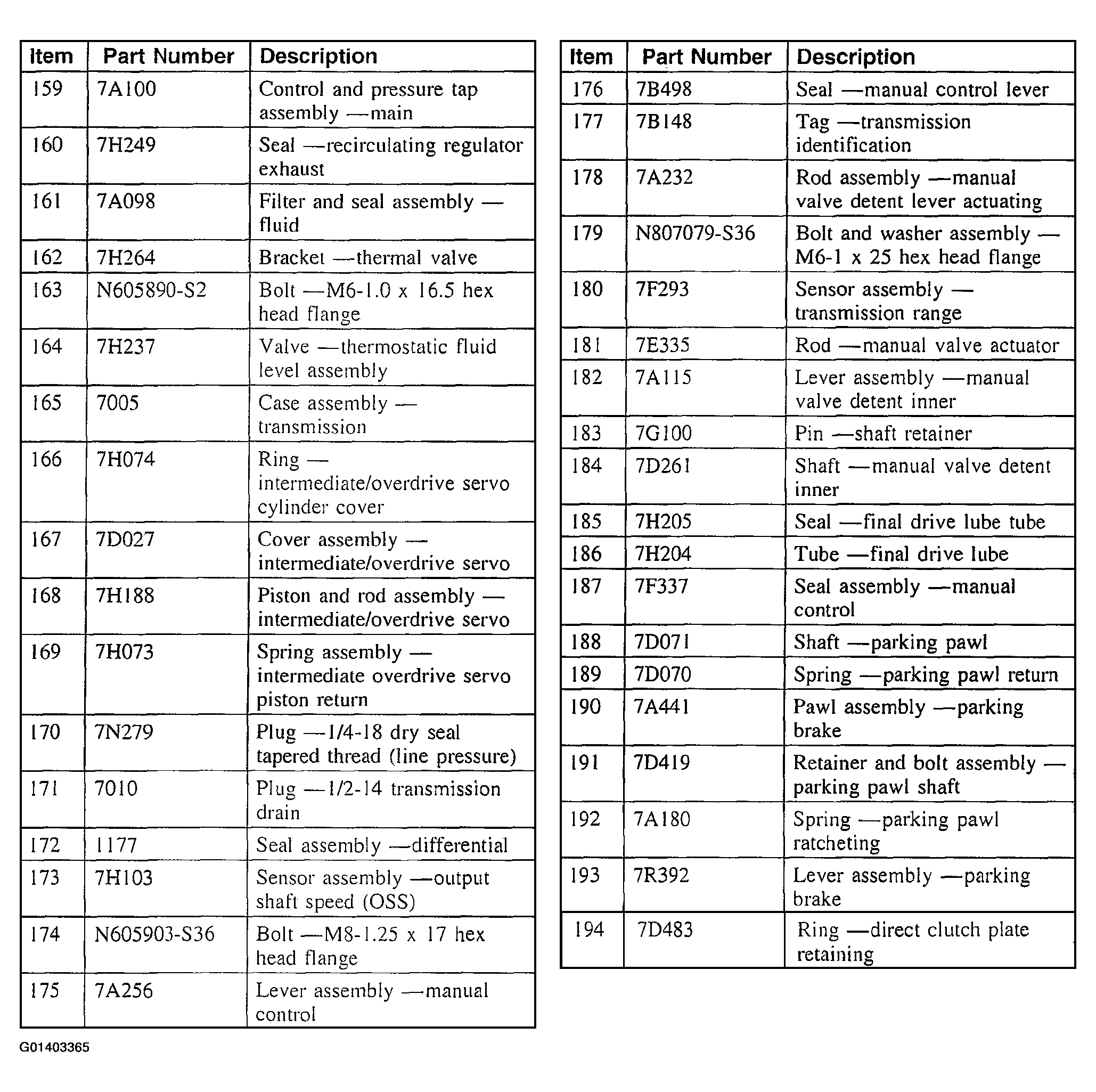

Fig 7: Components Description Automatic Transaxle (7 Of 7)

Courtesy of FORD MOTOR CO.
