Transaxle Support Insulator -Lower, Front: Removal

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

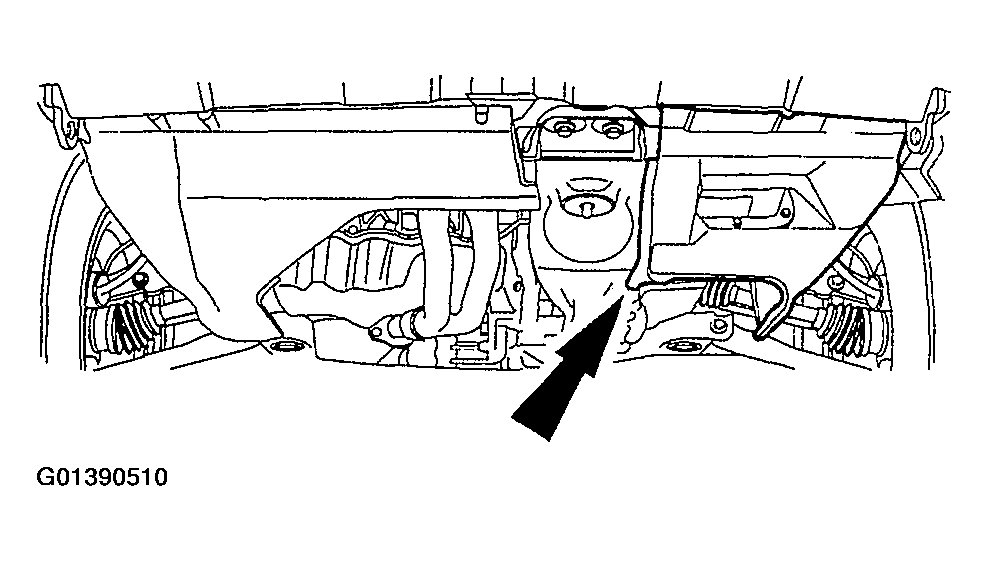

Remove the splash shield.

Fig 1: Removing Splash Shield
Courtesy of FORD MOTOR CO.

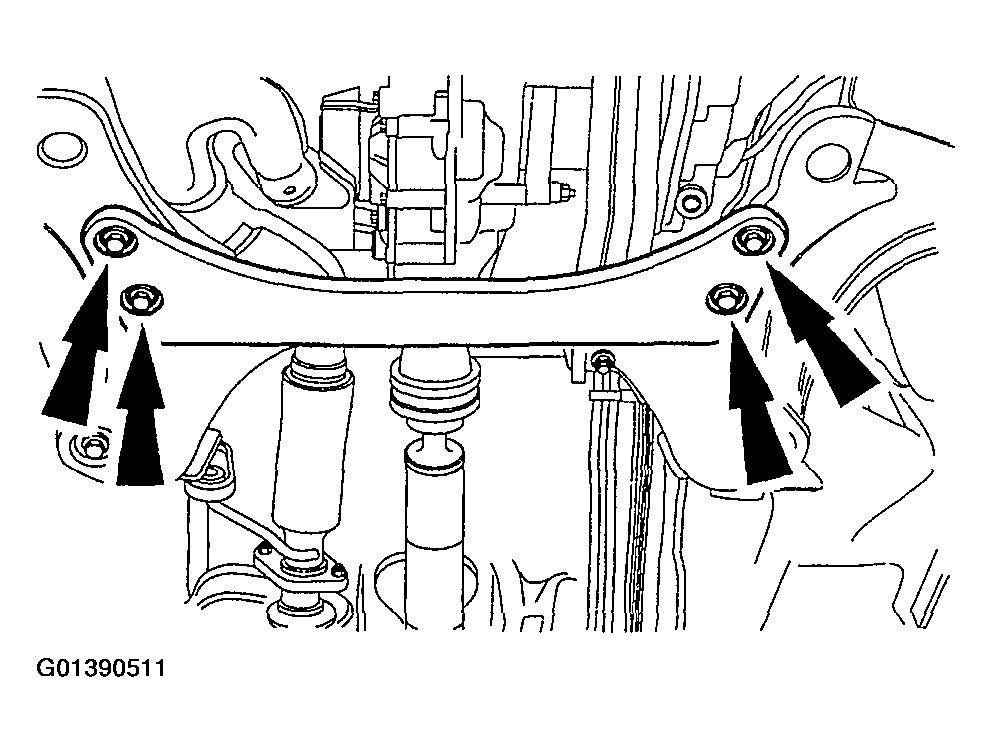

Remove the cross brace.

Fig 2: Removing Cross Brace
Courtesy of FORD MOTOR CO.
Remove the lower vibration dampener.

Fig 3: Removing Lower Vibration Dampener
Courtesy of FORD MOTOR CO.

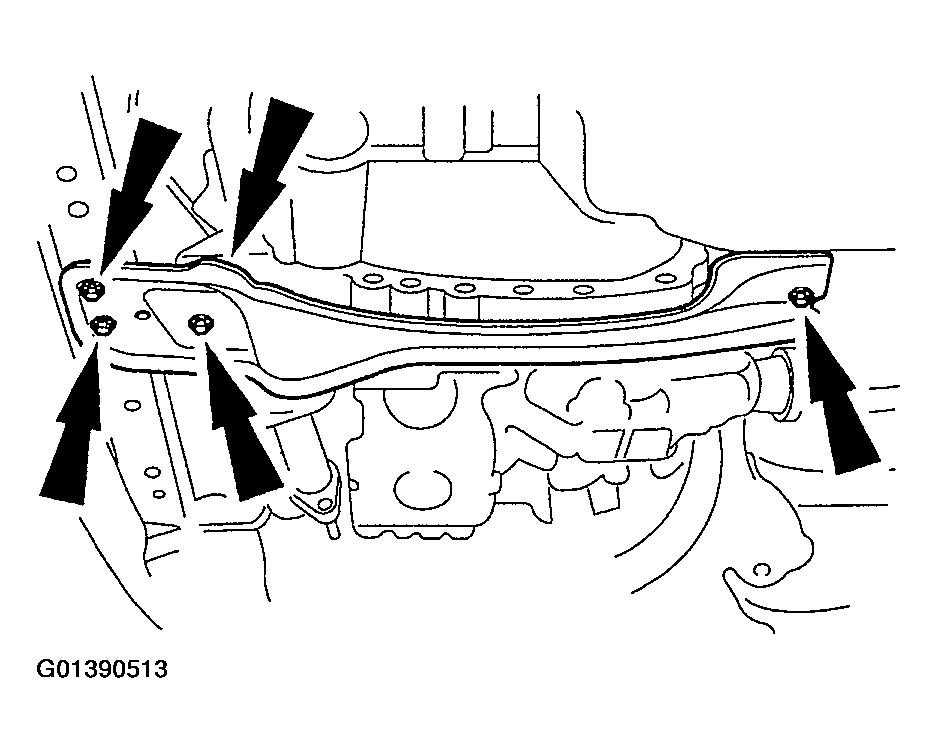

Remove the cross brace.

Fig 4: Removing Cross Brace
Courtesy of FORD MOTOR CO.

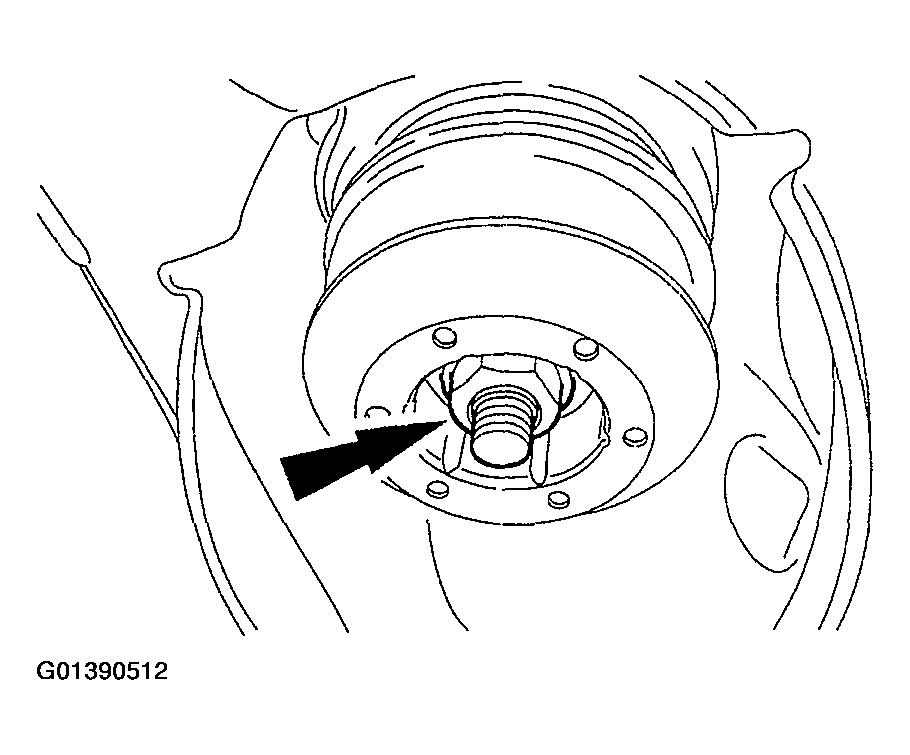

Remove the top and bottom mount cups.

Fig 5: Removing Top And Bottom Mount Cups
Courtesy of FORD MOTOR CO.

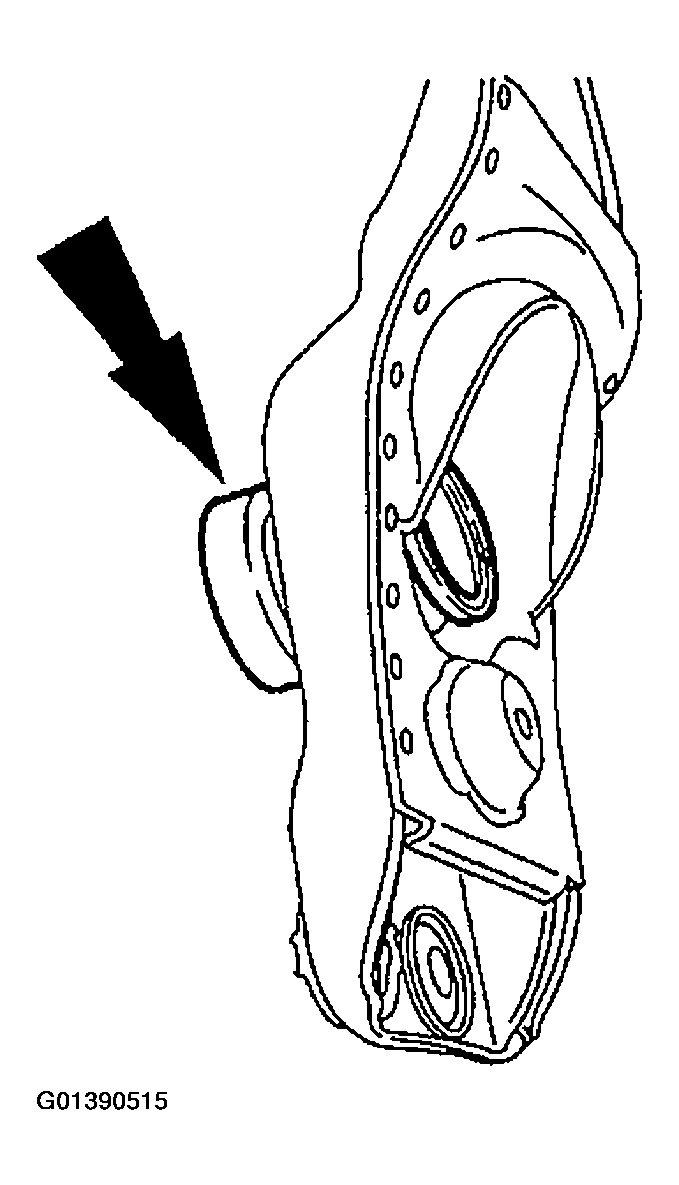

Remove the rubber mount.

Fig 6: Removing Rubber Mount
Courtesy of FORD MOTOR CO.
