Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clips.
    Fig 1: Removing Clips
    G01544998Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.
    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G01544999Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

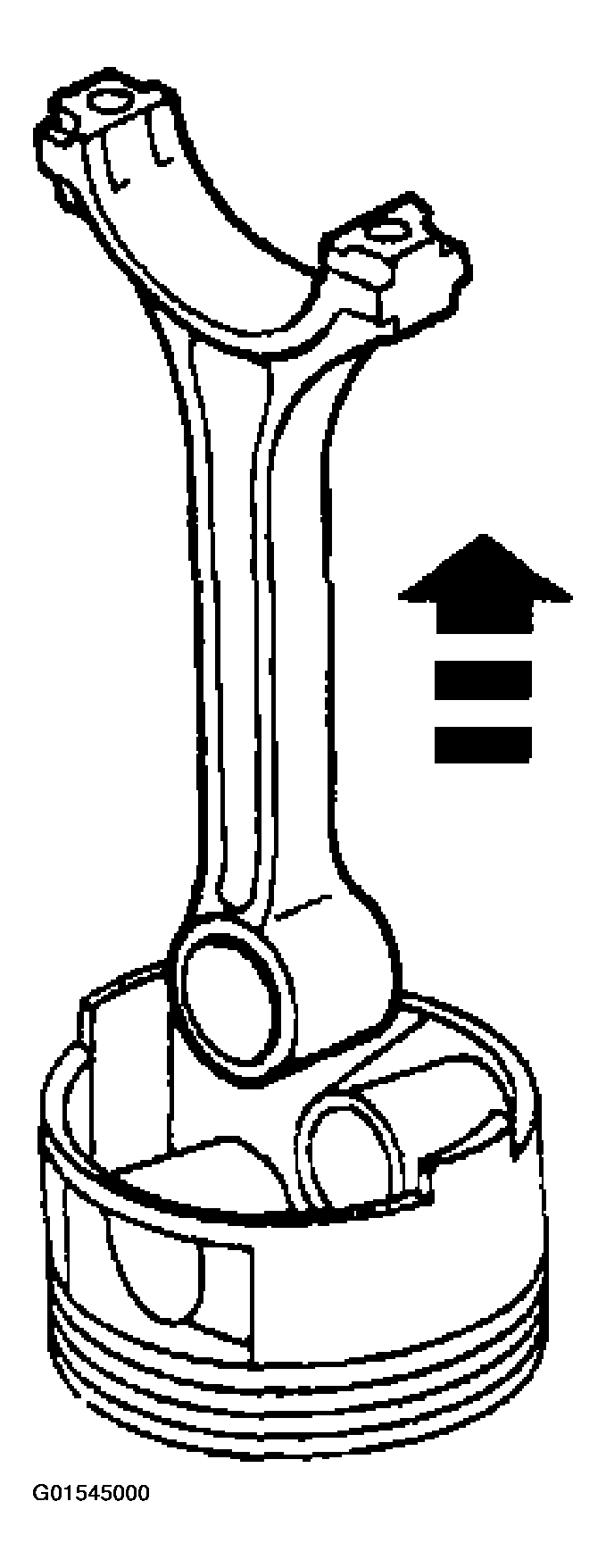

    Fig 3: Removing Connecting Rod From Piston
    G01545000Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
