In-Vehicle Repair: Flexplate: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
- Remove the transmission. Refer to REMOVAL & INSTALLATION .

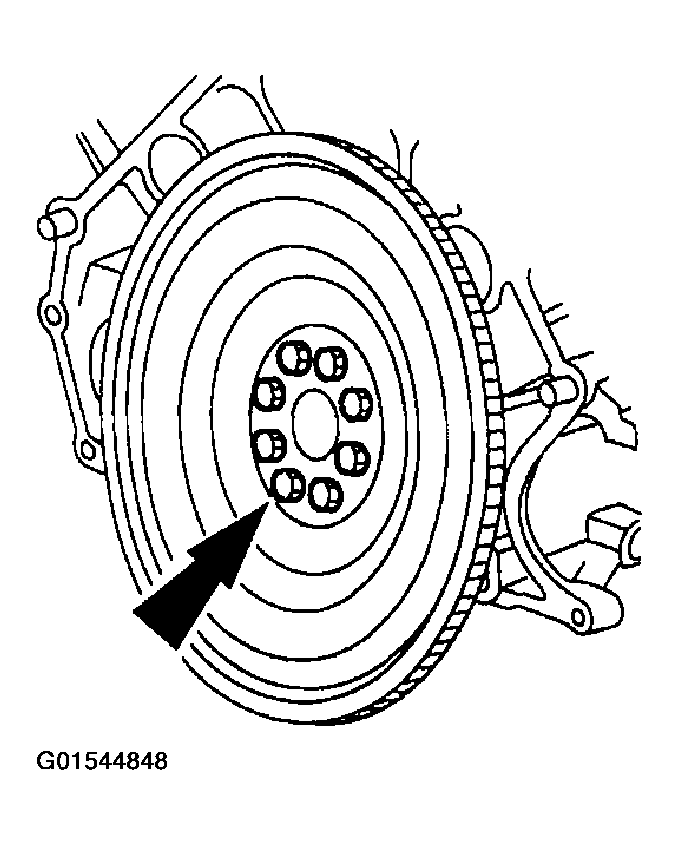

- Remove the bolts and the flexplate.
NOTE:
It is not necessary to remove the transmission from the jack.
