Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

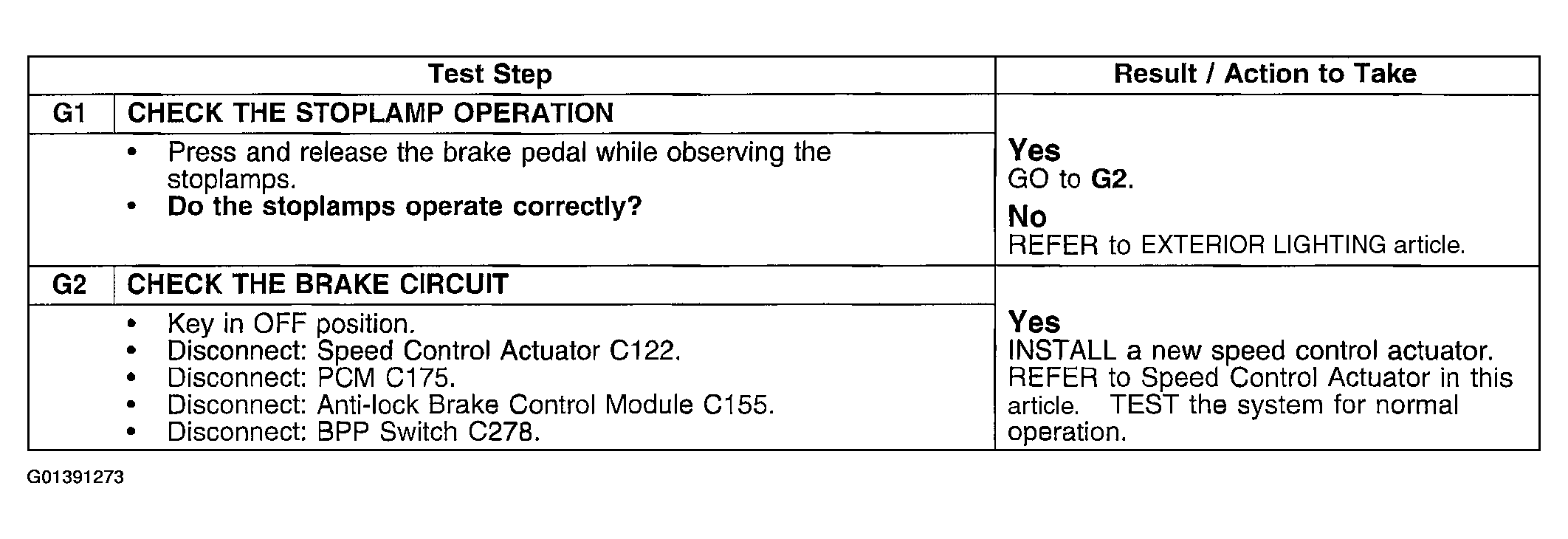

Fig 1: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Steps G1-G2)

Courtesy of FORD MOTOR CO.

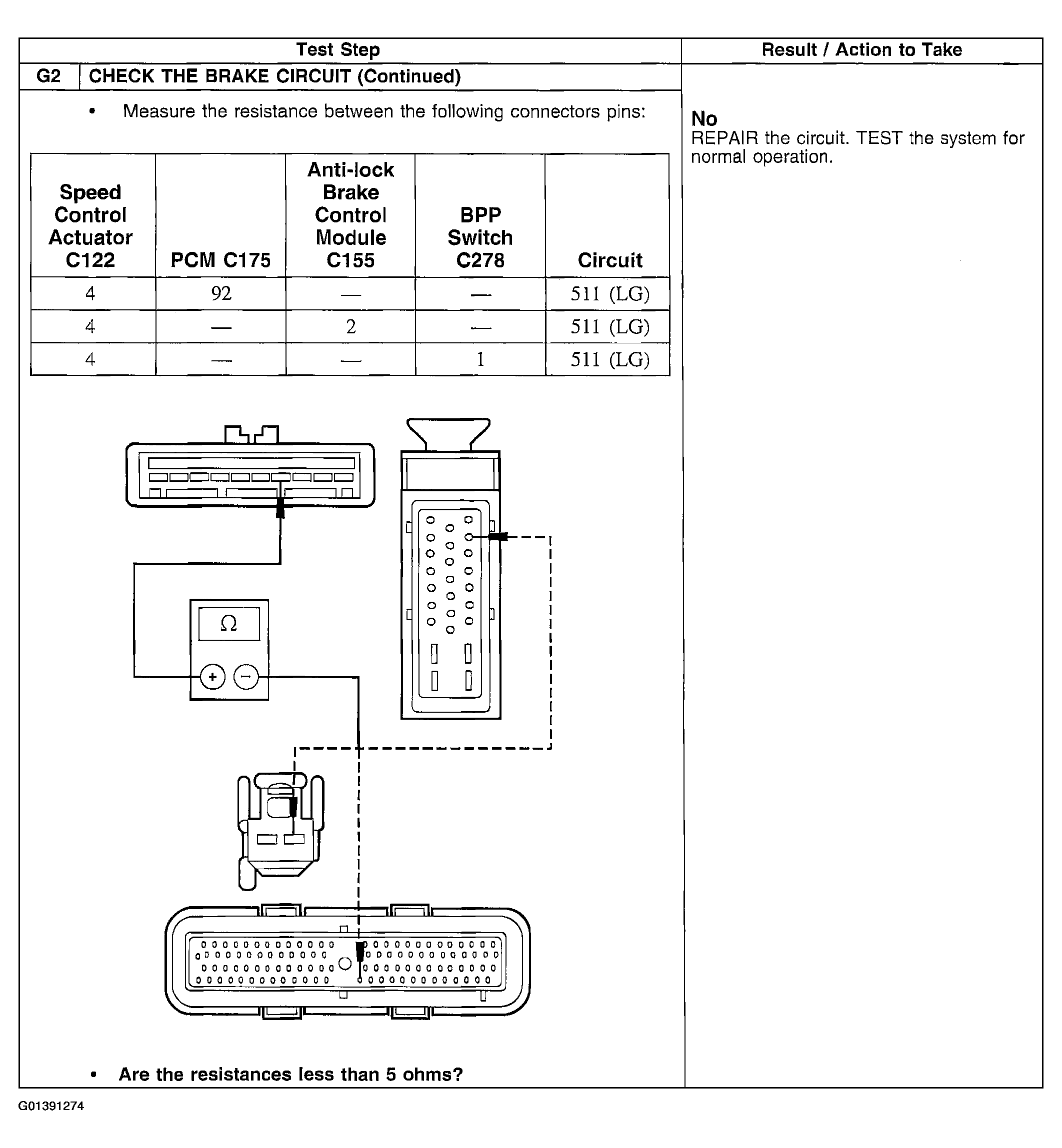

Fig 2: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Steps G2 Cont.)

Courtesy of FORD MOTOR CO.
