Front Electronic Module (FEM)-C201a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Electronic Module - C201a Connector

Courtesy of FORD MOTOR CO.

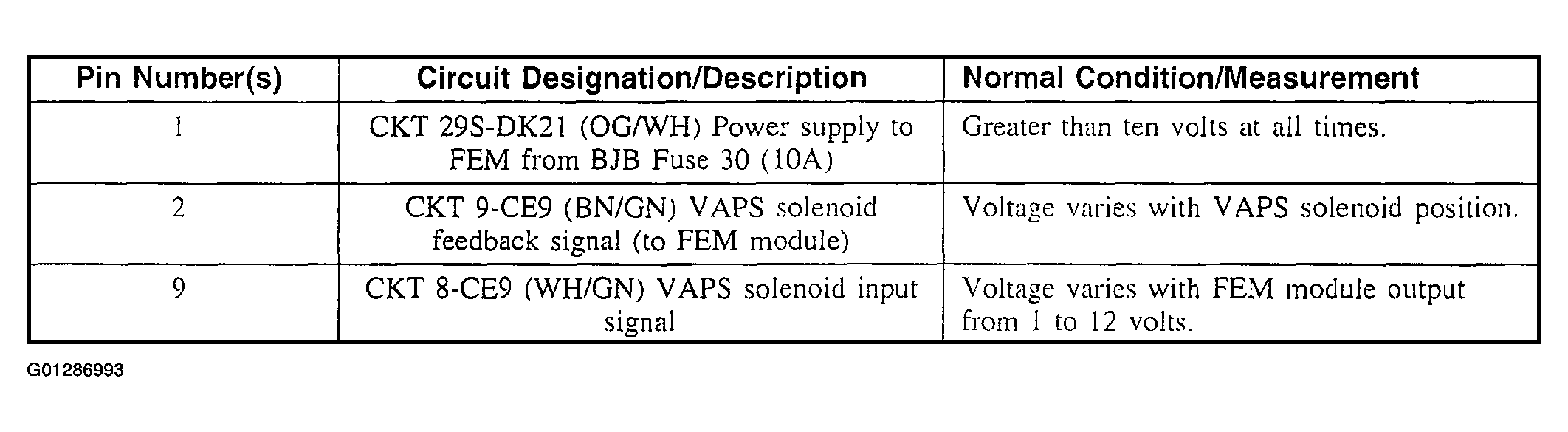

Fig 2: Front Electronic Module C201a - Circuit Description Chart

Courtesy of FORD MOTOR CO.
