Section 15 (Engine - 5.4L 2V): Removal: Engine: Removal

WARNING: This page is about a different variant/trim than selected.

All vehicles

  1. Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
  2. Discharge and recover the air conditioning system. Refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION .
  3. Remove the radiator grille supports. Refer to FRONT END BODY PANELS .
  4. Remove the A/C condenser core (19712). Refer to AIR CONDITIONING .
  5. Remove the radiator (8005), fan shroud (8146) and engine cooling fan. Refer to ENGINE COOLING .
  6. Disconnect the 42-pin and the 16-pin connectors and remove the nut and the harness mounting bracket.

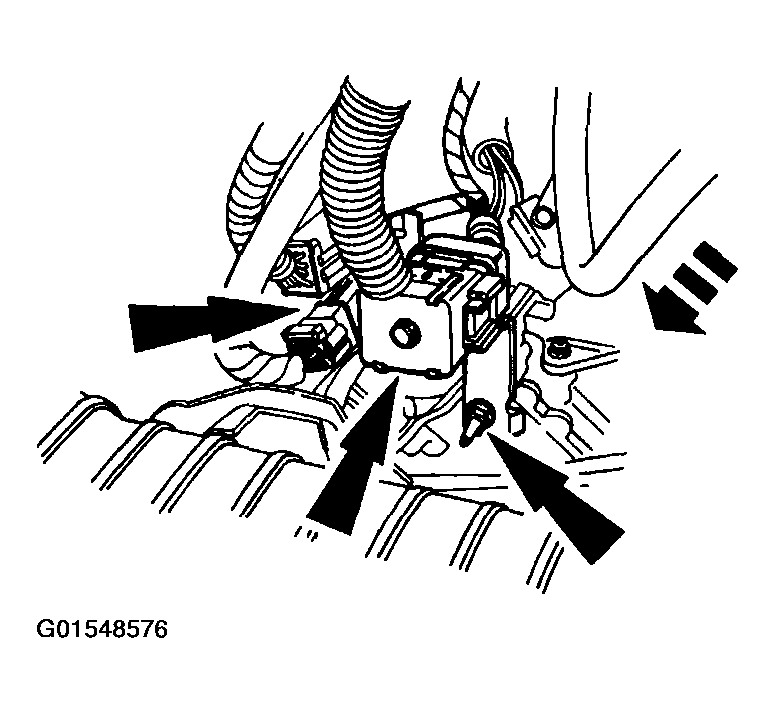

    Fig 1: Removing Nut And Harness Mounting Bracket
    G01548576Courtesy of FORD MOTOR CO.
  7. Remove the intake manifold (9424). Refer to Intake Manifold .
  8. At the oil cooler water inlet, disconnect and set aside the lower radiator hose (8286).

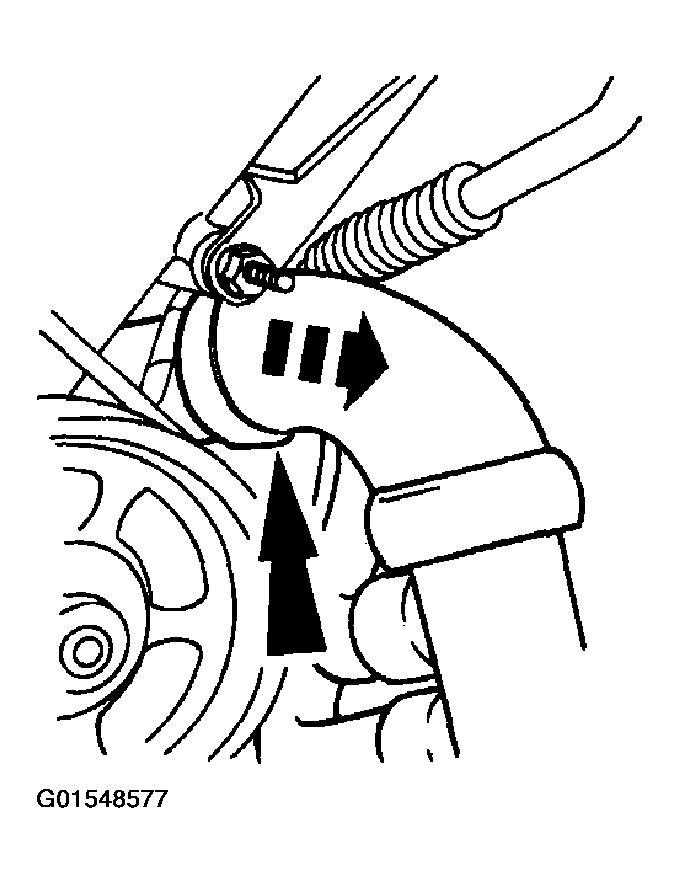

    Fig 2: Disconnecting And Seating Aside Lower Radiator Hose
    G01548577Courtesy of FORD MOTOR CO.
  9. Remove the bolts and position the power steering pump aside.
    Fig 3: Removing Bolts

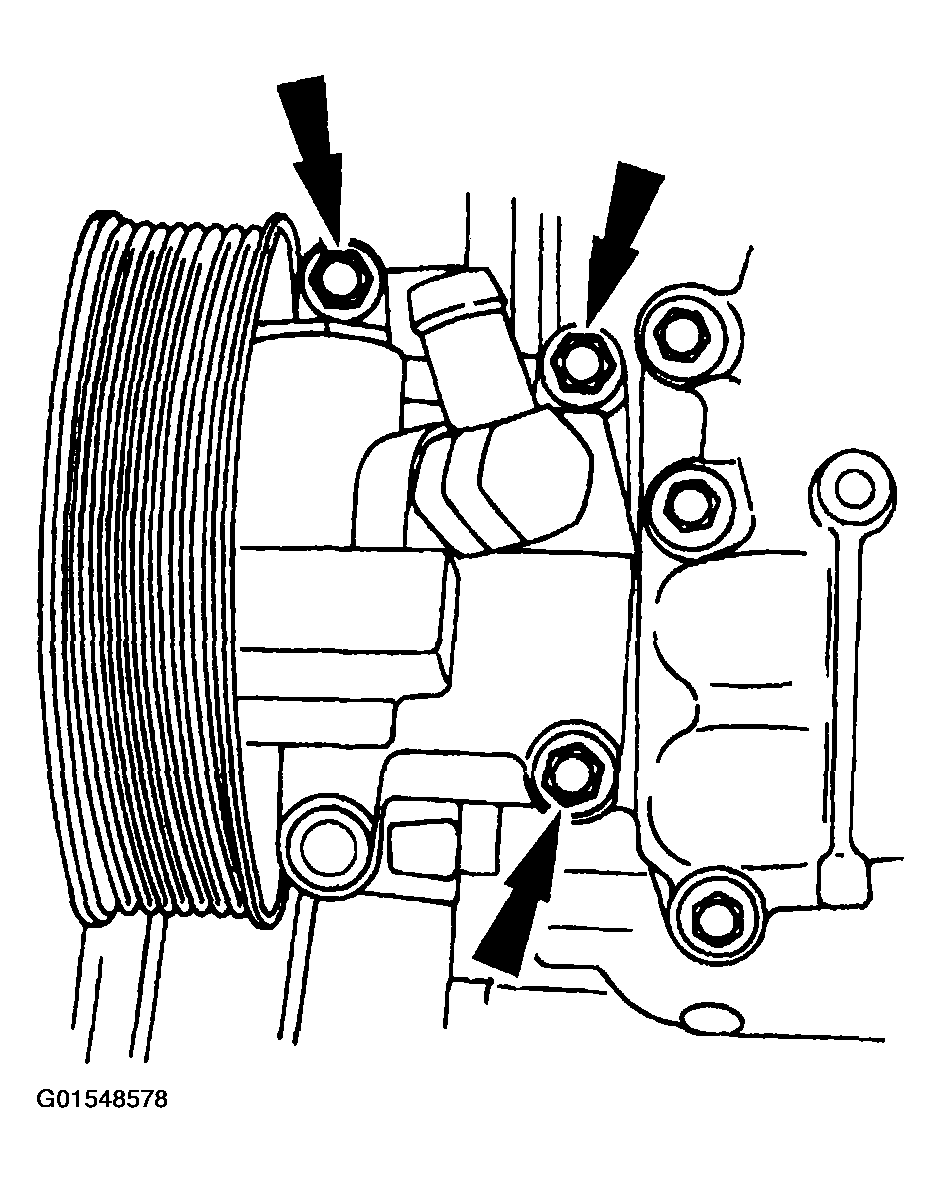

    G01548578Courtesy of FORD MOTOR CO.
  10. Disconnect the connector and position the harness aside.

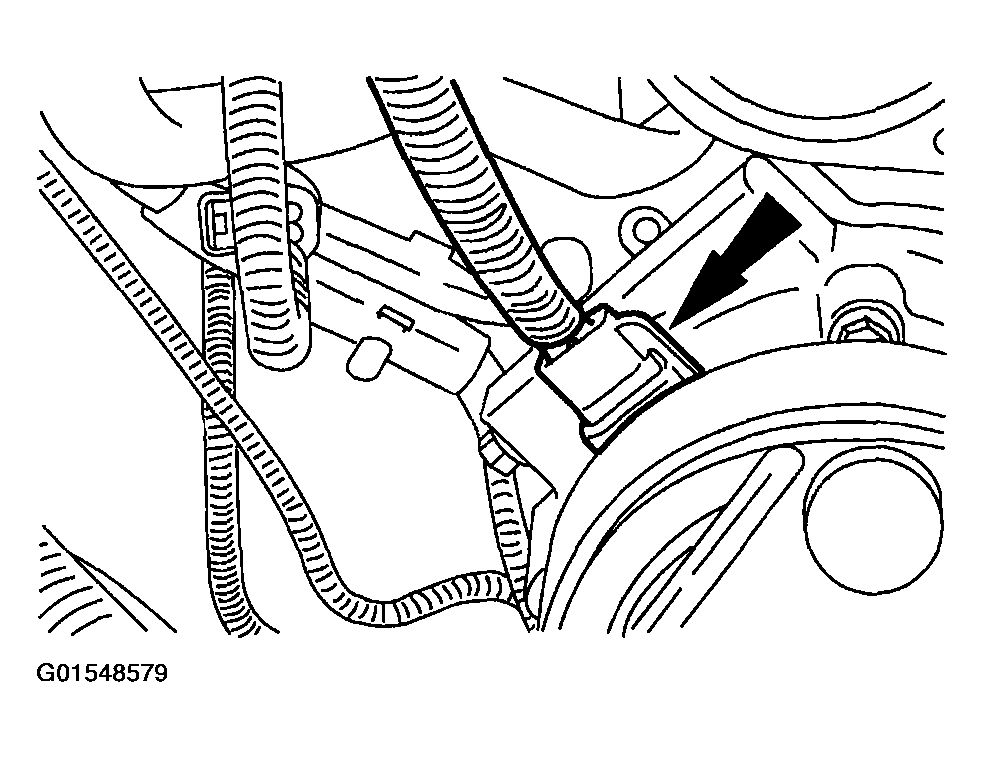

    Fig 4: Disconnecting Connector
    G01548579Courtesy of FORD MOTOR CO.
  11. Disconnect the A/C cycling switch, remove the harness from the studs and position aside.

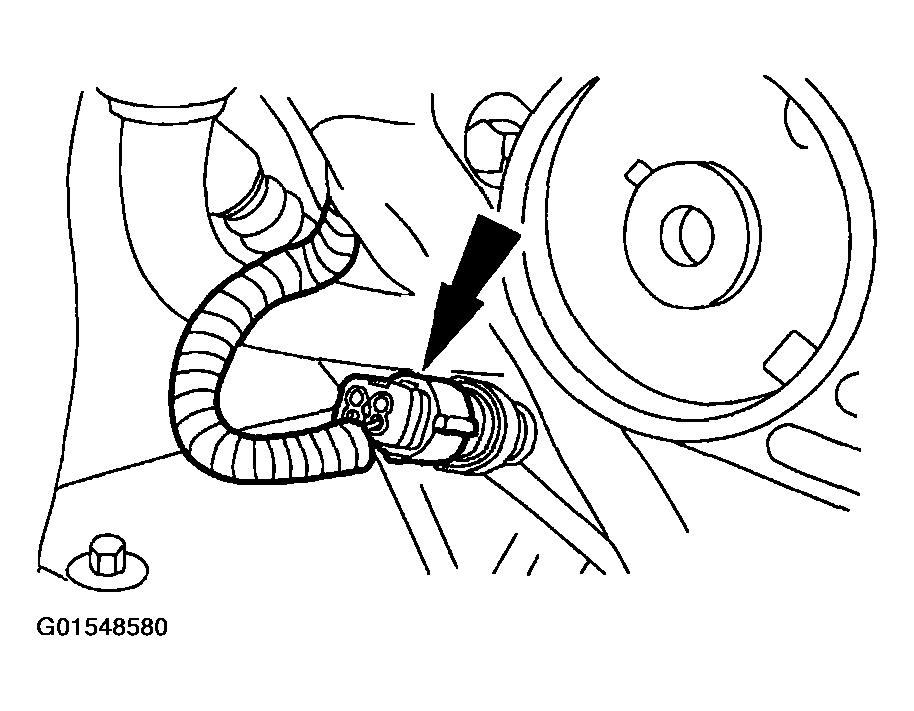

    Fig 5: Disconnecting A/C Cycling Switch
    G01548580Courtesy of FORD MOTOR CO.
  12. Disconnect the suction hose at the accumulator.

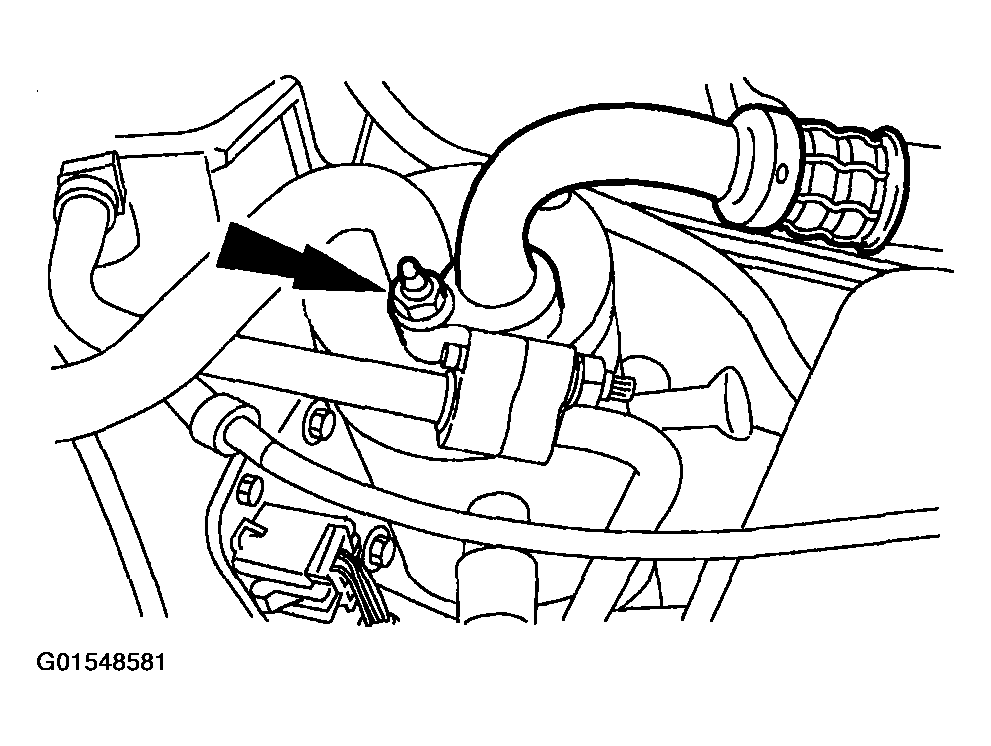

    Fig 6: Disconnecting Suction Hose At Accumulator
    G01548581Courtesy of FORD MOTOR CO.
  13. Disconnect the heater hose.

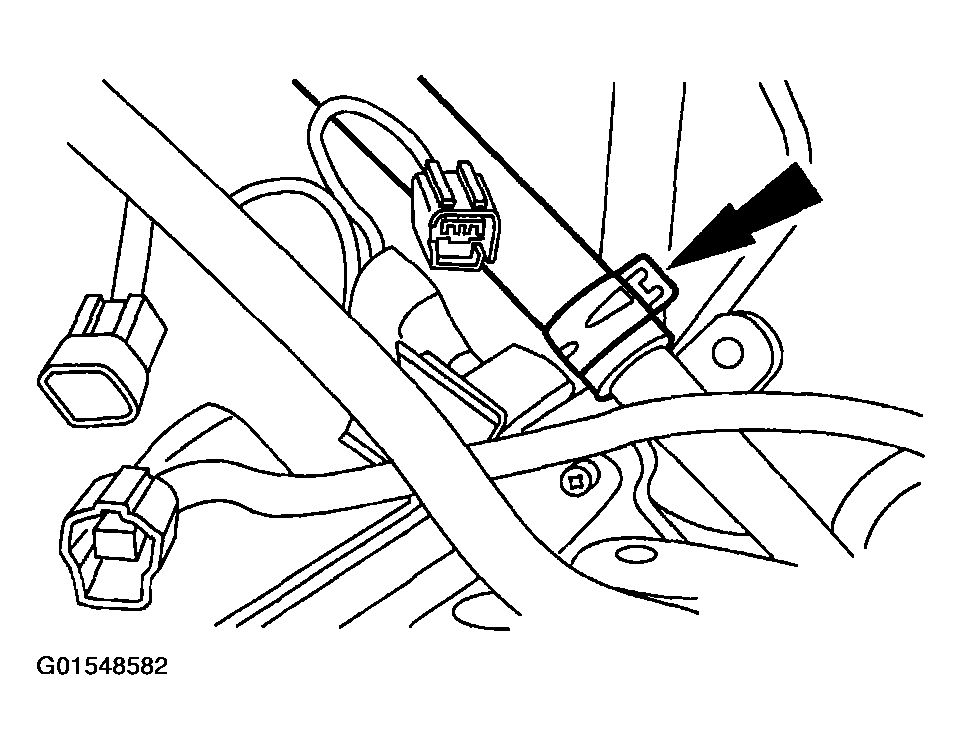

    Fig 7: Disconnecting Heater Hose
    G01548582Courtesy of FORD MOTOR CO.
  14. Disconnect the left and right heated exhaust gas oxygen sensor connectors.

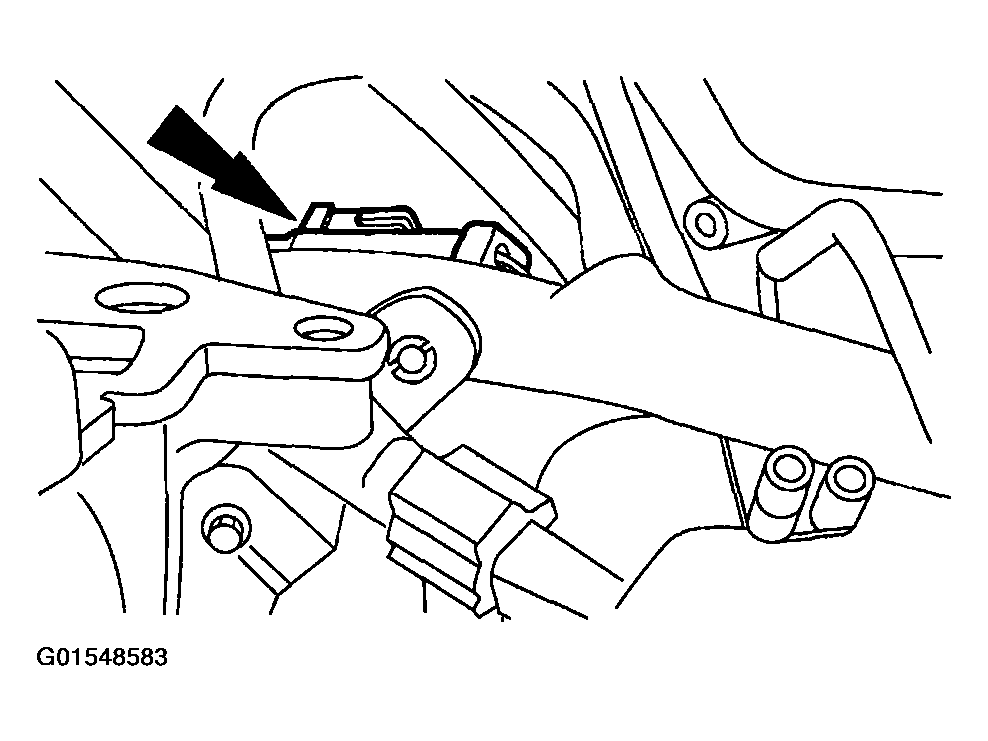

    Fig 8: Disconnecting Left And Right Heated Exhaust Gas Oxygen Sensor Connectors
    G01548583Courtesy of FORD MOTOR CO.
  15. Remove the A/C compressor. Refer to AIR CONDITIONING .
  16. Raise and support the vehicle.
  17. Remove the nuts.
    Fig 9: Removing Nuts
    G01548584Courtesy of FORD MOTOR CO.

    Manual transmission vehicles

  18. Remove the transmission and clutch. Refer to CLUTCH .

    All vehicles

  19. Drain the engine oil and remove the oil bypass filter (6714).
  20. Loosen the threaded shaft and position the oil cooler (6A642) aside.

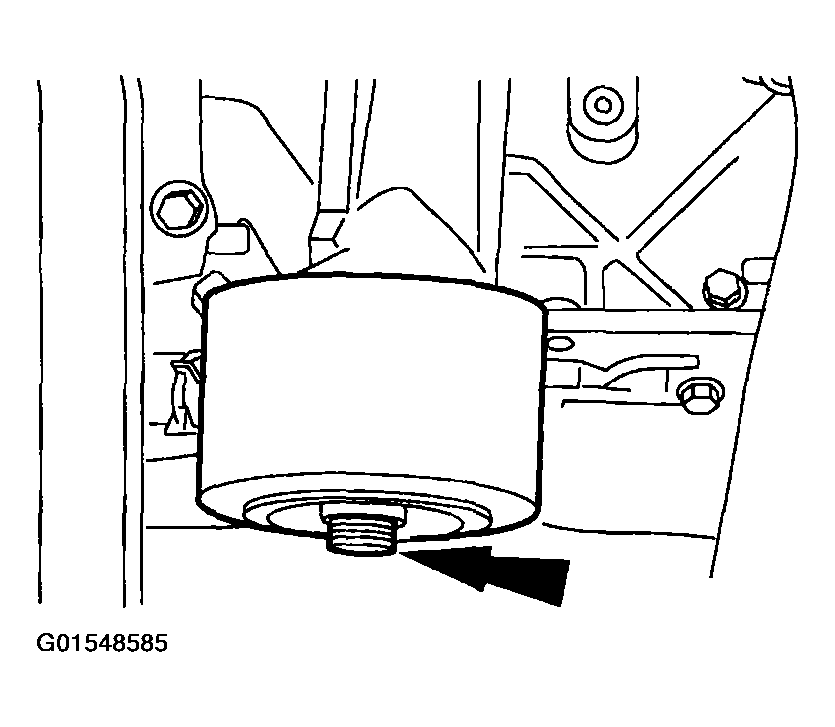

    Fig 10: Loosening Threaded Shaft And Positioning Oil Cooler
    G01548585Courtesy of FORD MOTOR CO.

    Automatic transmission vehicles

  21. Remove the starter motor (11002). Refer to STARTERS .
  22. Remove the nuts and position the transmission oil cooler lines and bracket aside.

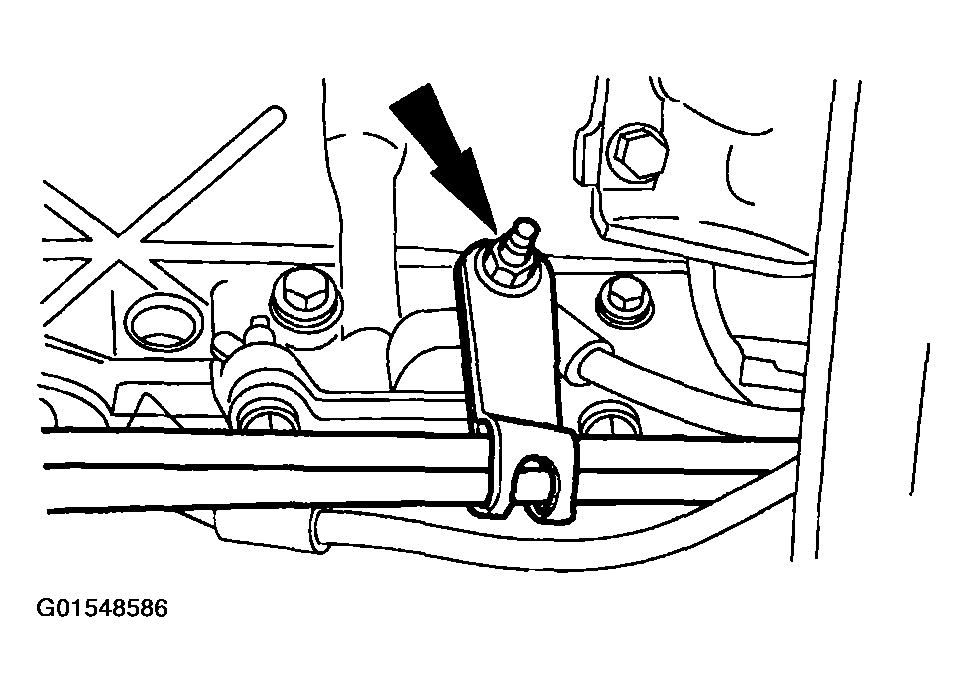

    Fig 11: Removing Nuts
    G01548586Courtesy of FORD MOTOR CO.

    All vehicles

  23. Remove the stud bolt and position the ground strap aside.

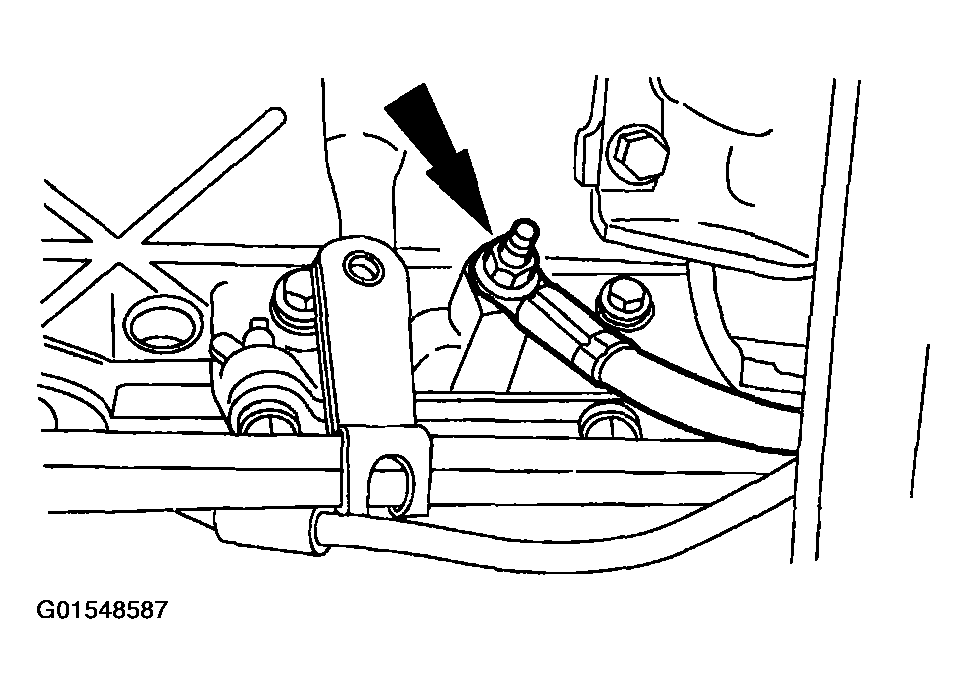

    Fig 12: Removing Stud Bolt
    G01548587Courtesy of FORD MOTOR CO.
  24. Remove the nut and position the wiring bracket aside.

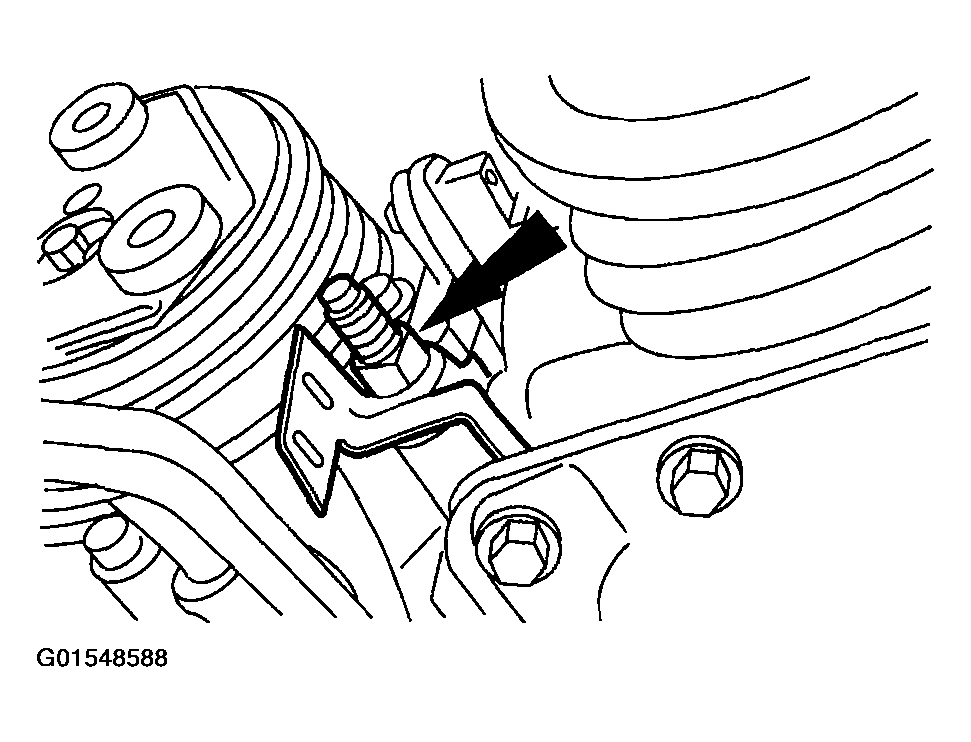

    Fig 13: Removing Nut
    G01548588Courtesy of FORD MOTOR CO.

    Automatic transmission vehicles

  25. Remove the flywheel inspection cover.
  26. Remove the access plug.

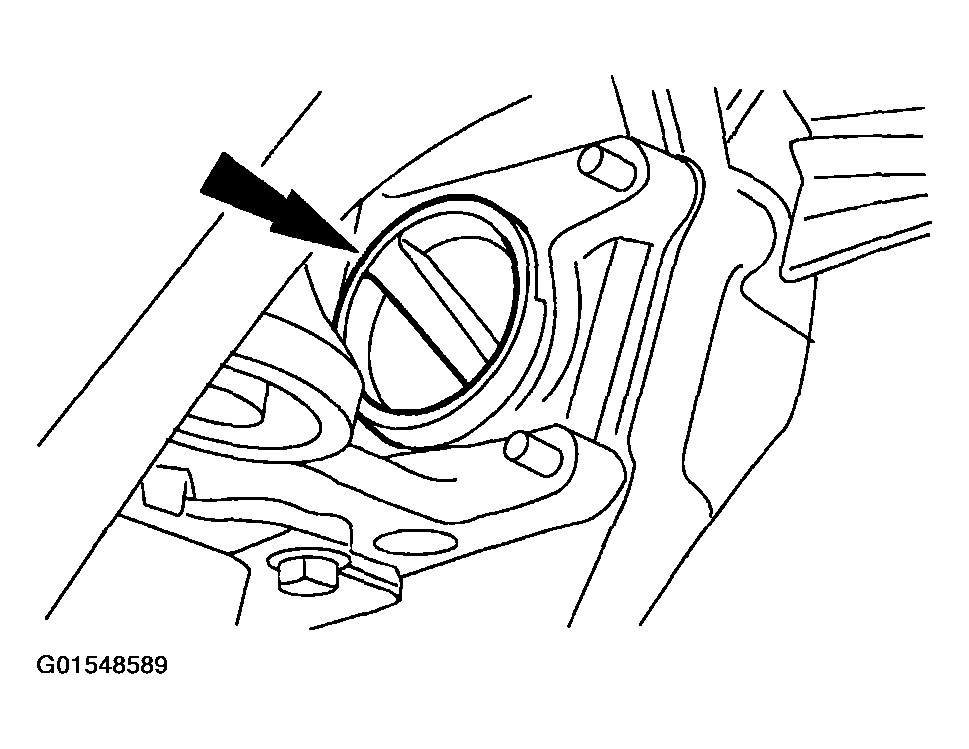

    Fig 14: Removing Flywheel Inspection Cover
    G01548589Courtesy of FORD MOTOR CO.
  27. Remove and discard the four torque converter nuts.

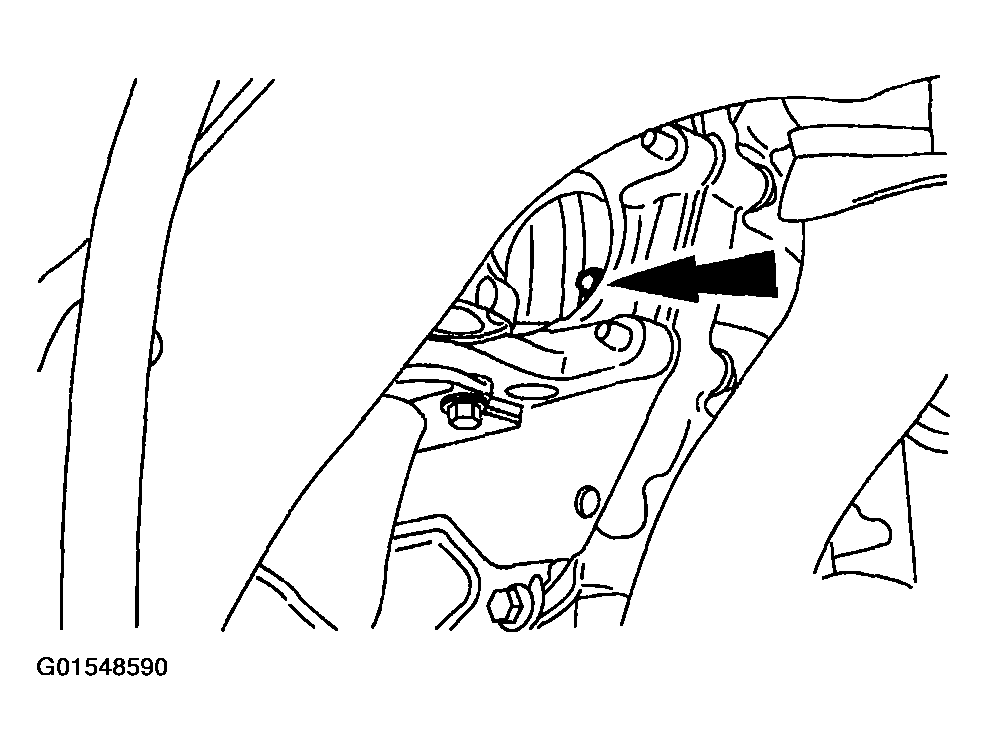

    Fig 15: Removing And Discarding Torque Converter Nuts
    G01548590Courtesy of FORD MOTOR CO.
  28. Remove the four lower transmission to engine bolts.

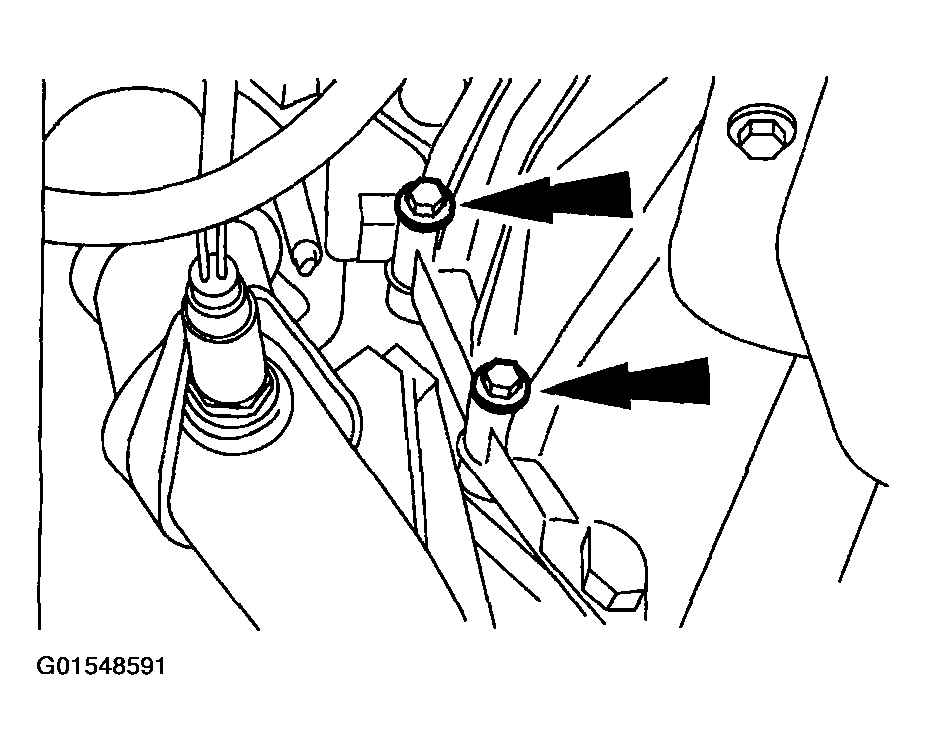

    Fig 16: Removing Lower Transmission To Engine Bolts
    G01548591Courtesy of FORD MOTOR CO.

    All vehicles

  29. Lower the vehicle.
  30. Remove the nut retaining the ground strap, and on automatic transmission equipped vehicles remove the transmission oil filler tube.
    Fig 17: Removing Transmission Oil Filler Tube
    G01548592Courtesy of FORD MOTOR CO.
  31. Remove the two studs and the heater water tube.

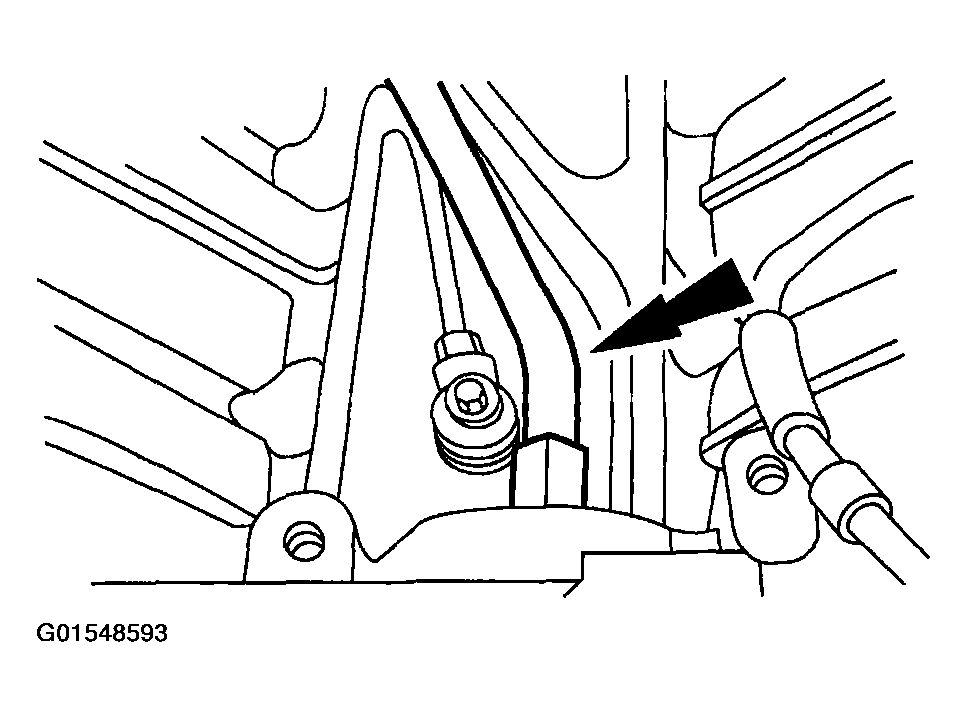

    Fig 18: Removing Two Studs And Heater Water Tube
    G01548593Courtesy of FORD MOTOR CO.

    Automatic transmission vehicles

  32. Remove the three upper transmission to engine bolts.

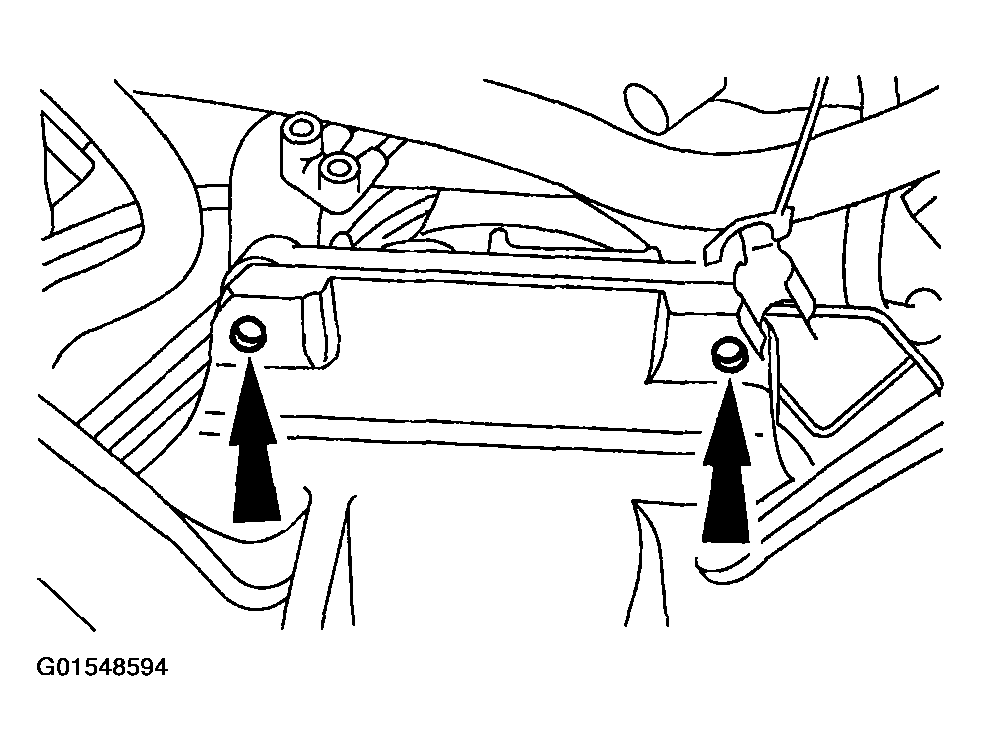

    Fig 19: Removing Upper Transmission To Engine Bolts
    G01548594Courtesy of FORD MOTOR CO.

    All vehicles

  33. Install the Modular Engine Lift Bracket and support the engine with a floor crane.

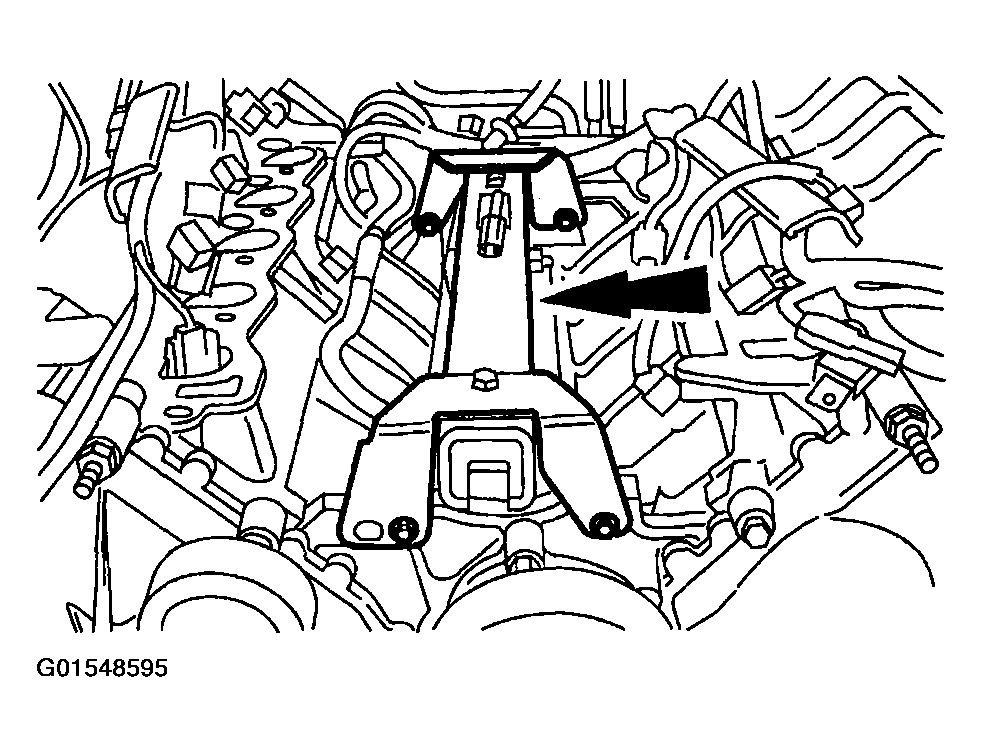

    Fig 20: Installing Modular Engine Lift Bracket And Support Engine With Floor Crane
    G01548595Courtesy of FORD MOTOR CO.
  34. Remove the engine support insulator nuts.

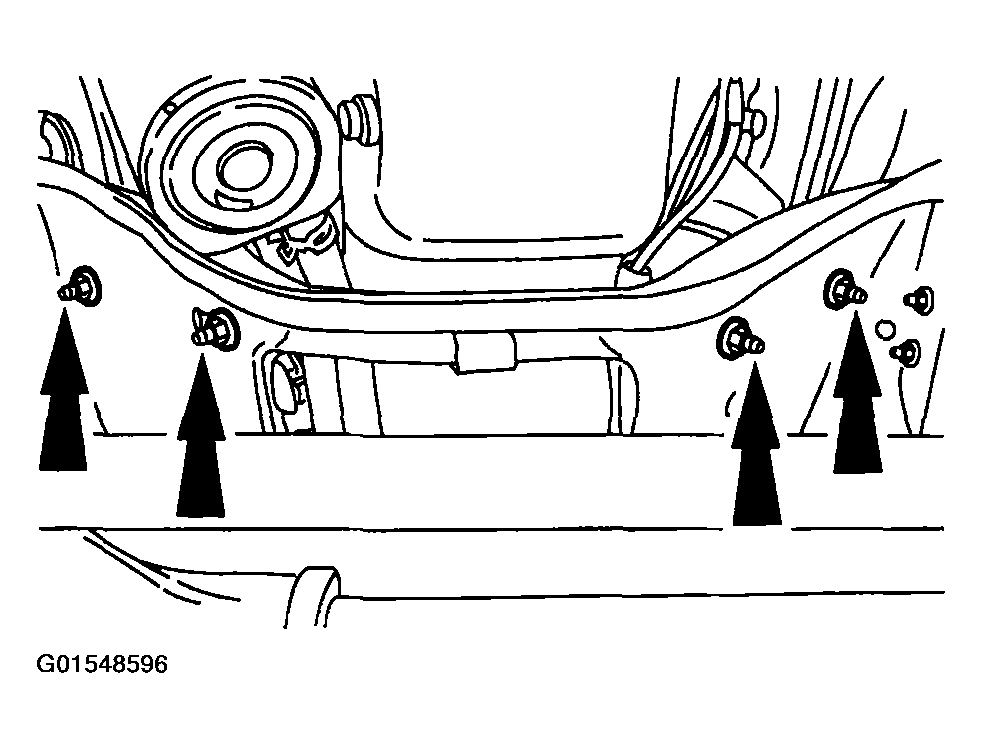

    Fig 21: Removing Engine Support Insulator Nuts
    G01548596Courtesy of FORD MOTOR CO.

    Automatic transmission vehicles

  35. Support the transmission with a jack.

    All vehicles

  36. Remove the engine from the vehicle.
