Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the four roof opening panel bolts.

Fig 1: Locating Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.
Close the roof opening panel.

NOTE: The correct position of the roof opening panel to the roof panel should be 0 to 1.5mm (0.059in) above the roof panel at the rear edge and -1.5mm (-0.059in) to 0 below the roof panel at the front edge of the panel.

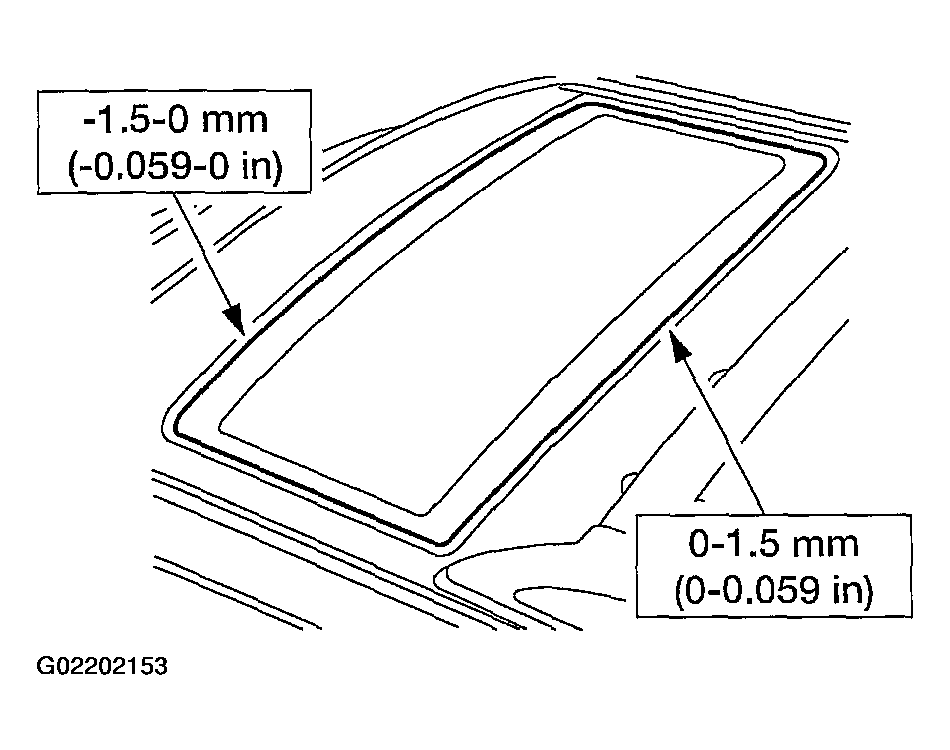

Fig 2: Locating Roof Opening Panel

Courtesy of FORD MOTOR CO.

Adjust the roof opening panel.
Tighten the roof opening panel bolts.

Fig 3: Tightening Roof Opening Panel Bolts
Courtesy of FORD MOTOR CO.
