EGR Monitor

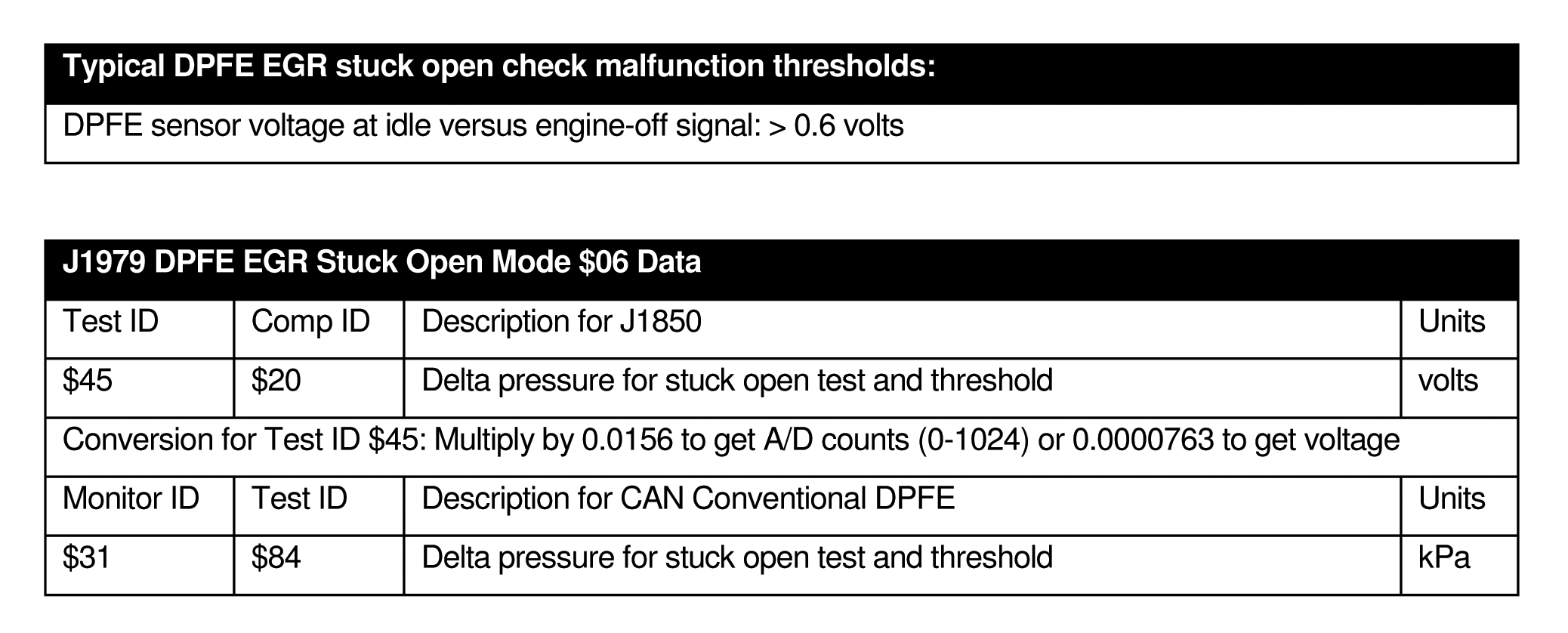

Fig 1: Mode $06 Data For EGR Stuck Open Monitor (DPFE)

Courtesy of FORD MOTOR CO.

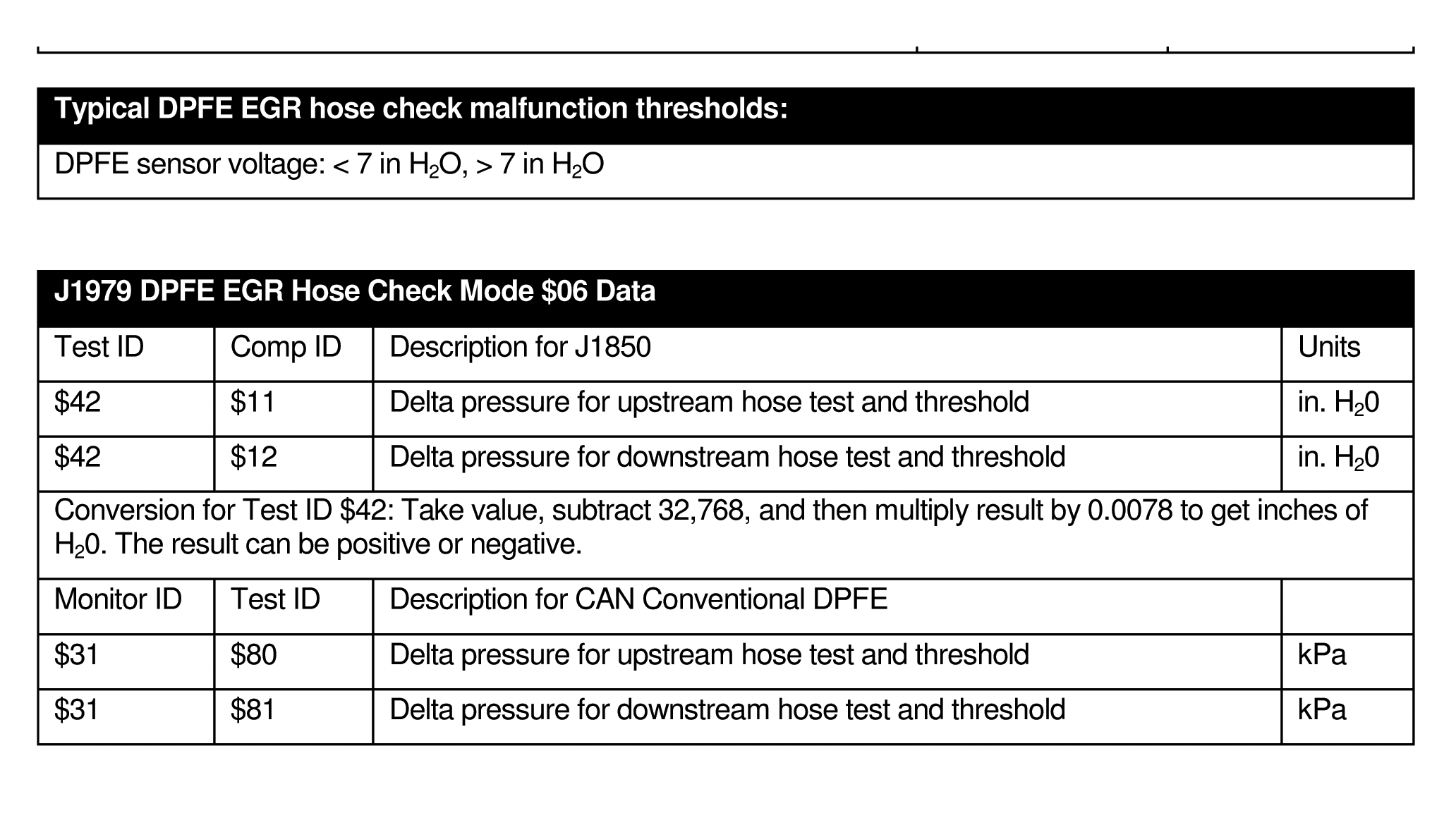

Fig 2: Mode $06 Data For EGR Hose Check Monitor (DPFE)

Courtesy of FORD MOTOR CO.

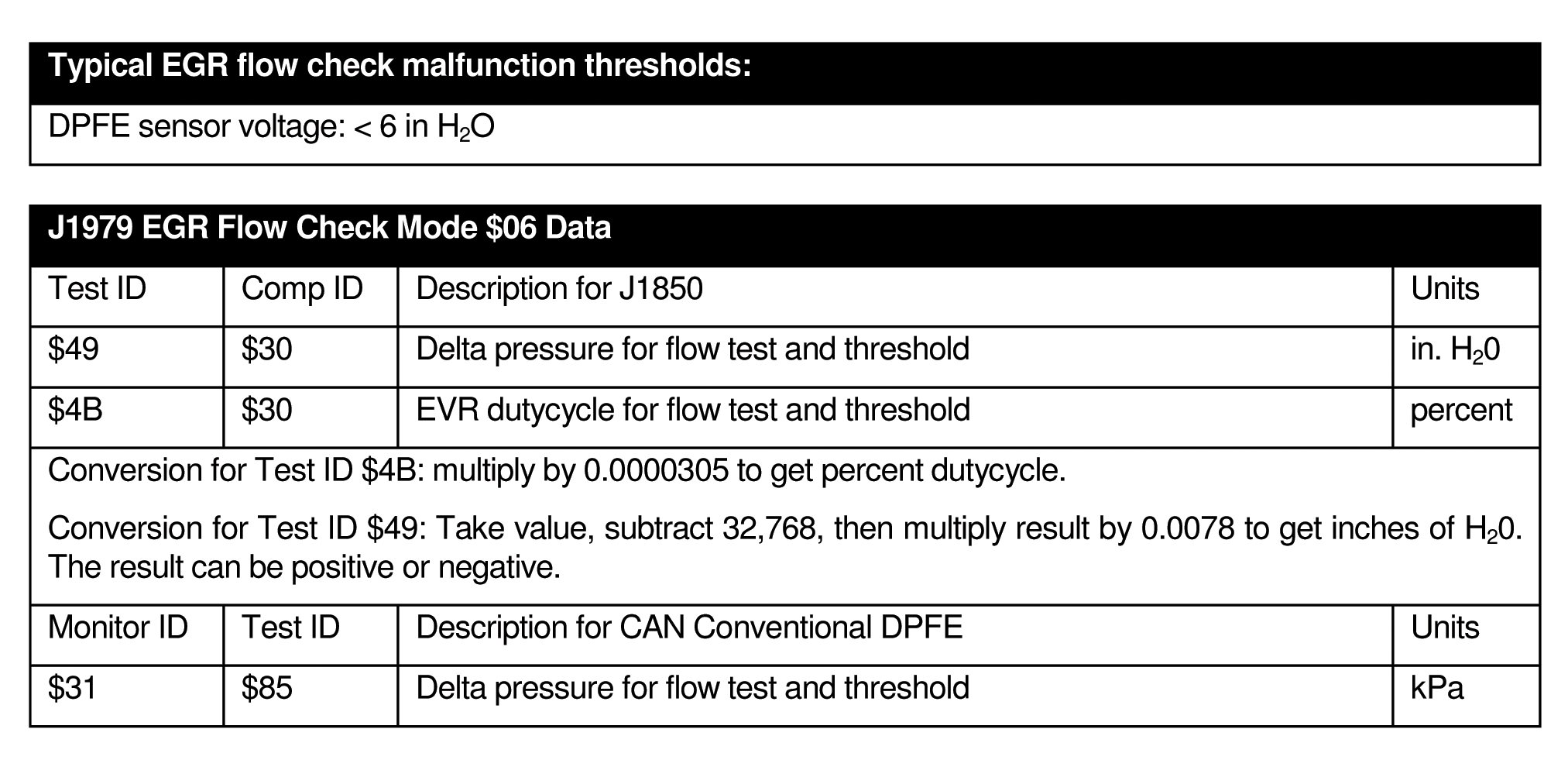

Fig 3: Mode $06 Data For EGR Flow Check Monitor (DPFE)

Courtesy of FORD MOTOR CO.

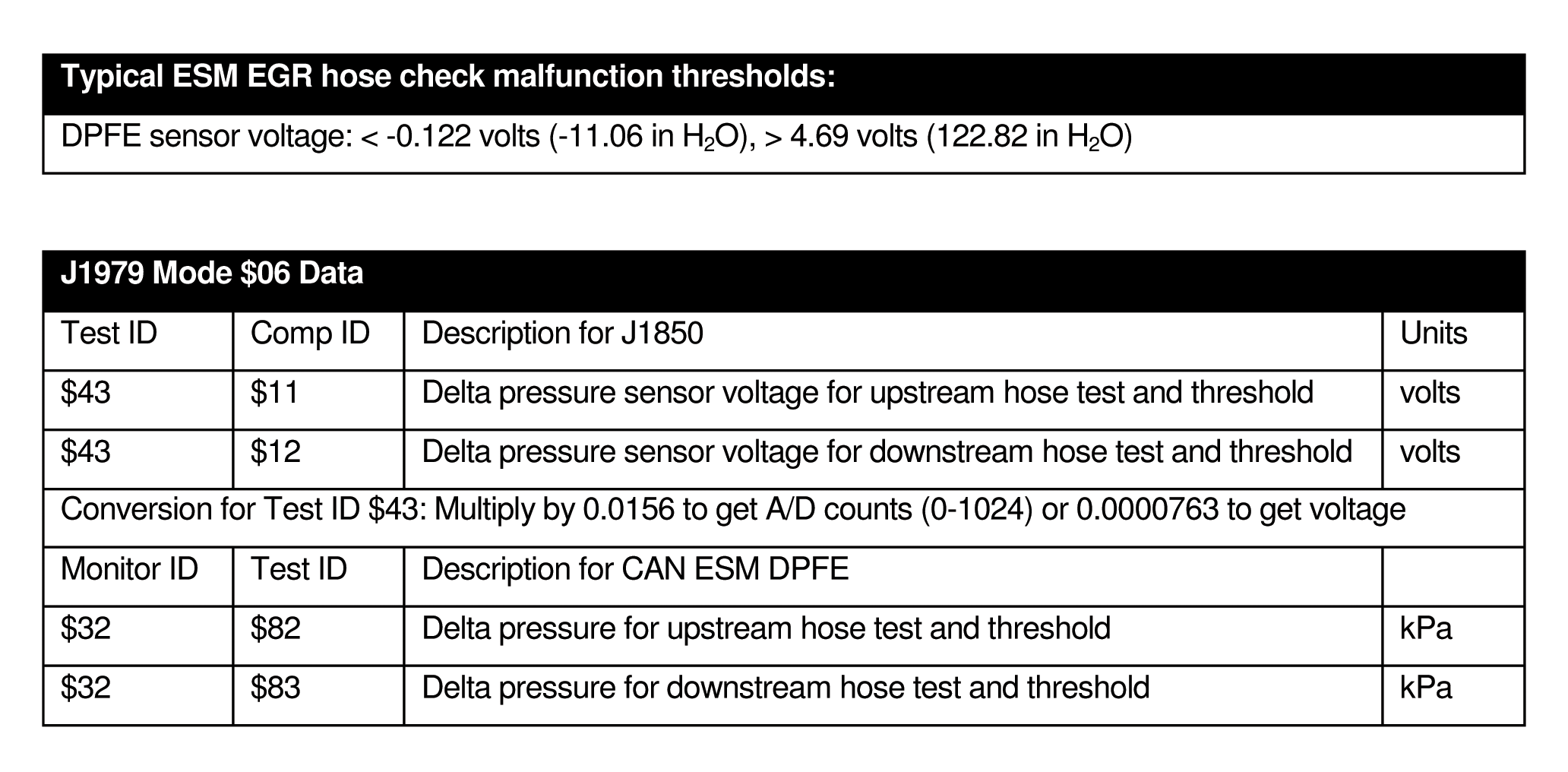

Fig 4: Mode $06 Data For EGR Hose Check Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

Fig 5: Mode $06 Data For EGR Stuck Open Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

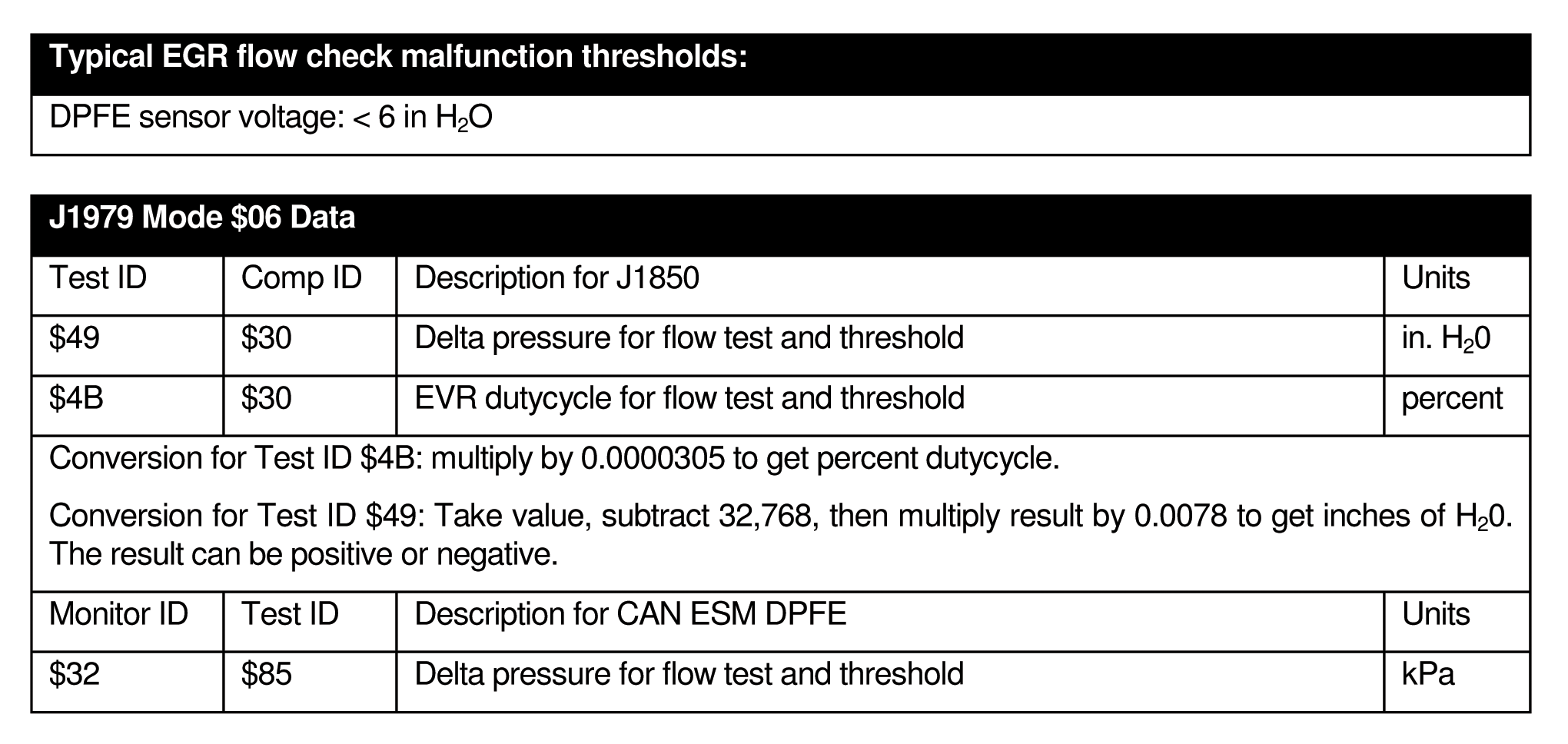

Fig 6: Mode $06 Data For EGR Flow Check Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

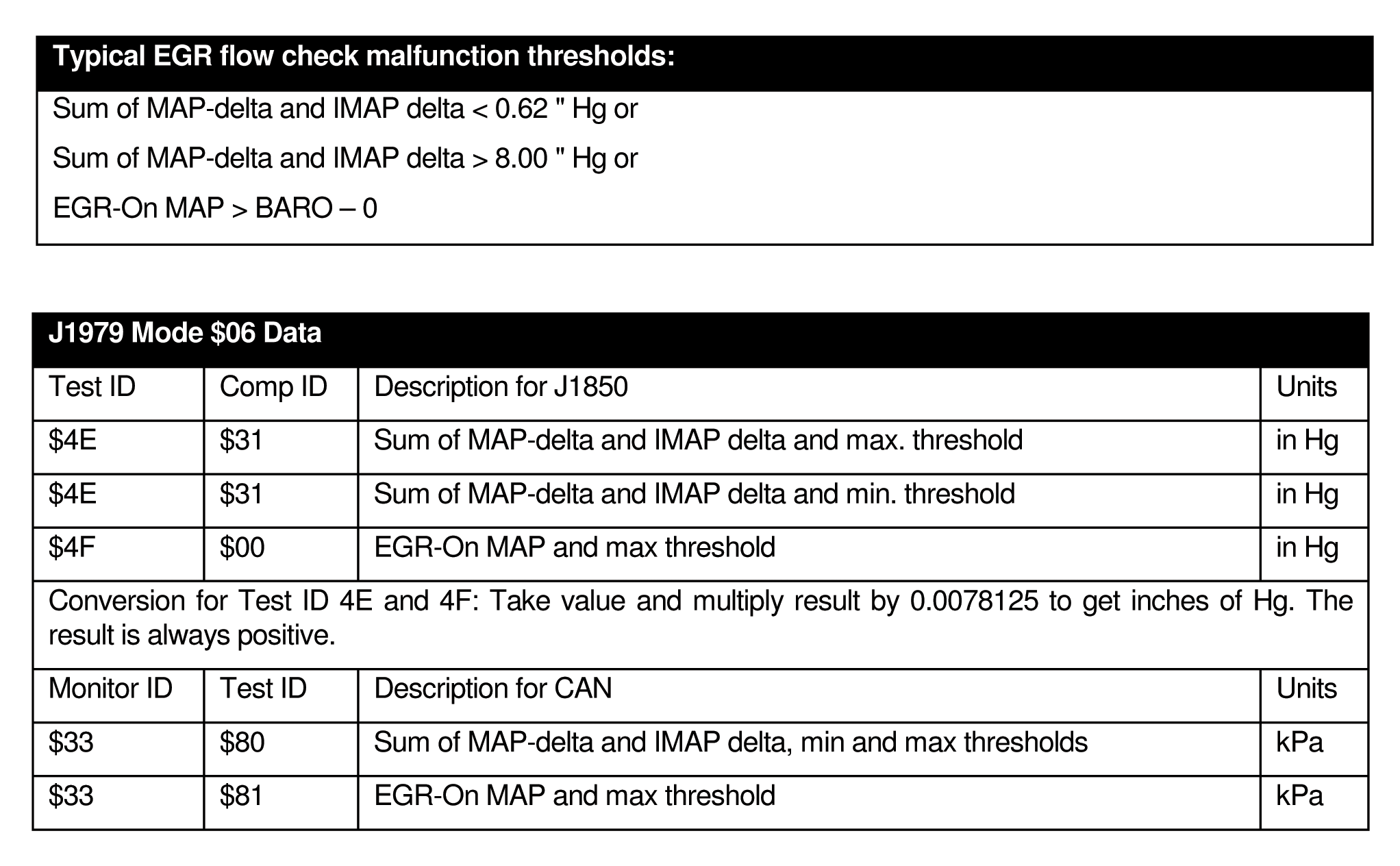

Fig 7: Mode $06 Data For EGR Flow Check Monitor (IMAP)

Courtesy of FORD MOTOR CO.
