Air Induction Systems: Turbocharger: Symptoms

For symptom diagnostics, see Fig 1 and Fig 2 .

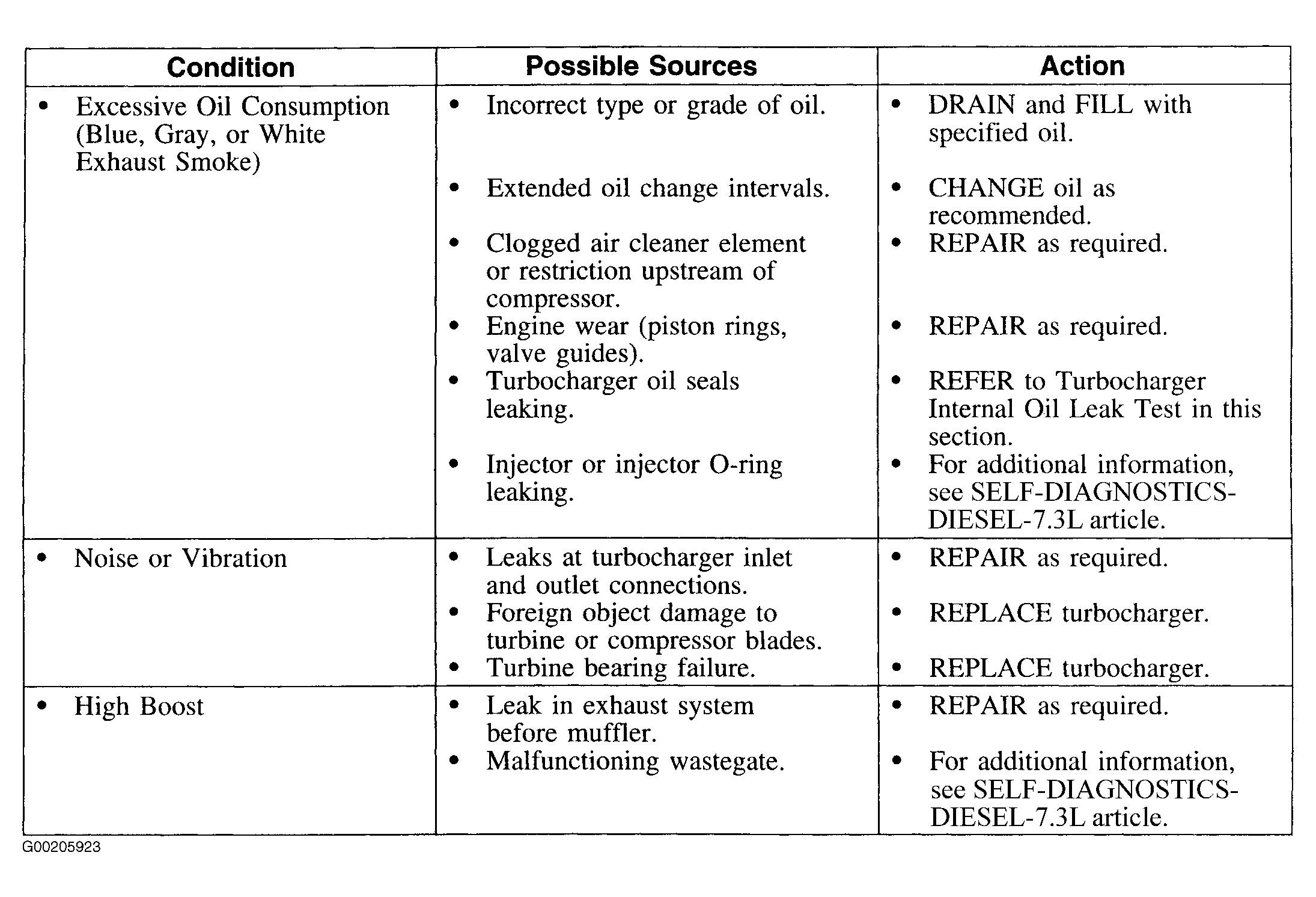

Fig 1: Symptom Charts (1 Of 2)

Courtesy of FORD MOTOR CO.

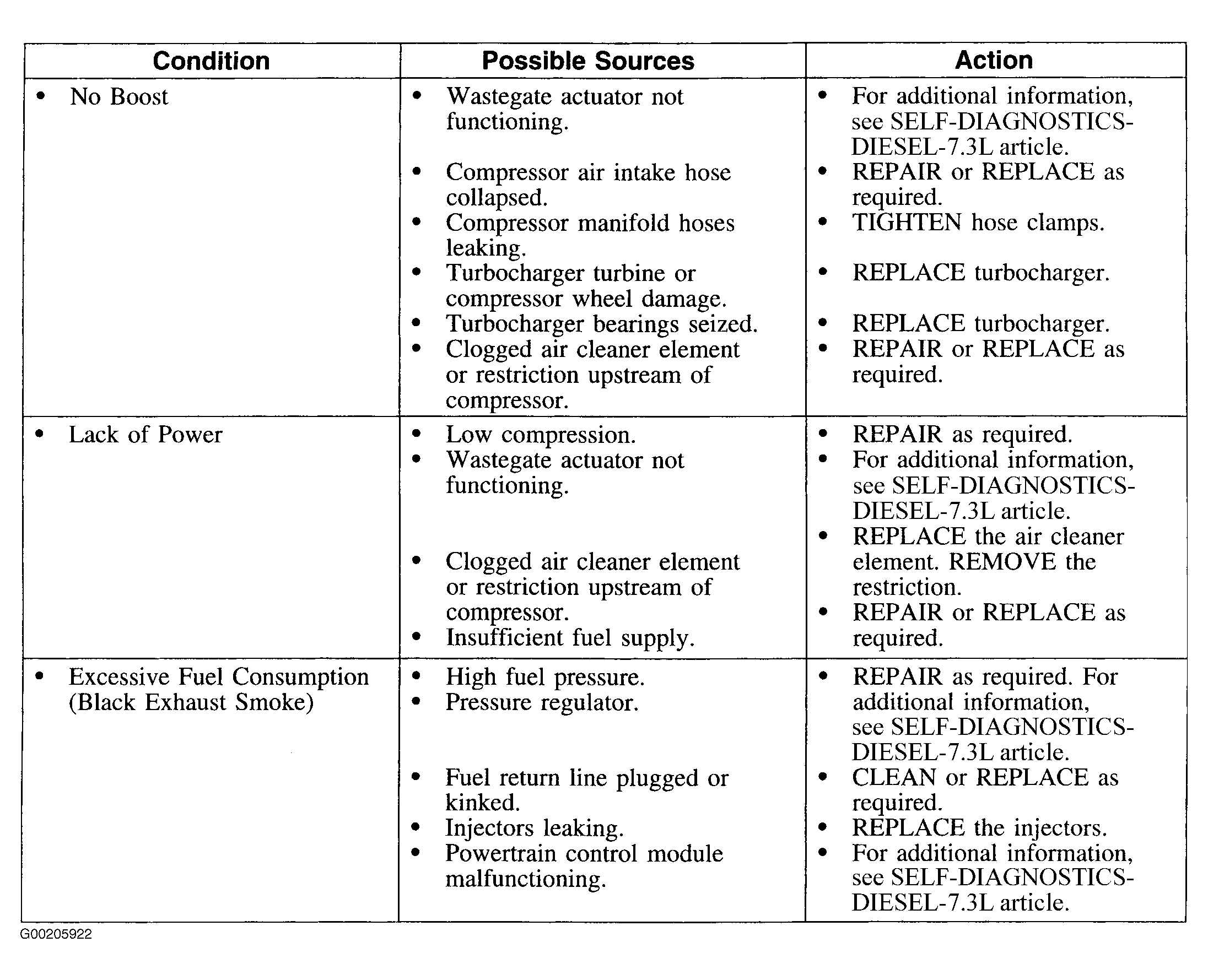

Fig 2: Symptom Charts (2 Of 2)

Courtesy of FORD MOTOR CO.
