Steering Wheel Rotation Sensor

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following illustration and table.

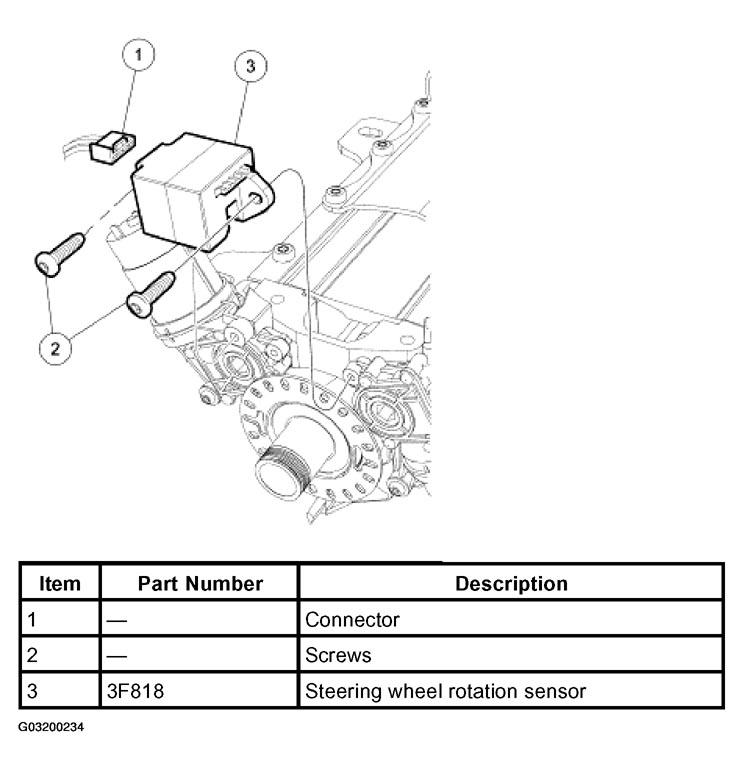

Fig 1: Removing Steering Wheel Rotation Sensor
Courtesy of FORD MOTOR CO.
