Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

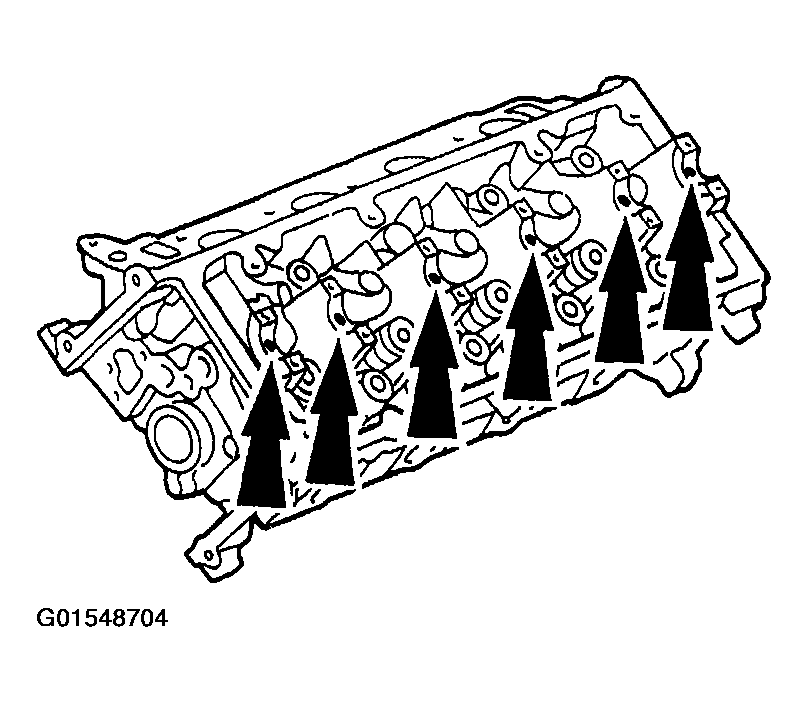

Lubricate the camshaft journals with clean engine oil.

Fig 1: Lubricating Camshaft Journals With Clean Engine Oil
Courtesy of FORD MOTOR CO.

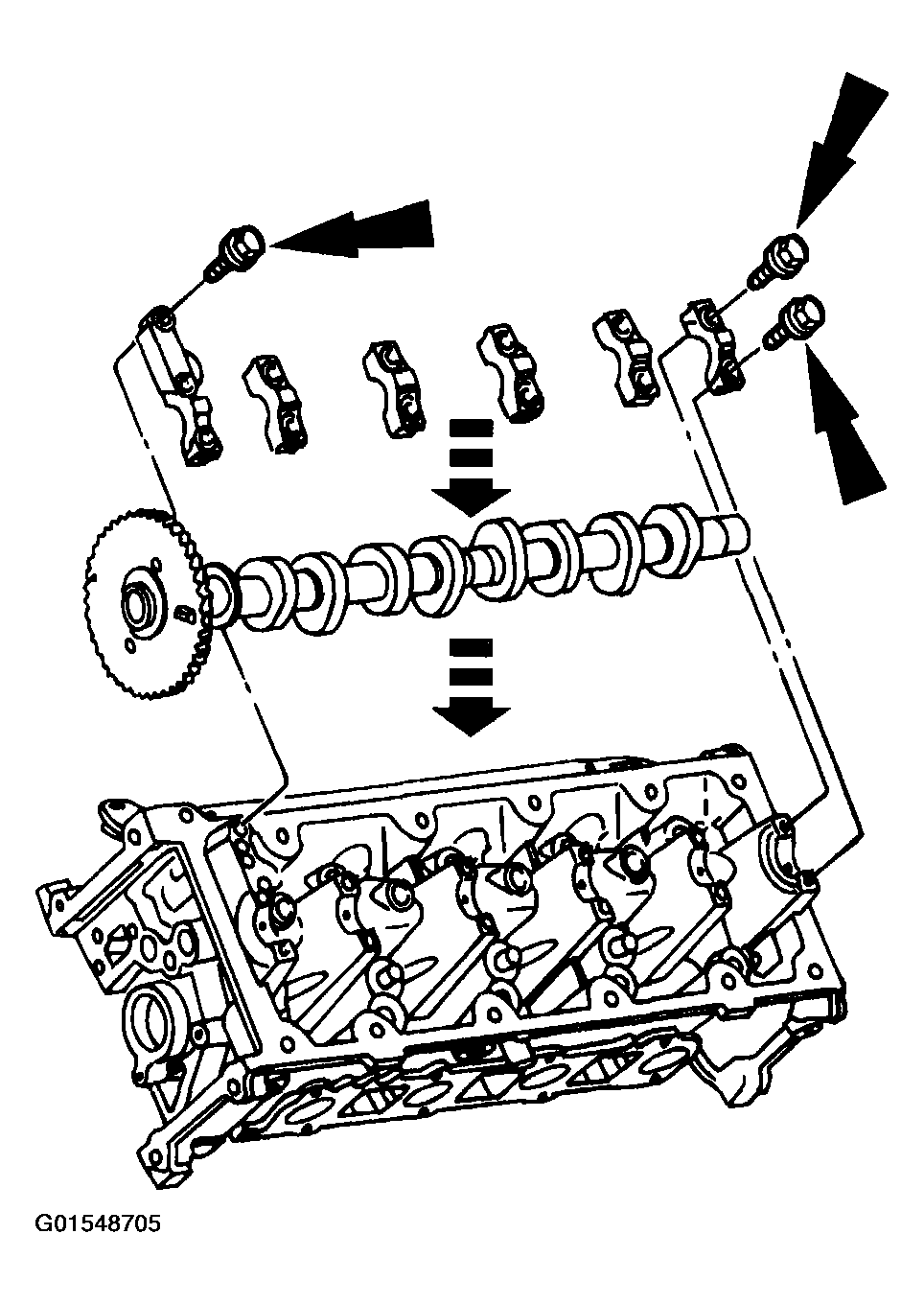

Install the camshaft and the camshaft bearing caps in their original locations.
- Lubricate the camshaft bearing caps with clean engine oil.
- Position the camshaft bearing caps.
- Install the bolts loosely.
Fig 2: Installing Camshaft And Camshaft Bearing Caps In Original Locations
Courtesy of FORD MOTOR CO.

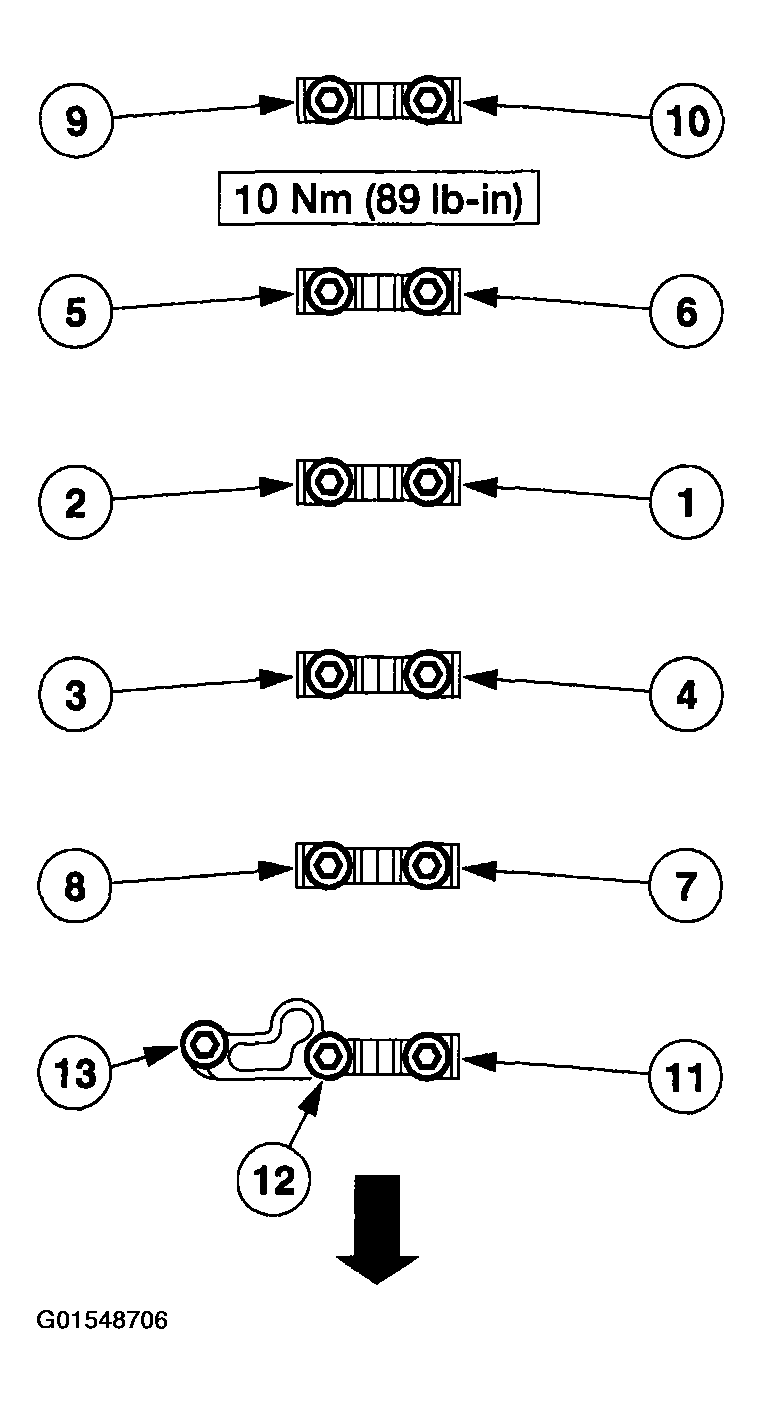

Tighten the bolts in the sequence shown.

Fig 3: Identifying Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the valve stems with clean engine oil.

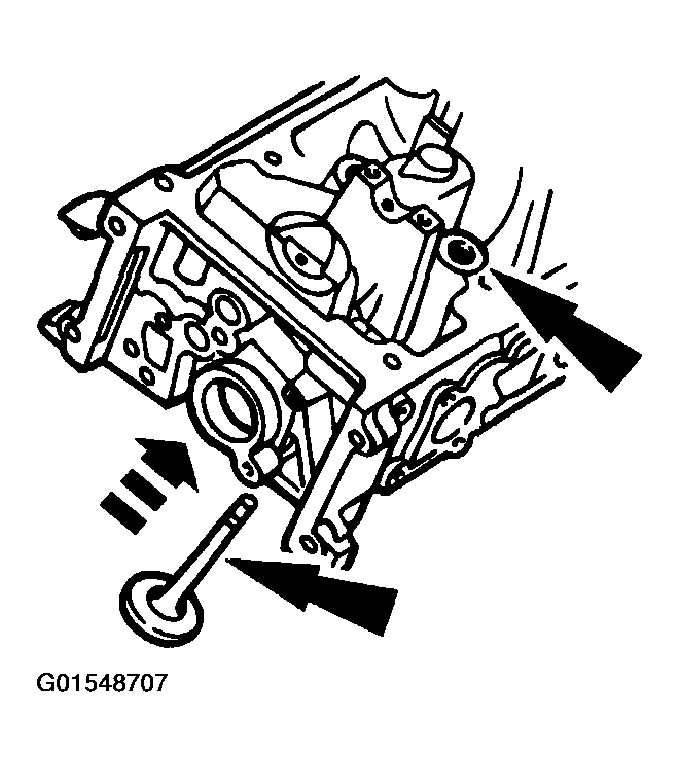

Fig 4: Installing Valves In Valve Guides

Courtesy of FORD MOTOR CO.

Install the valves in the valve guides located in the cylinder head.
Use the special tools to install the valve stem seals.

Fig 5: Installing Valve Stem Seals Using Special Tool
Courtesy of FORD MOTOR CO.

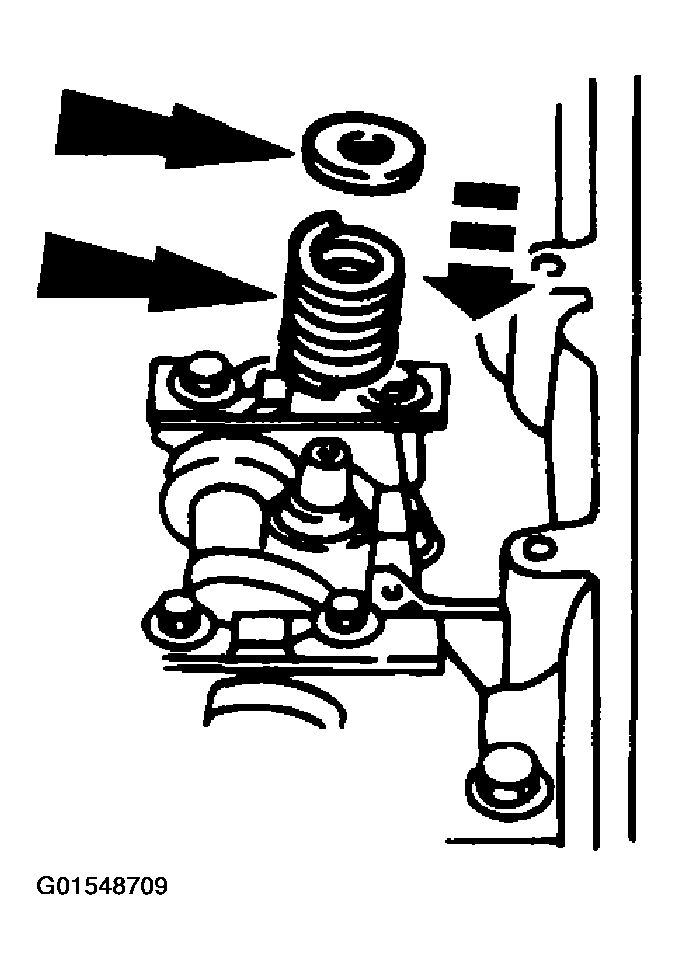

Install the valve springs and the valve spring retainers onto the valves.

Fig 6: Installing Valve Springs And Valve Spring Retainers Onto Valves
Courtesy of FORD MOTOR CO.

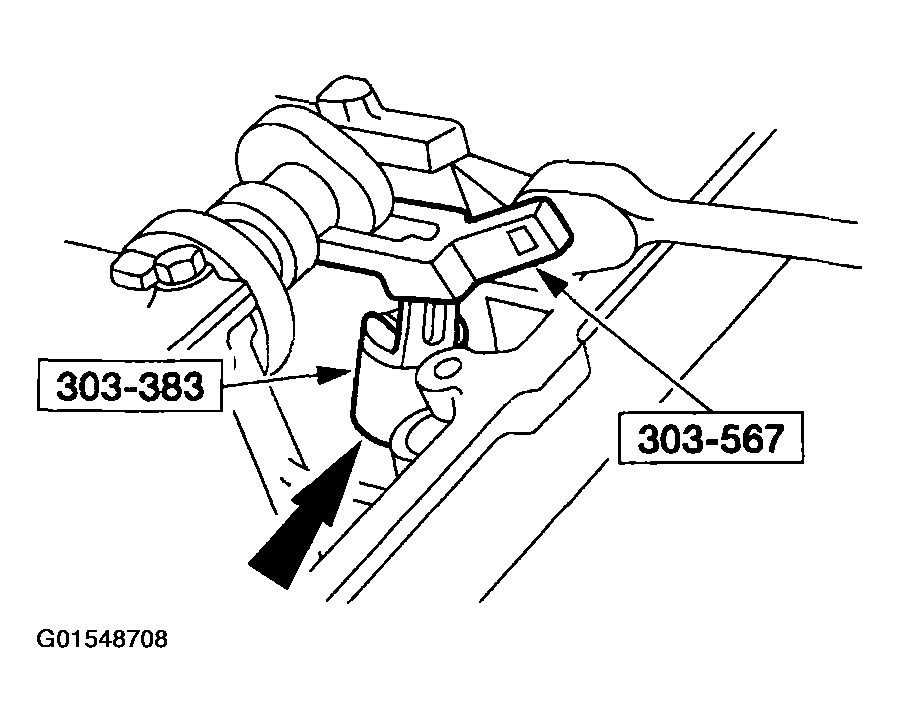

Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 7: Installing Special Tool Between Valve Spring Coils
Courtesy of FORD MOTOR CO.

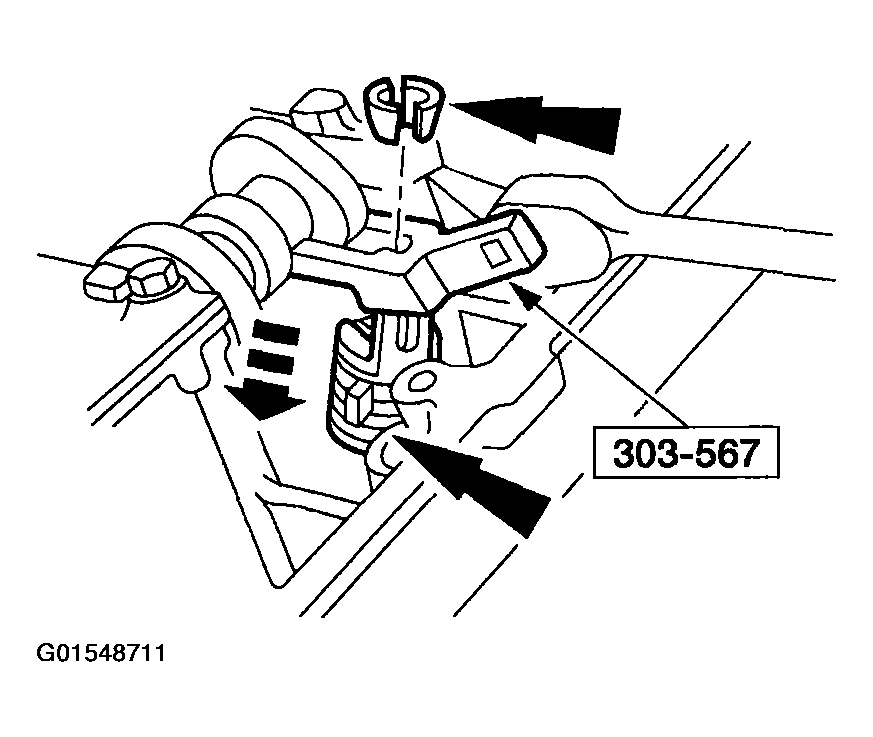

Use the special tool to compress the valve springs. Install the valve spring retainer keys.

Fig 8: Compressing Valve Springs Using Special Tool
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the hydraulic lash adjusters with clean engine oil.

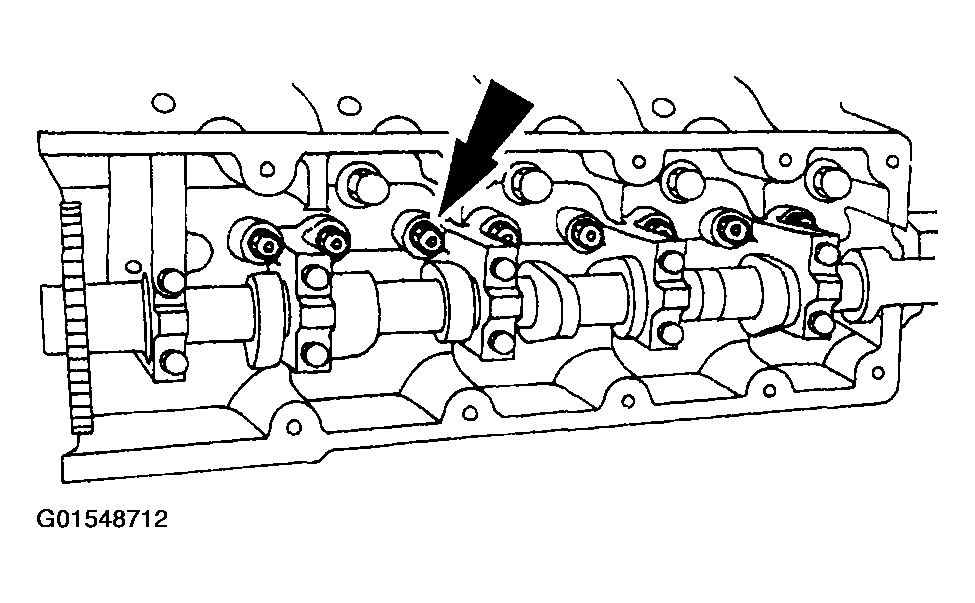

Fig 9: Installing Hydraulic Lash Adjusters In Original Locations

Courtesy of FORD MOTOR CO.

Install the hydraulic lash adjusters in their original locations.
Remove the special tool.

Fig 10: Removing Special Tool
Courtesy of FORD MOTOR CO.
