Valve Springs: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the valve spring and the valve spring retainers.

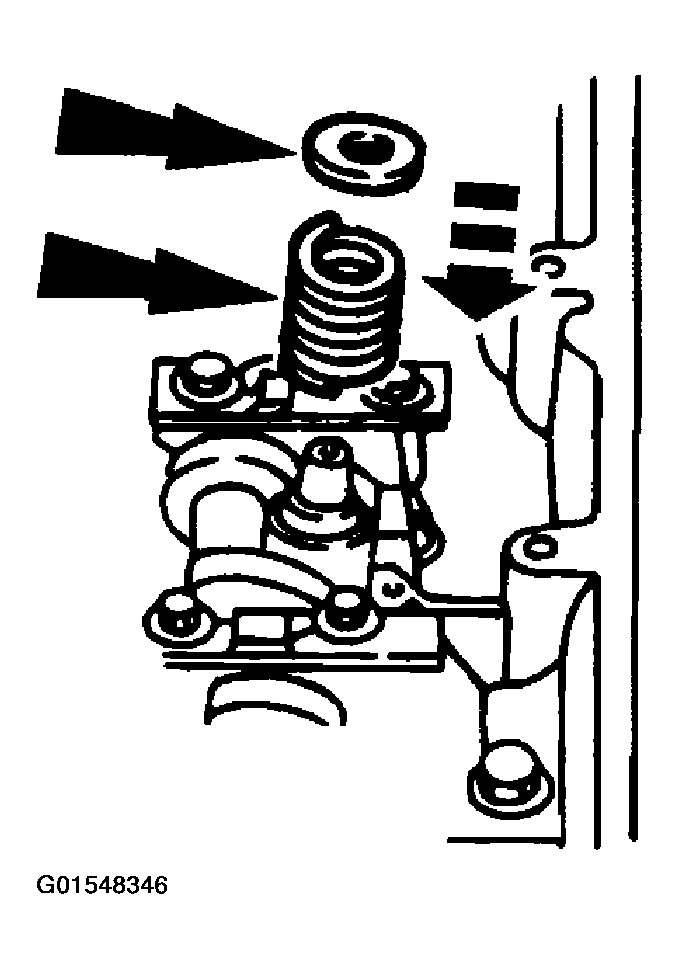

    Fig 1: Positioning Valve Spring And Valve Spring Retainers
    G01548346Courtesy of FORD MOTOR CO.
  2. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 2: Installing Special Tool Between Valve Spring
    G01548347Courtesy of FORD MOTOR CO.
  3. Use the special tool to compress the valve spring. Install the valve spring retainer keys.

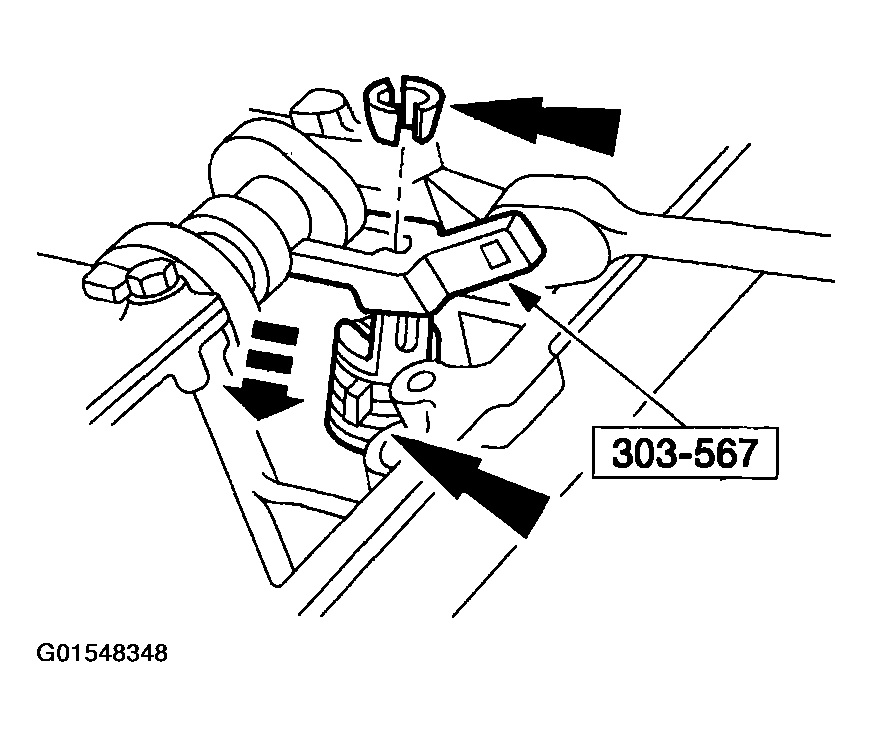

    Fig 3: Installing Valve Spring Retainer Keys Using Special Tool
    G01548348Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. Refer to Camshaft Roller Follower .
  5. Install the spark plug.
