Intermediate One-Way Clutch: Notes

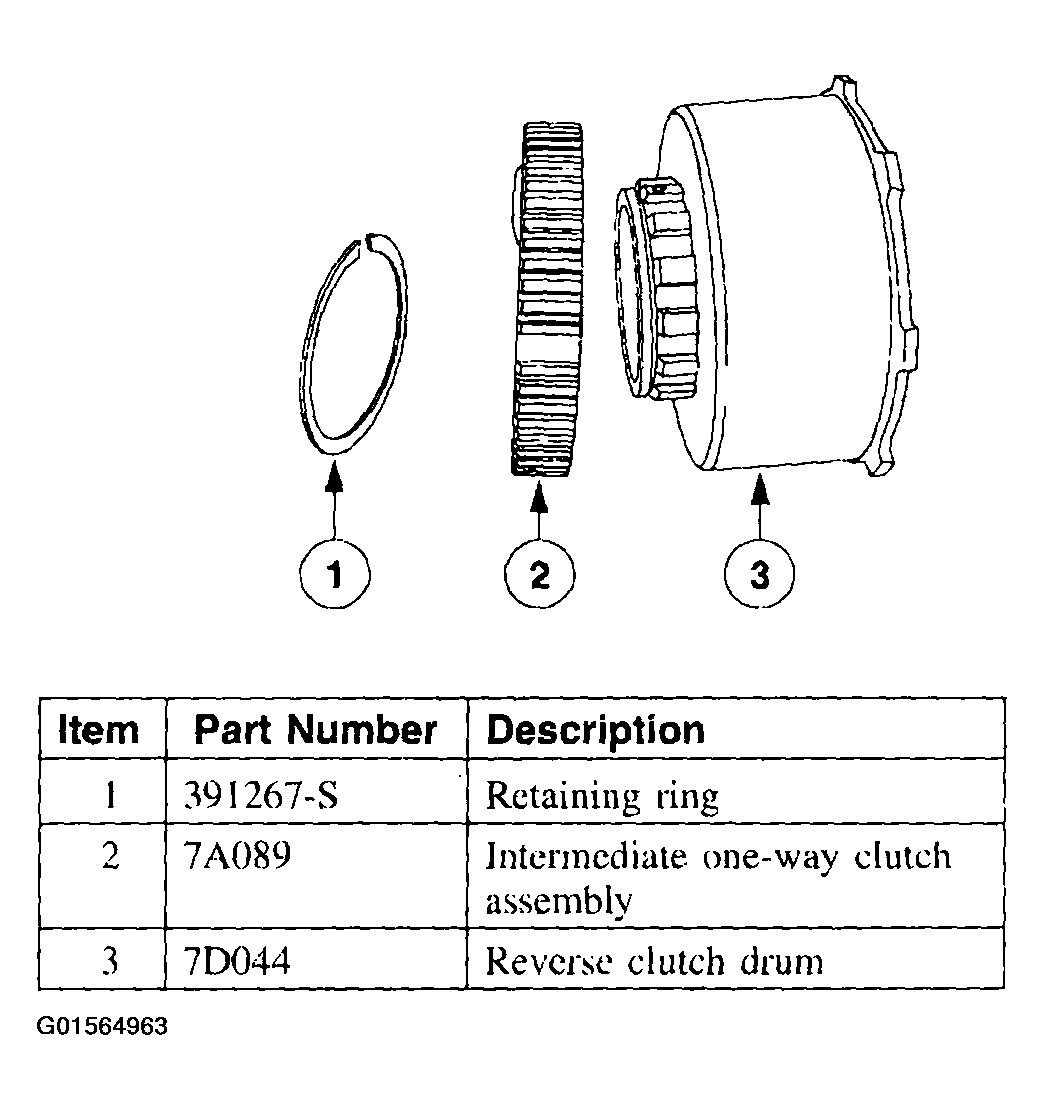

Fig 1: Identifying Intermediate Clutch Cylinder Components And Parts Description Chart
G01564963Courtesy of FORD MOTOR CO.
