Symptom Chart

NOTE: Refer to ANTI-THEFT (Expedition) or ANTI-LOCK BRAKES (Navigator) Wiring Diagrams for schematic and connector information.

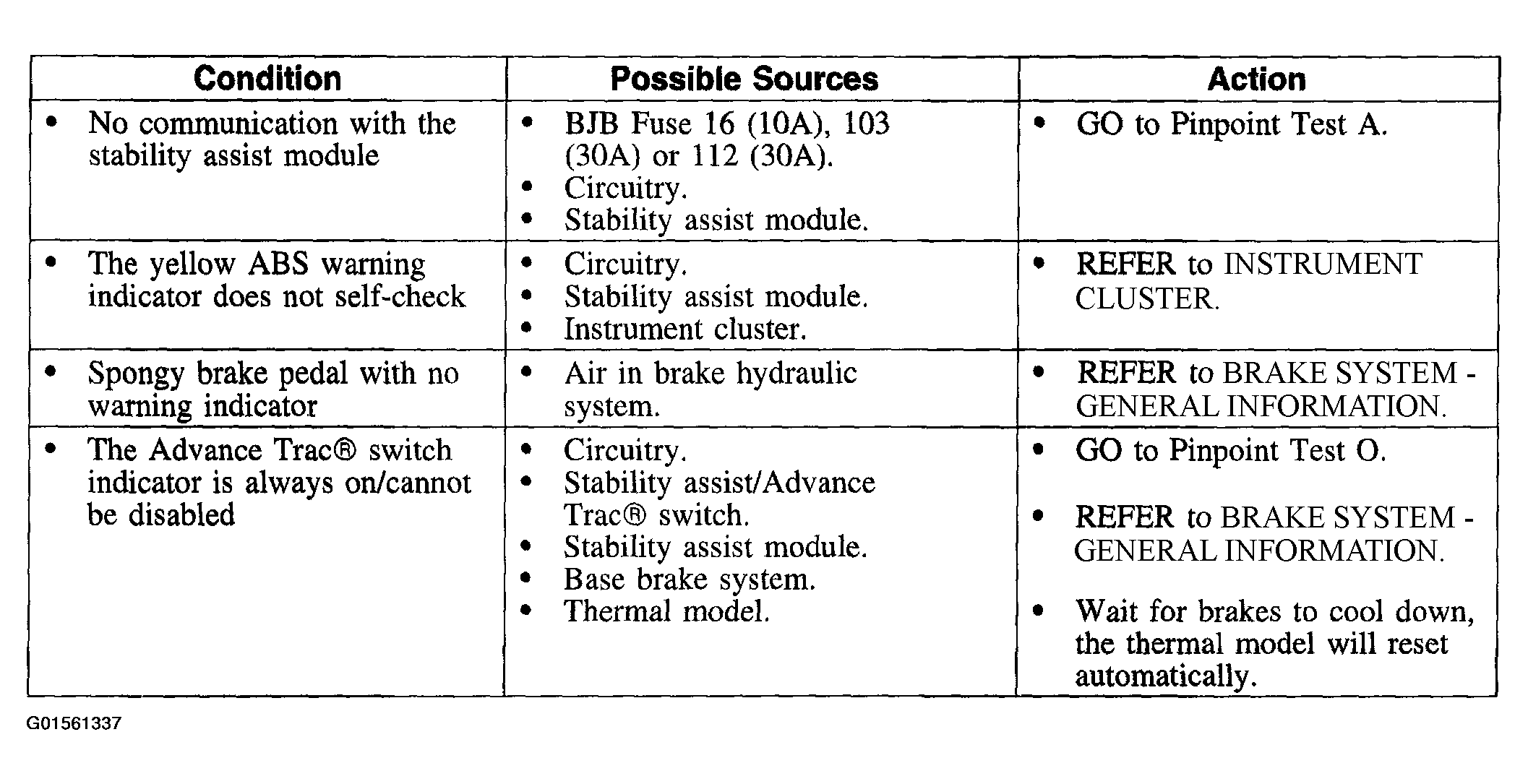

Fig 1: Identifying Symptom Chart
G01561337Courtesy of FORD MOTOR CO.
