Pinpoint Test N: The Advance Trac Is Inoperative: Testing

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

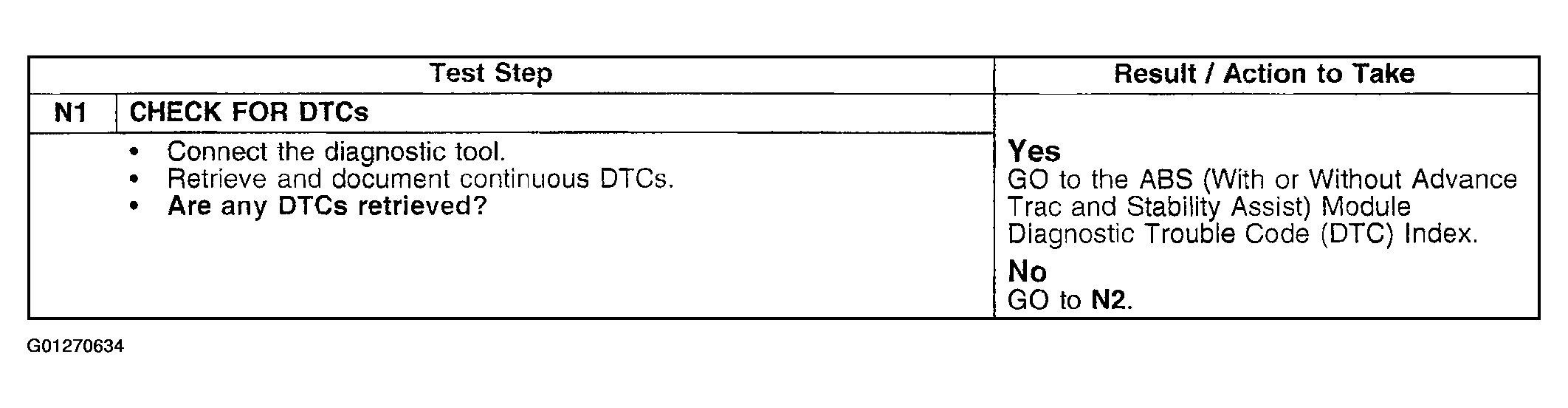

Fig 1: Pinpoint Test N: Advance Trac Is Inoperative (N1)

Courtesy of FORD MOTOR CO.

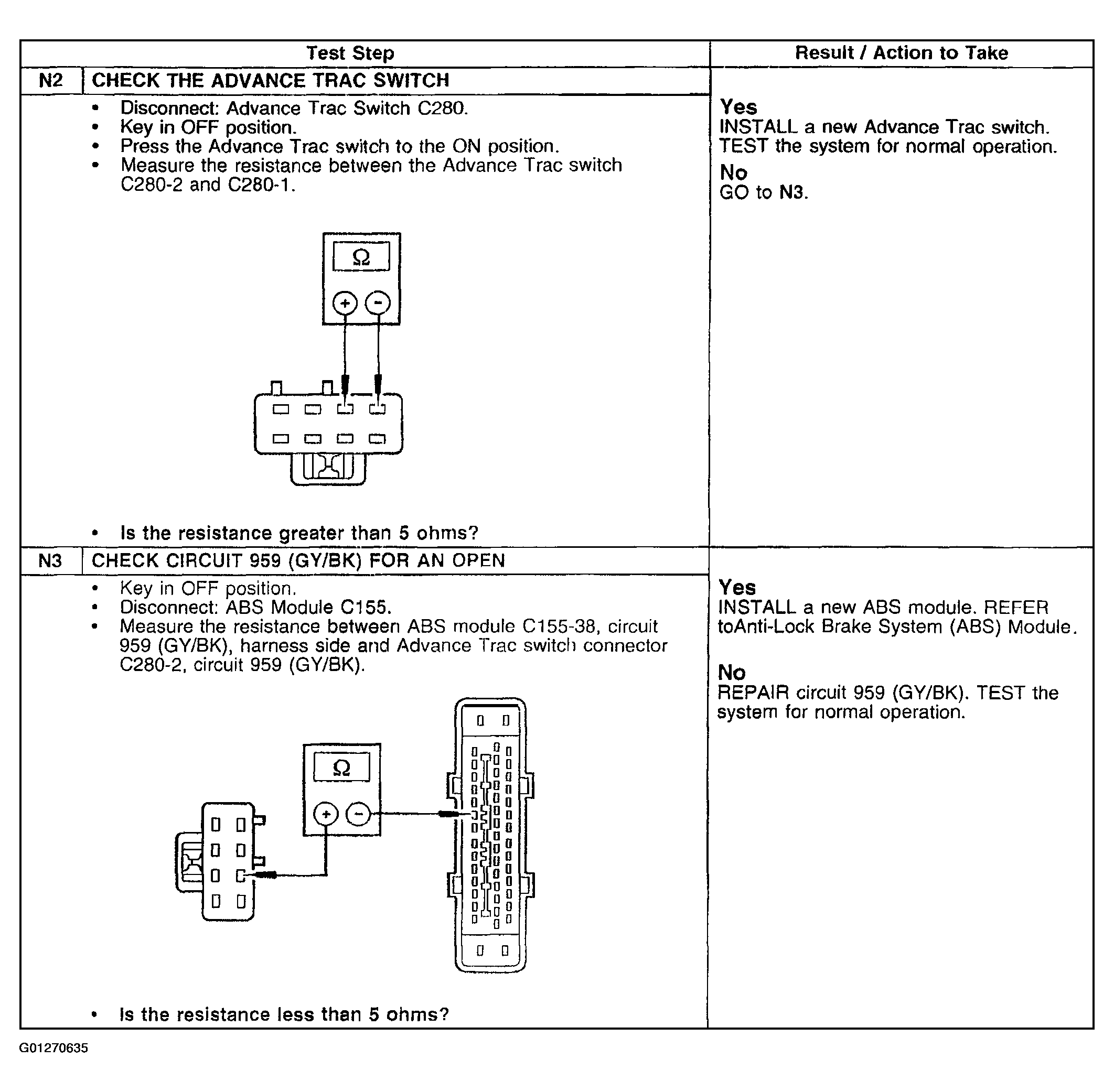

Fig 2: Pinpoint Test N: Advance Trac Is Inoperative (N2 - N3)

Courtesy of FORD MOTOR CO.
