Band And Clutch Application Chart A

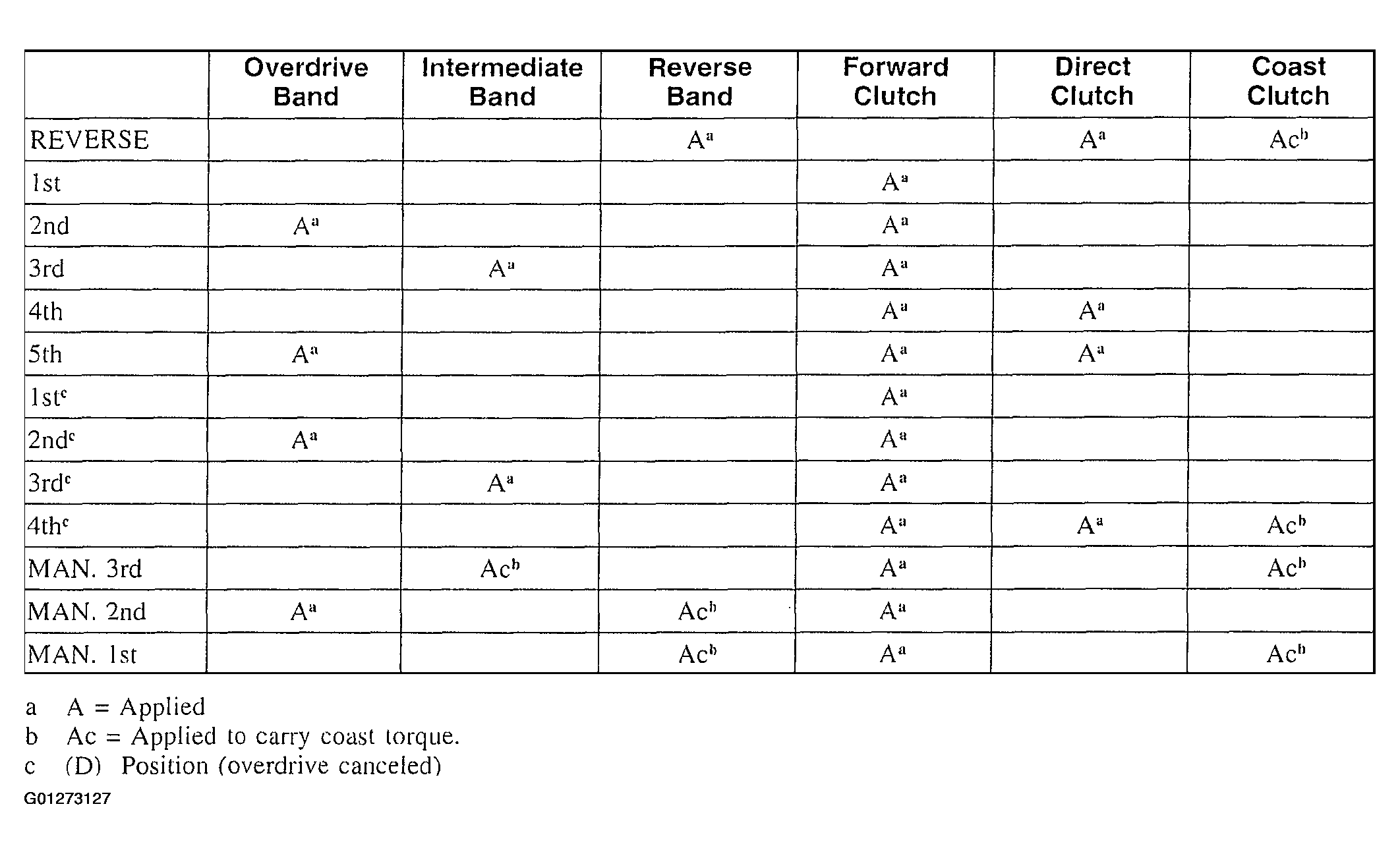

Fig 1: Band And Clutch Application Chart A
G01273127Courtesy of FORD MOTOR CO.
