Torque Specifications

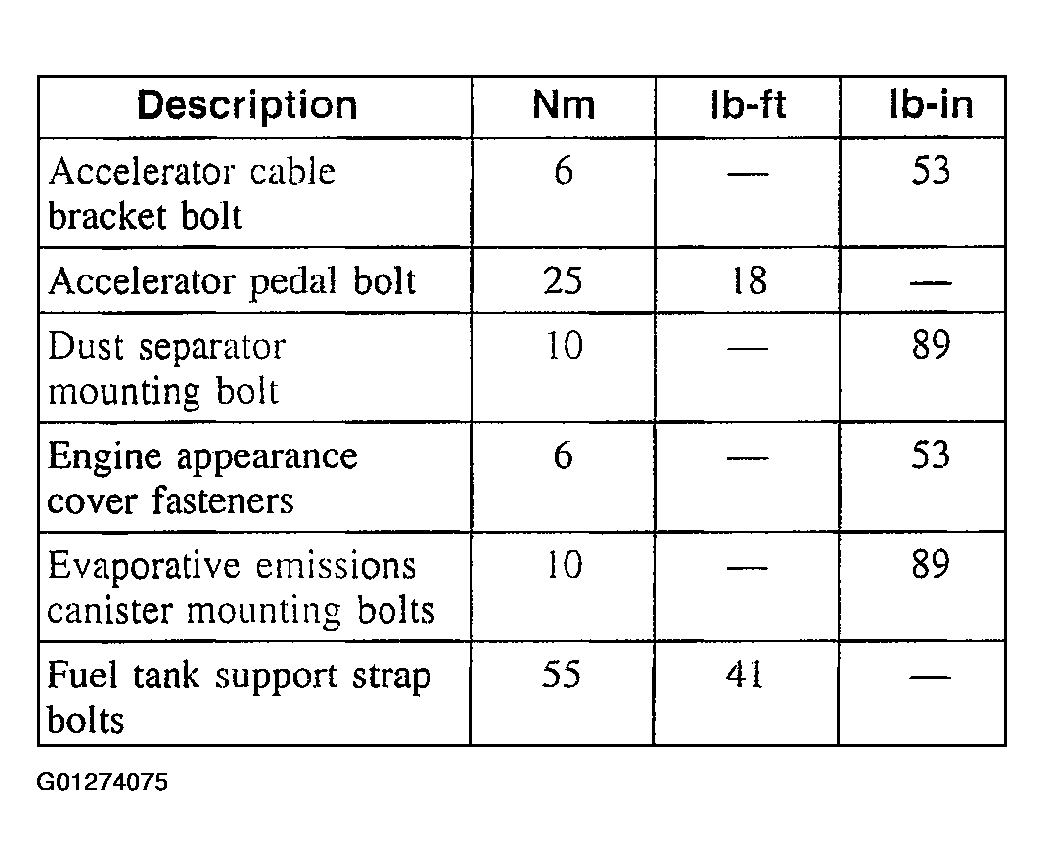

Fig 1: Fuel System Torque Specifications Table (1 of 2)
G01274075Courtesy of FORD MOTOR CO.

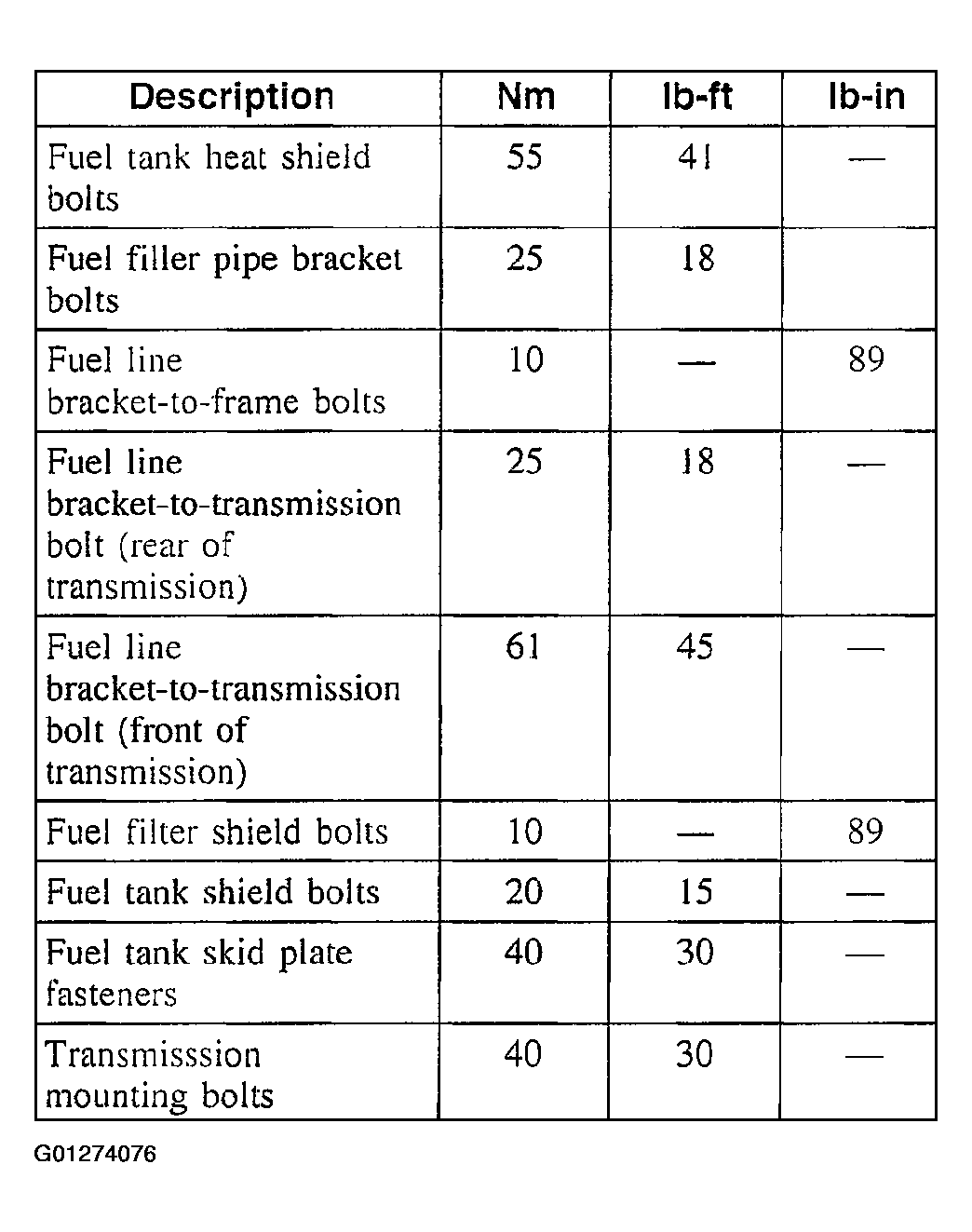

Fig 2: Fuel System Torque Specifications Table (2 Of 2)
G01274076Courtesy of FORD MOTOR CO.
