Pinpoint Test H: Radio Interference: Testing

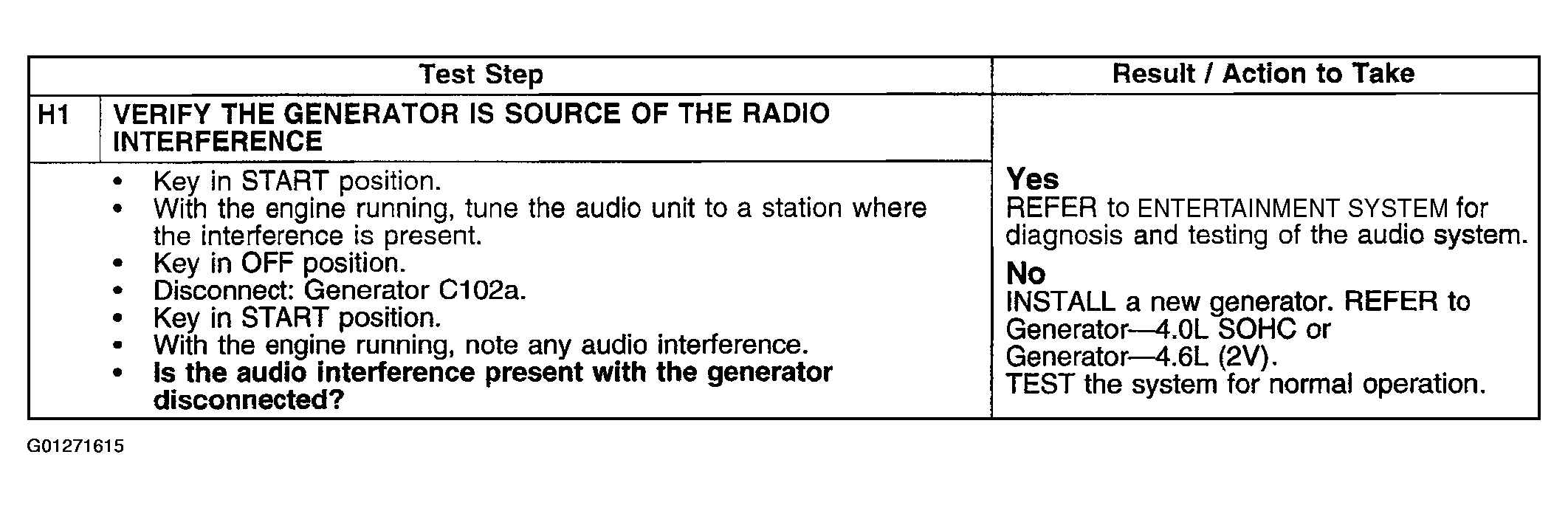

Fig 1: Pinpoint Test H Chart - Radio Interference
G01271615Courtesy of FORD MOTOR CO.
