Symptom Chart

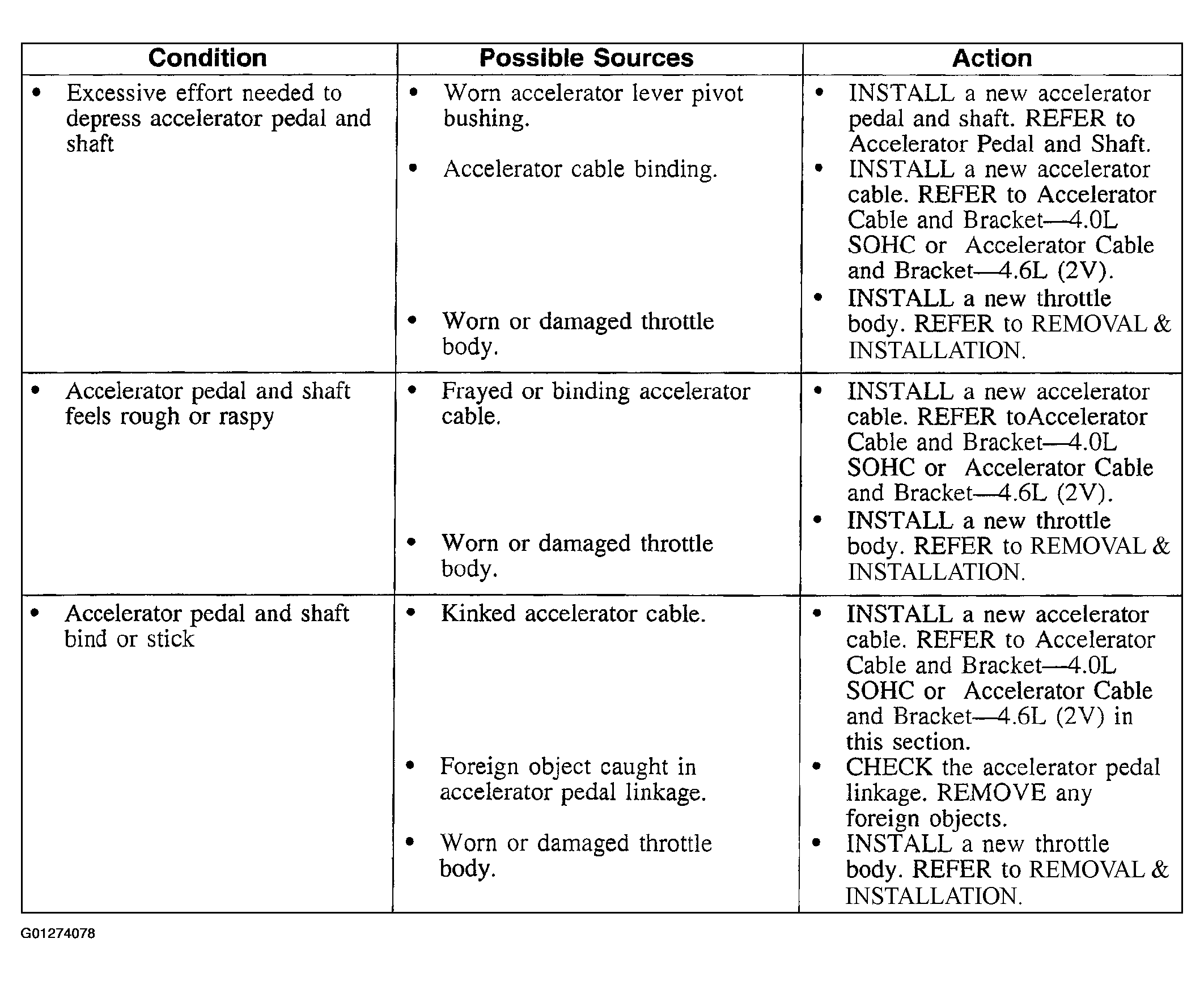

Fig 1: Identifying Fuel System Symptom Chart (1 Of 2)
G01274078Courtesy of FORD MOTOR CO.

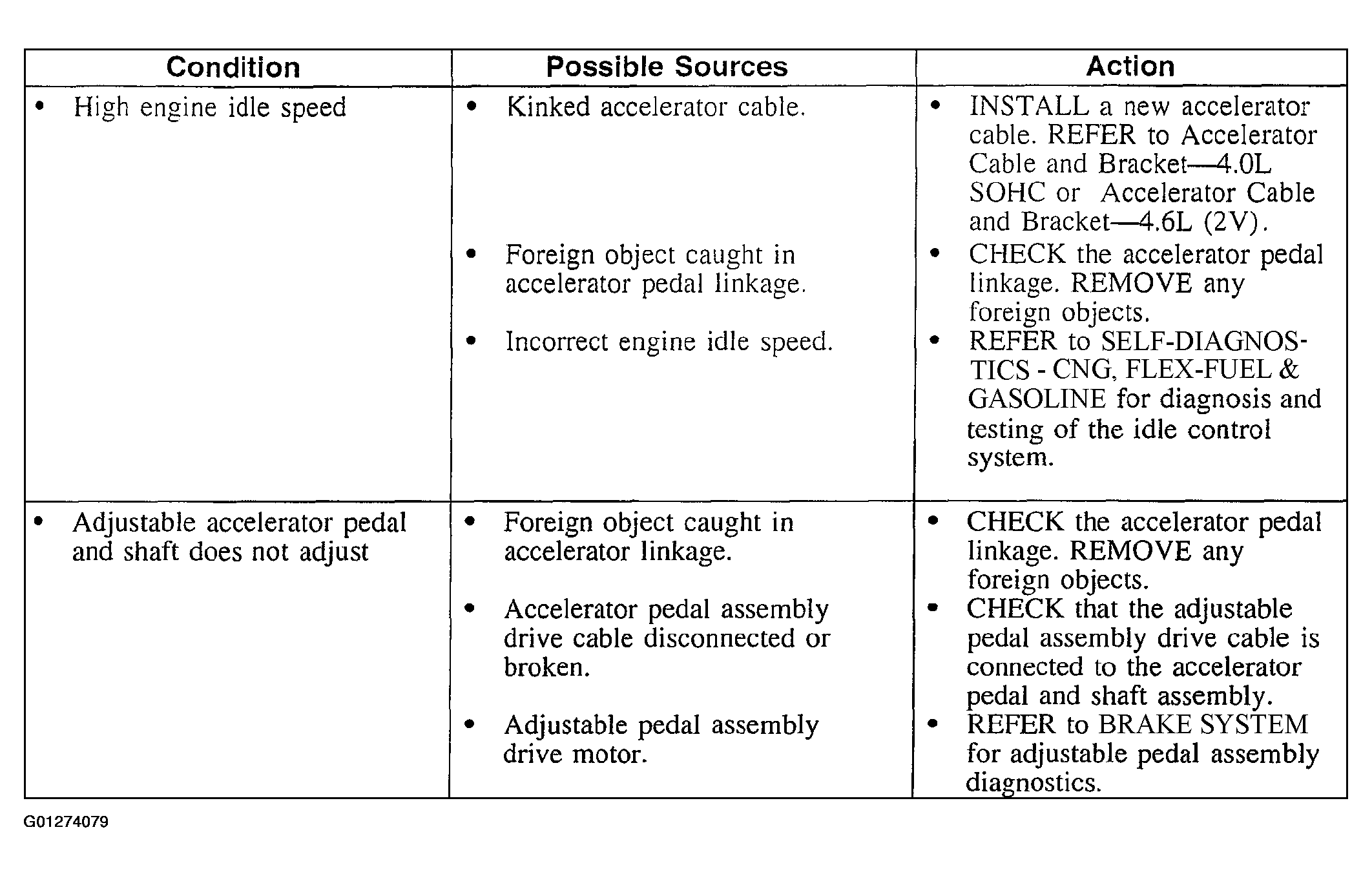

Fig 2: Identifying Fuel System Symptom Chart (2 Of 2)
G01274079Courtesy of FORD MOTOR CO.
