Symptom Chart

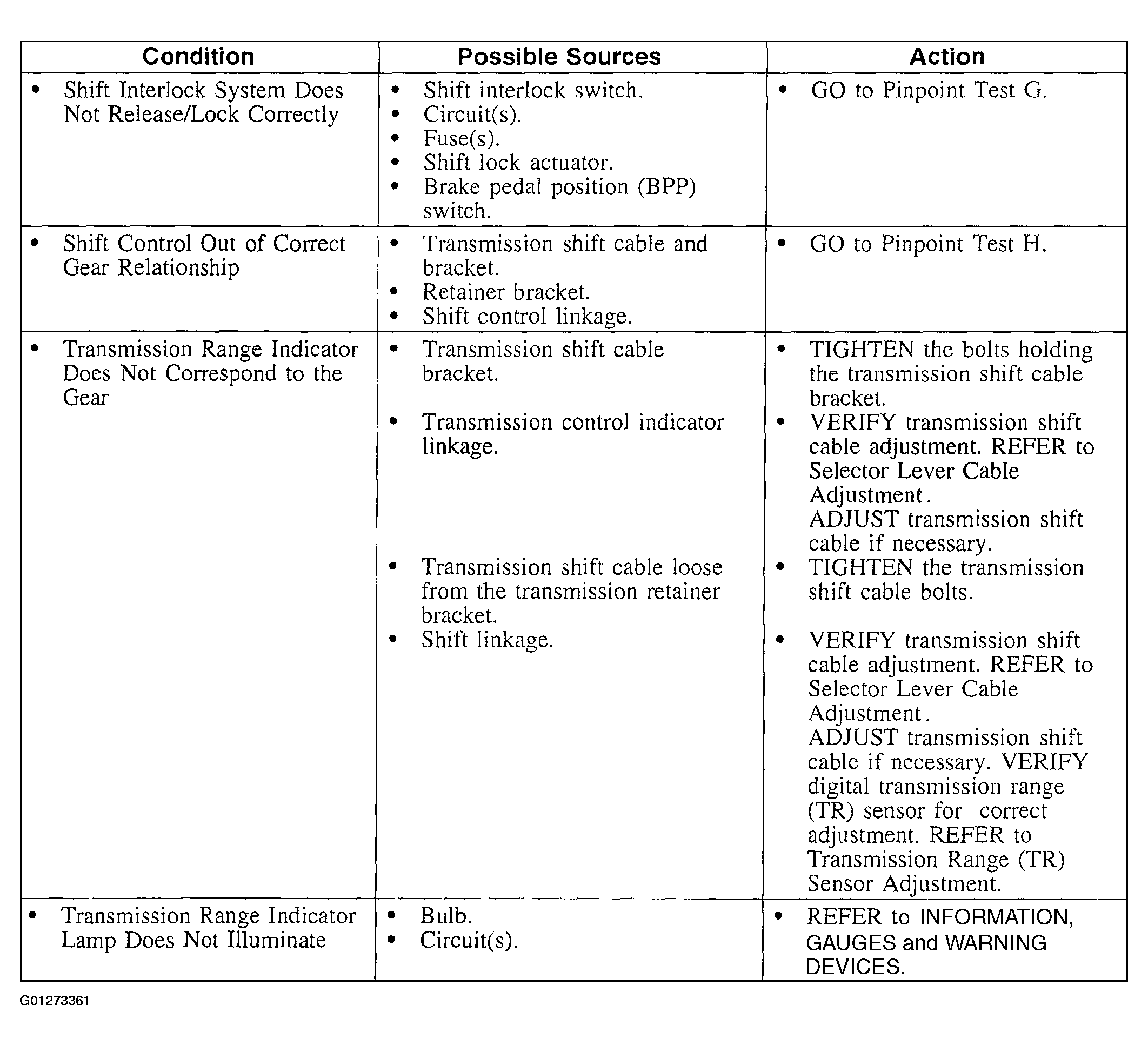

Fig 1: Identifying Transmission External Control Symptom Chart (1 Of 2)
G01273361Courtesy of FORD MOTOR CO.

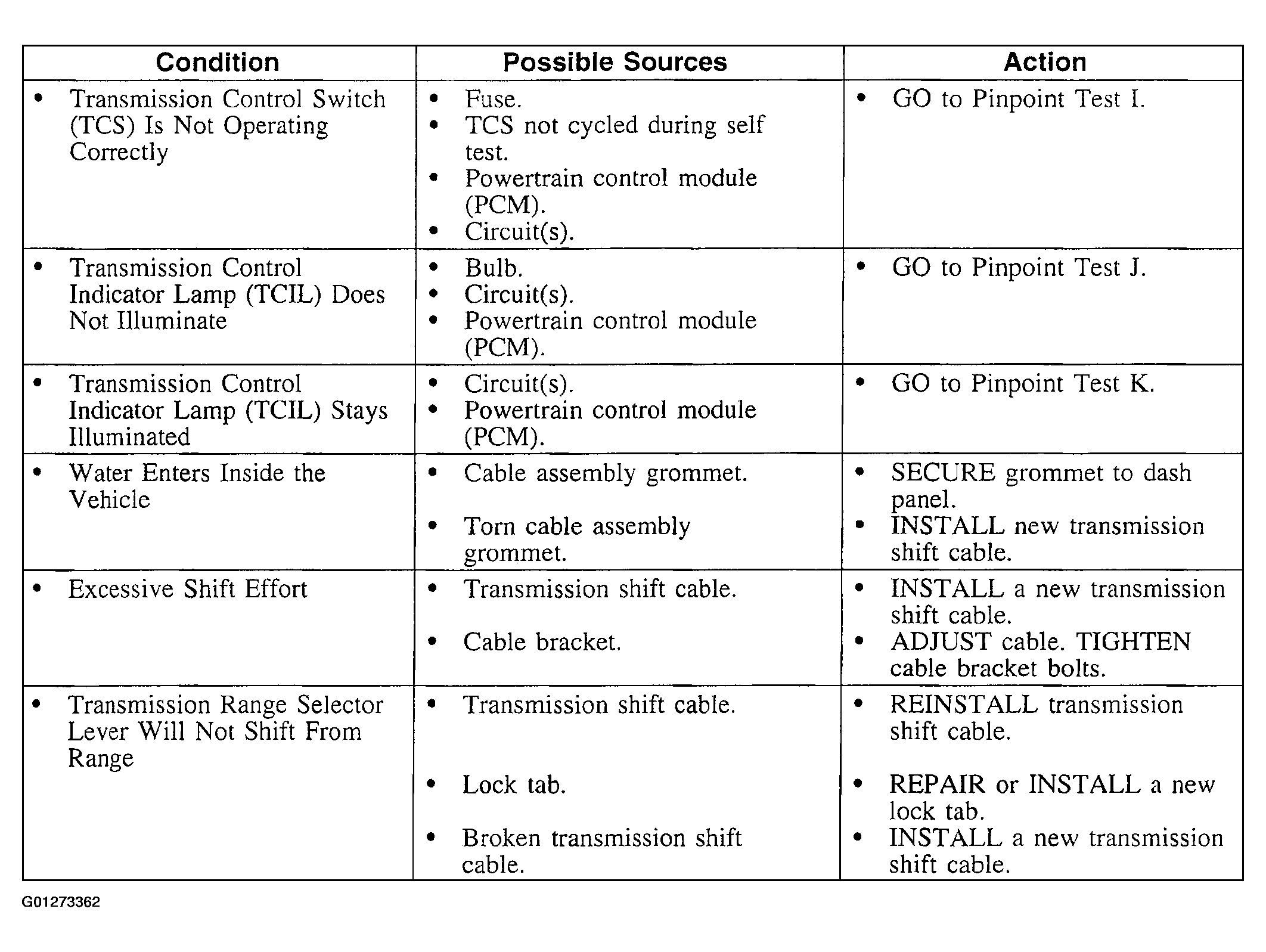

Fig 2: Identifying Transmission External Control Symptom Chart (2 Of 2)
G01273362Courtesy of FORD MOTOR CO.
