Item 8: Front Pump Support Assembly Note

  1. Using the special tools, assemble the pump.

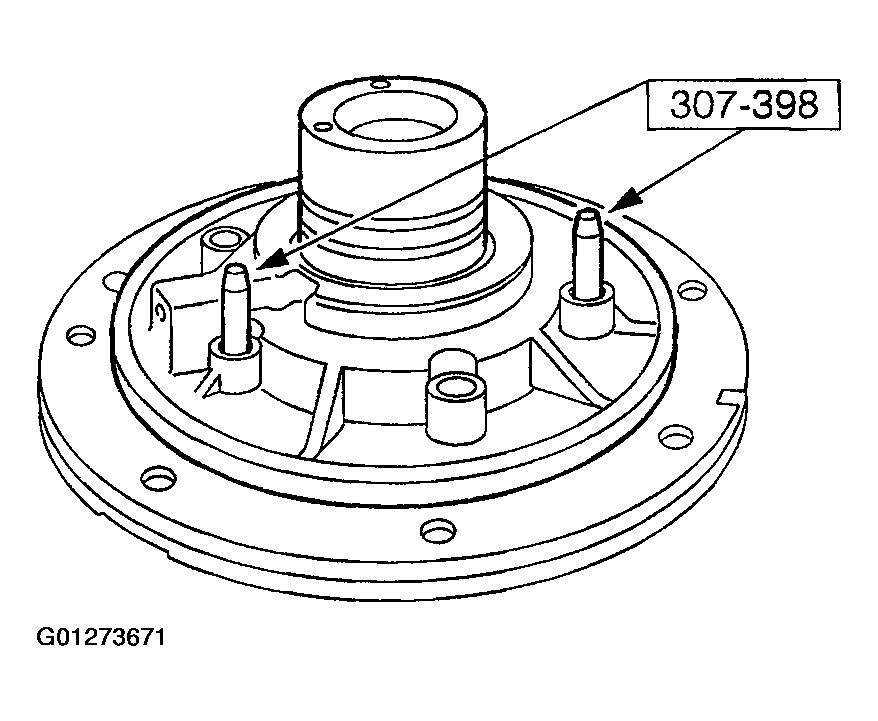

    Fig 1: Installing Front Pump Support
    G01273671Courtesy of FORD MOTOR CO.
