Automatic Transmission
›
Specifications
›
Band Adjustment And Torque Chart
Band Adjustment And Torque Chart

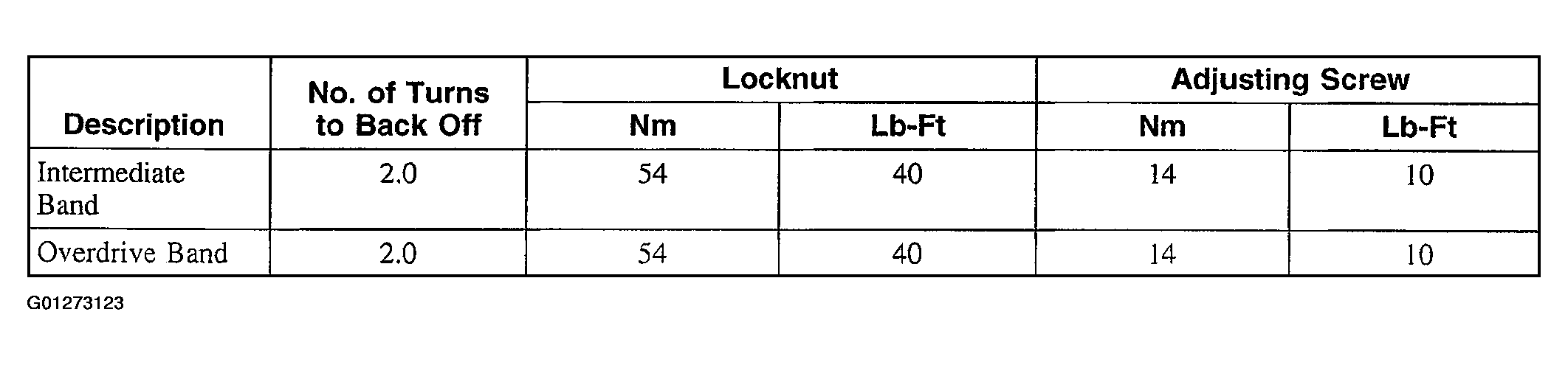

Fig 1: Band Adjustment And Torque Specification Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
