End Play Specifications

Fig 1: End Play Specification Chart - Thrust Washer
G01273120Courtesy of FORD MOTOR CO.

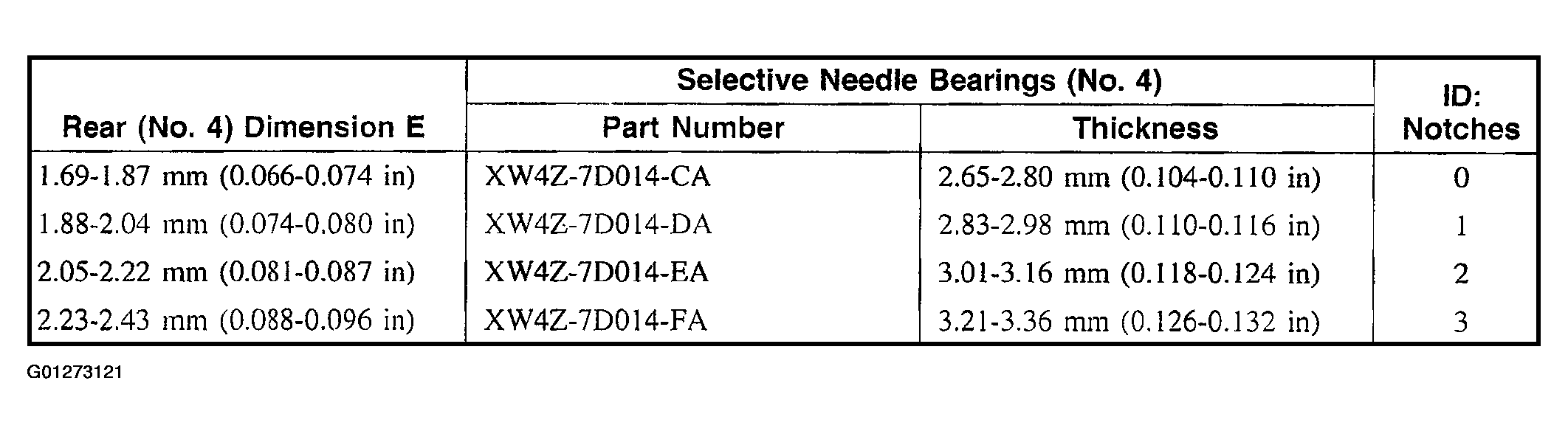

Fig 1: End Play Specification Chart - Needle Bearing
G01273121Courtesy of FORD MOTOR CO.
