Component Testing
›
Power Window Switch, Passenger Door
Power Window Switch, Passenger Door

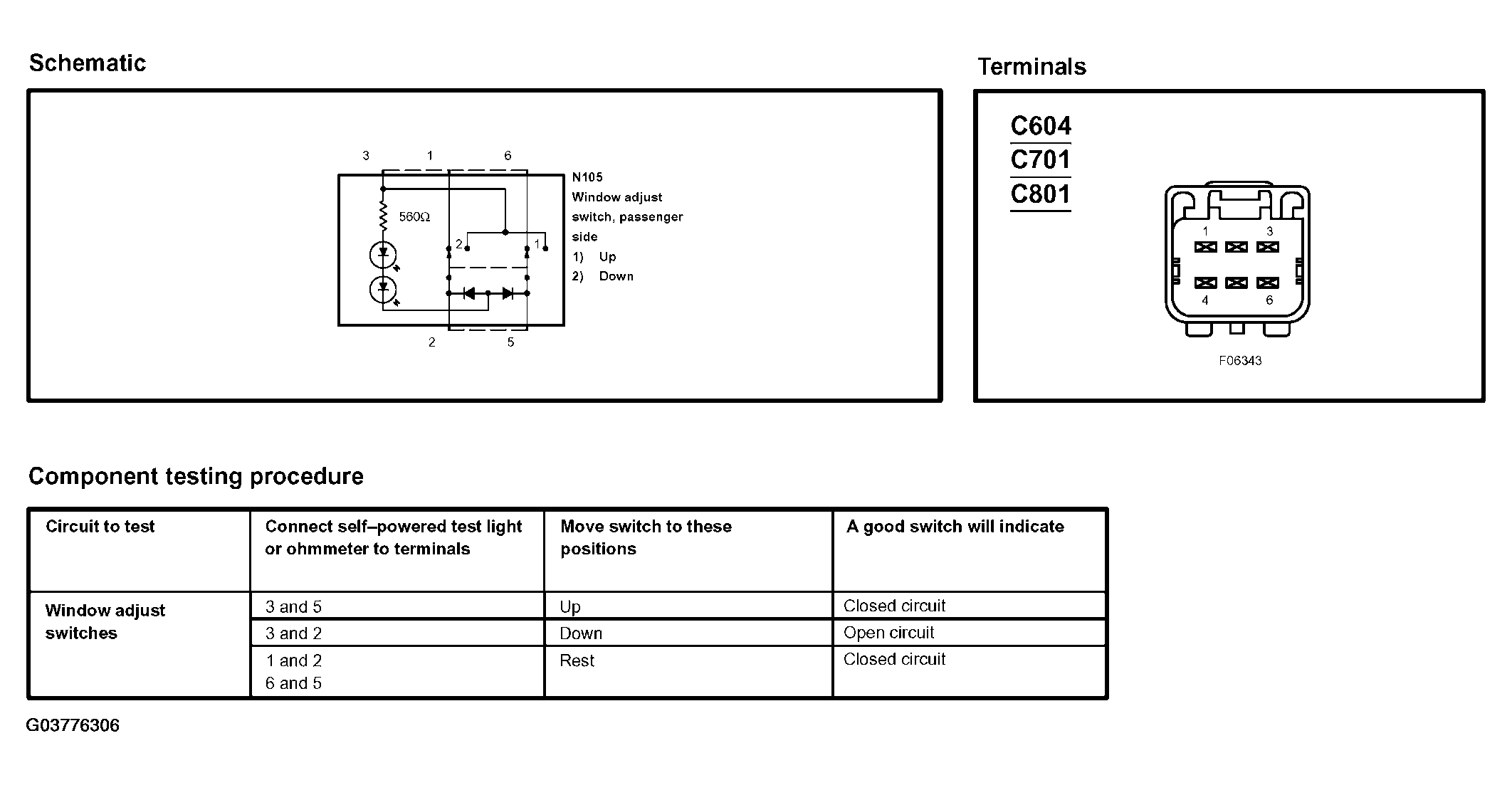

Fig 1: Testing Power Window Switch (Passenger Door)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
