Powertrain Control Module C175a

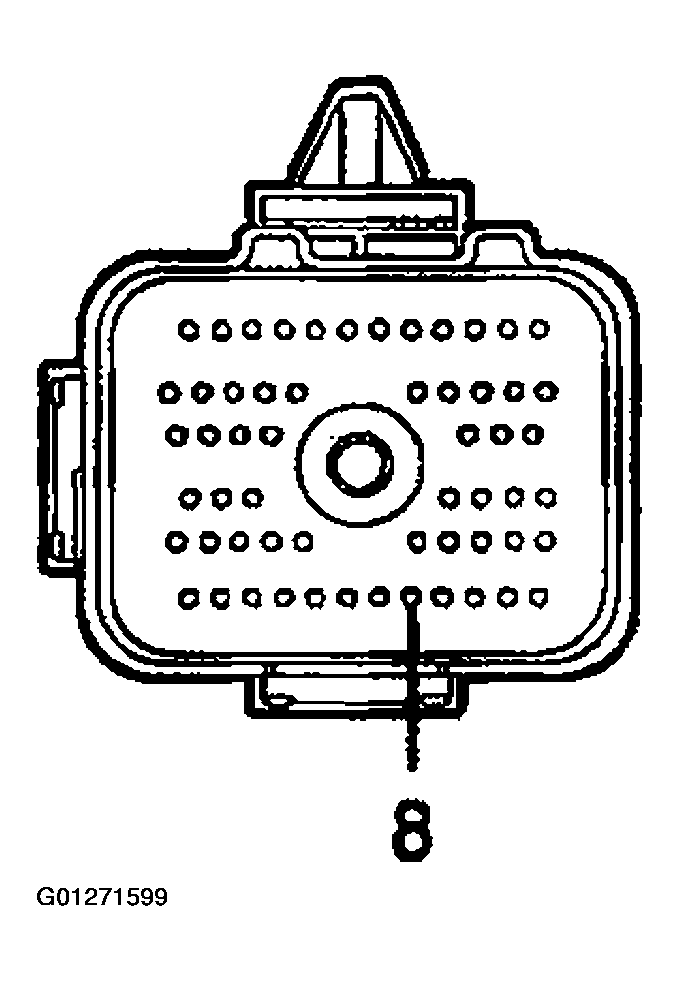

Fig 1: Identifying Powertrain Control Module C175a Connector Pinouts
G01271599Courtesy of FORD MOTOR CO.

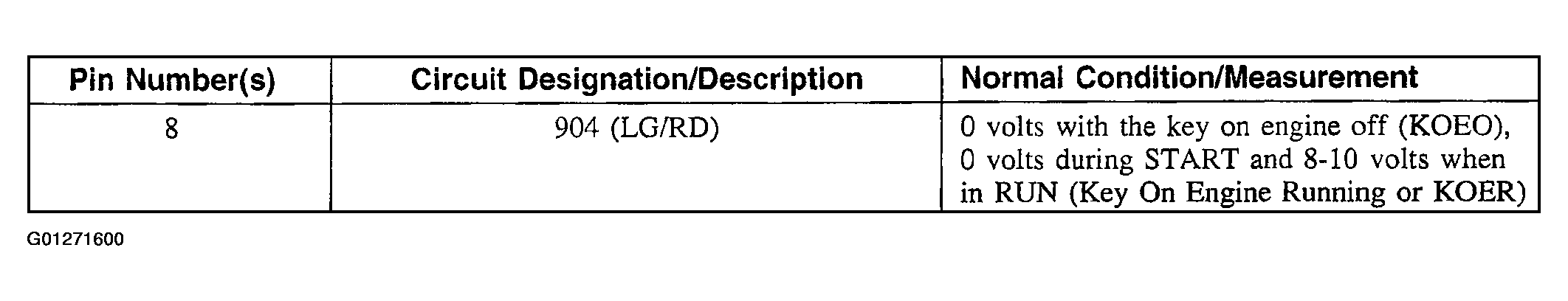

Fig 2: Identifying Powertrain Control Module C175a Connector Pins Reference Table
G01271600Courtesy of FORD MOTOR CO.
