Ford
›
2003
›
Explorer 4.6 W, AWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake Control System
›
Diagnosis And Testing
›
Anti-Lock Control
›
Connector Reference and Terminal Readings
›
Advance Trac Switch C280
Advance Trac Switch C280
Fig 1: Identifying Advance Trac Switch C280 Connector Pin(s)
Courtesy of FORD MOTOR CO.

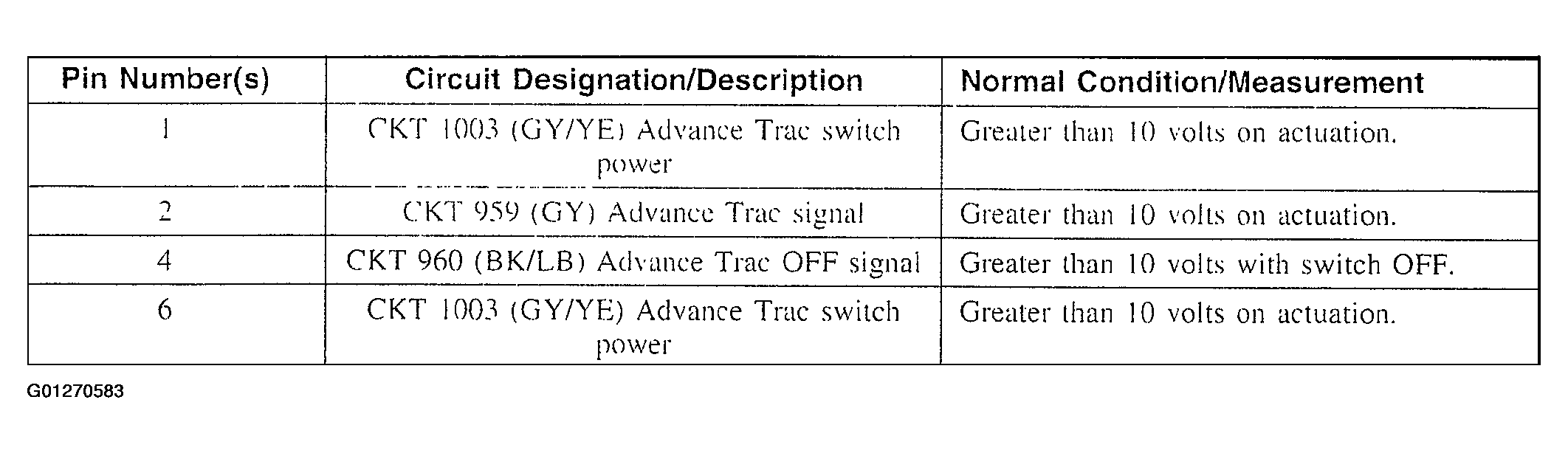

Fig 2: Identifying Advance Trac Switch C280 Connector Pin Reference Table (1 Of 2)
Courtesy of FORD MOTOR CO.

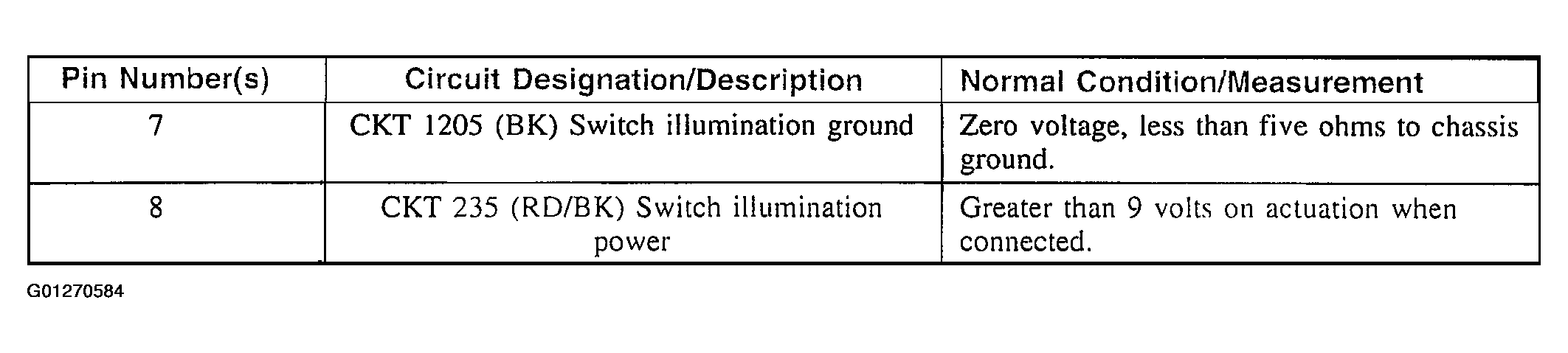

Fig 3: Identifying Advance Trac Switch C280 Connector Pin Reference Table (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
