Audio Unit

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Using the special tool, pull the audio unit out.

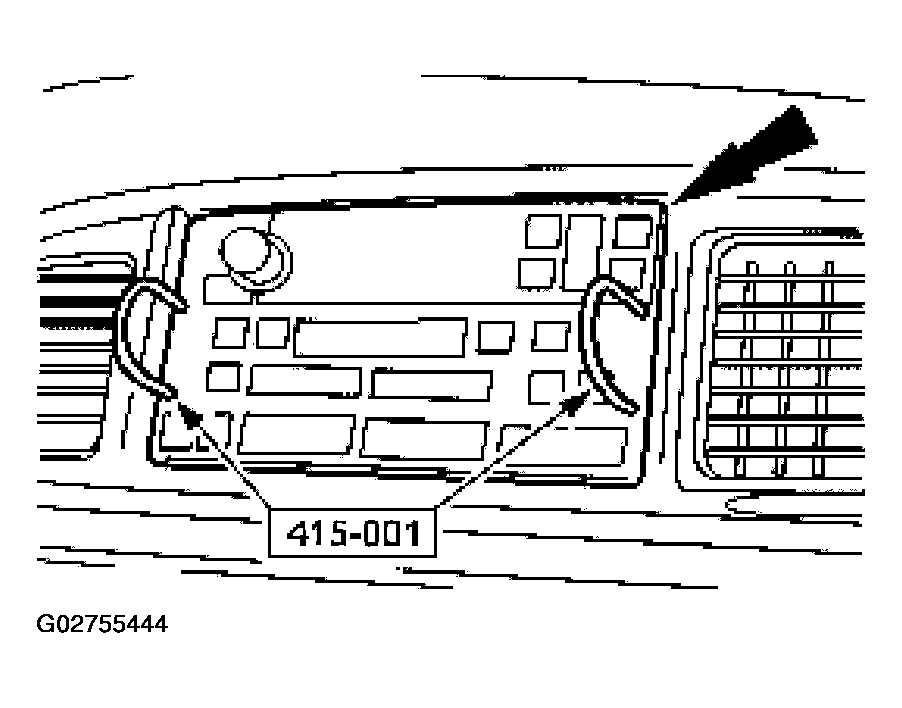

Fig 2: Pulling Audio Unit Out
Courtesy of FORD MOTOR CO.
Remove the audio unit.
- Disconnect the connectors and the antenna lead-in cable.

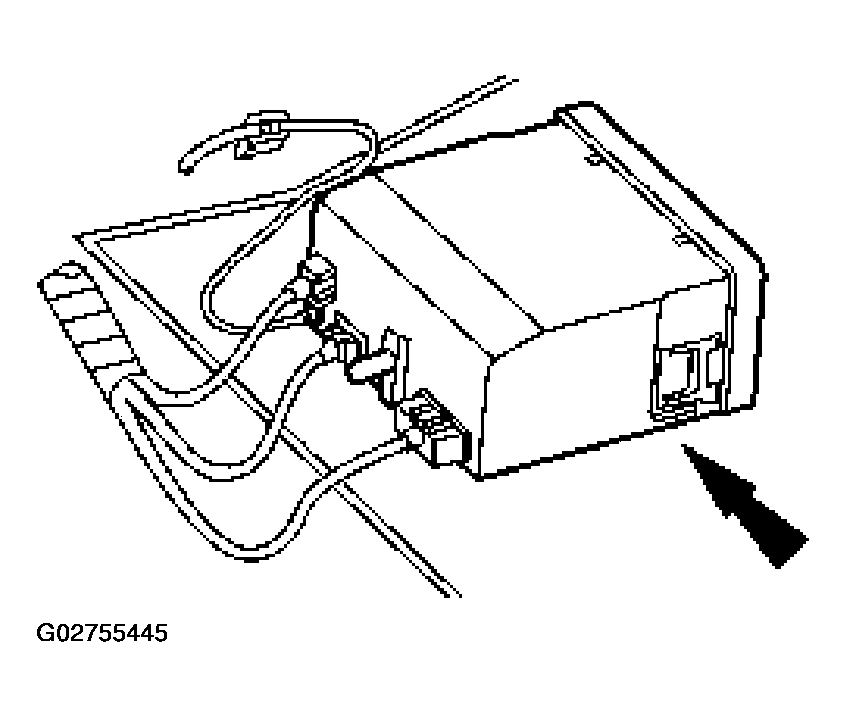

Fig 3: Disconnecting Connectors And Antenna Lead-In Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
