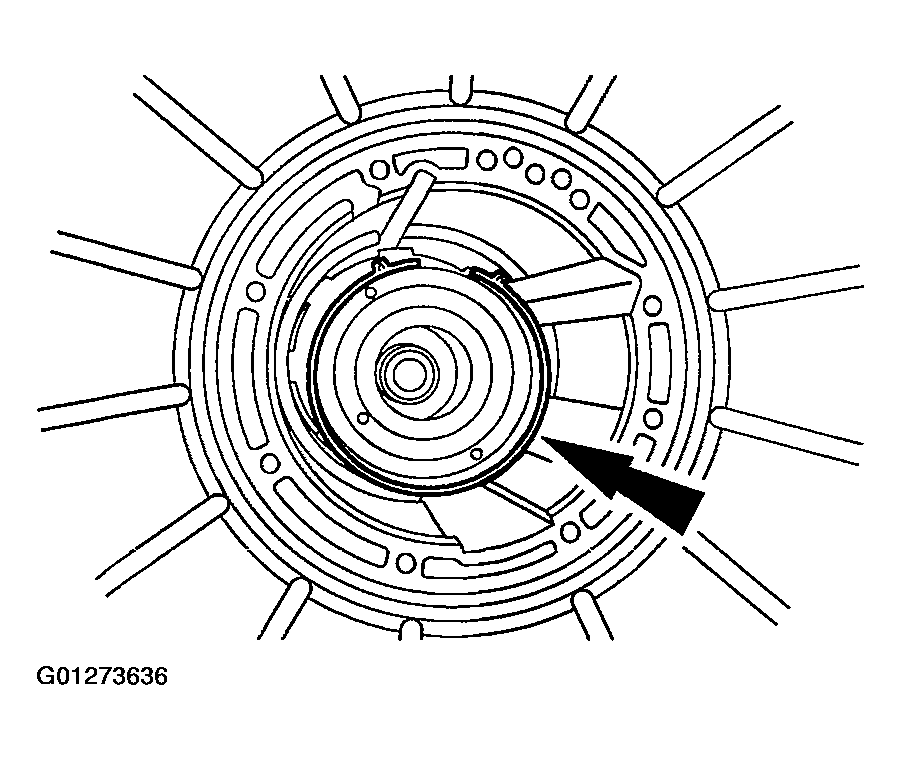

Item 65: Overdrive Intermediate Band Disassembly Note
- Remove and inspect the intermediate band. Check the following conditions when installing a new band:
- Inspect for glazing.
- Inspect for missing friction material.
- Inspect for material flaking.
- Inspect for damage to the anchor pins.
CAUTION:
Identify the anchor and apply ends of the intermediate band.
NOTE:
The intermediate band is new, and dark in color. This is a normal condition of the band. Hairline cracks in the band are also considered normal. Do not install a new band based solely on the color.
