Engine - 4.6L 2V: Assembly: Engine: Assembly: Notes

CAUTION: If the supply manifold is used as a leverage device, damage can occur to the supply manifold. Care must be taken when working around the fuel supply manifold.

NOTE: Before engine assembly, use metal surface cleaner and a suitable plastic or wooden scraper to clean the sealing surfaces. All sealing surfaces must be clean. Make sure coolant and oil passages are clear.

NOTE: During engine assembly, it may become necessary to check bearing clearances and end play. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

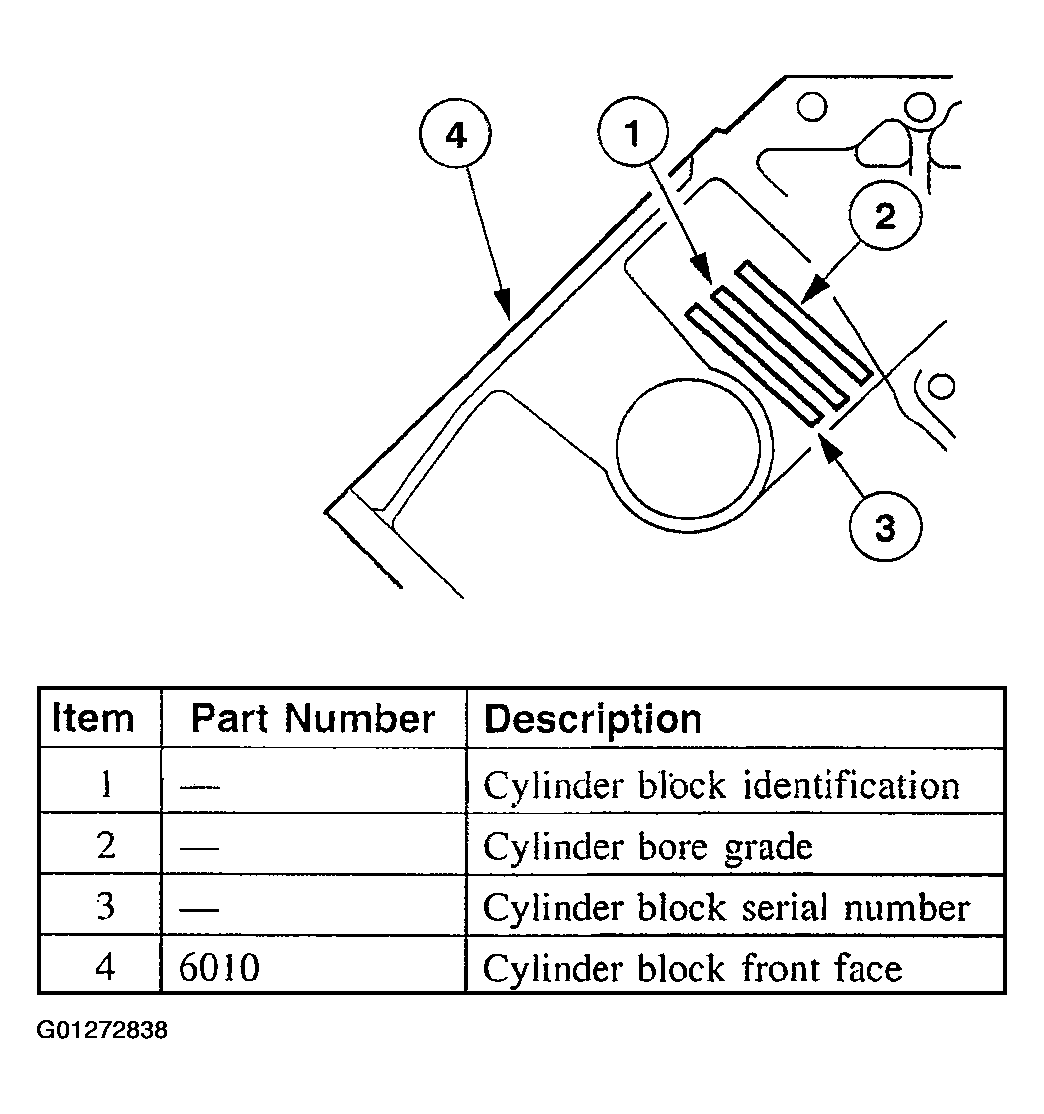

Read the first character code information on the cylinder block face (1) and record the information.

Fig 1: Identifying First Character Code Information On Cylinder Block Face
Courtesy of FORD MOTOR CO.

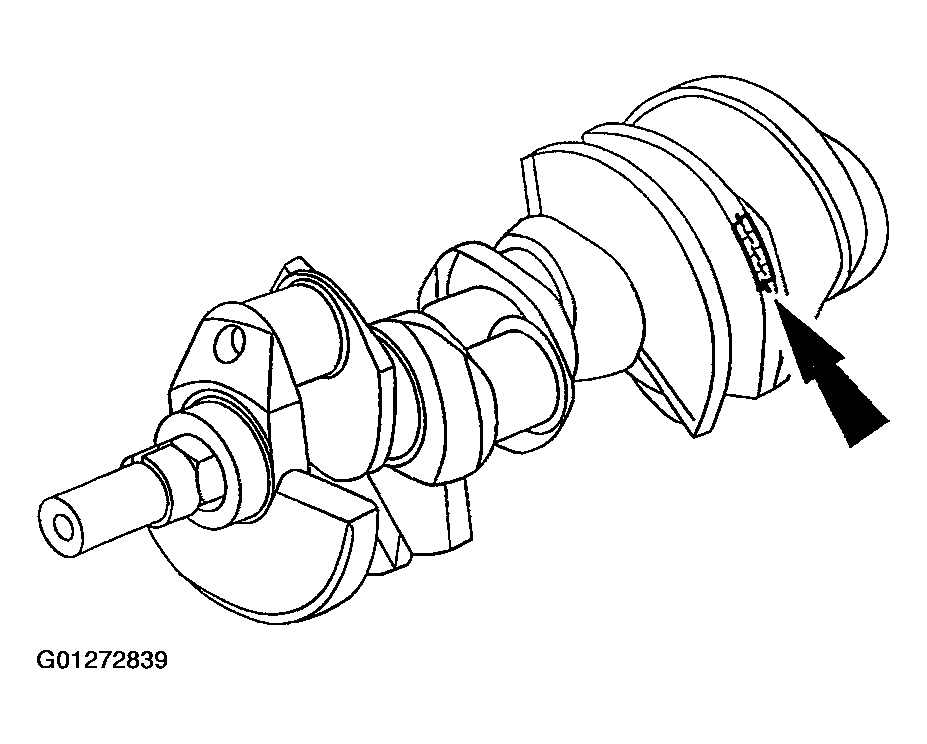

Read the first character on the No. 7 crankshaft counterweight and note it.

Fig 2: Identifying First Character On No. 7 Crankshaft Counterweight
Courtesy of FORD MOTOR CO.
Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings chart determine the required bearing grade for each main bearing.
- Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter, and across the row next to the crankshaft main bearing code letter, until the two intersect. This is the required bearing grade for the number one crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "D", the correct bearing grade for this main bearing is a "2".
- Repeat this process for the remaining four main bearings.

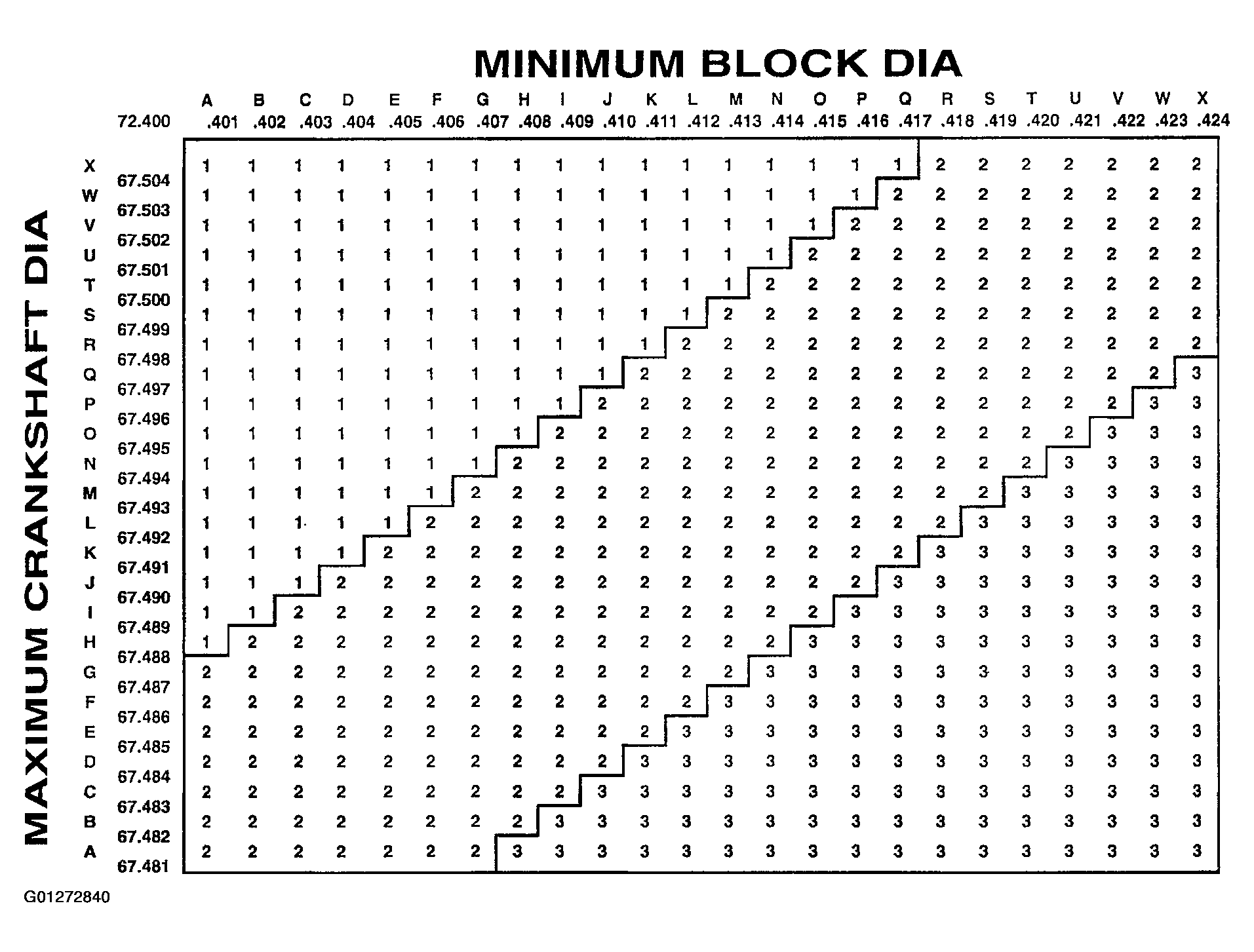

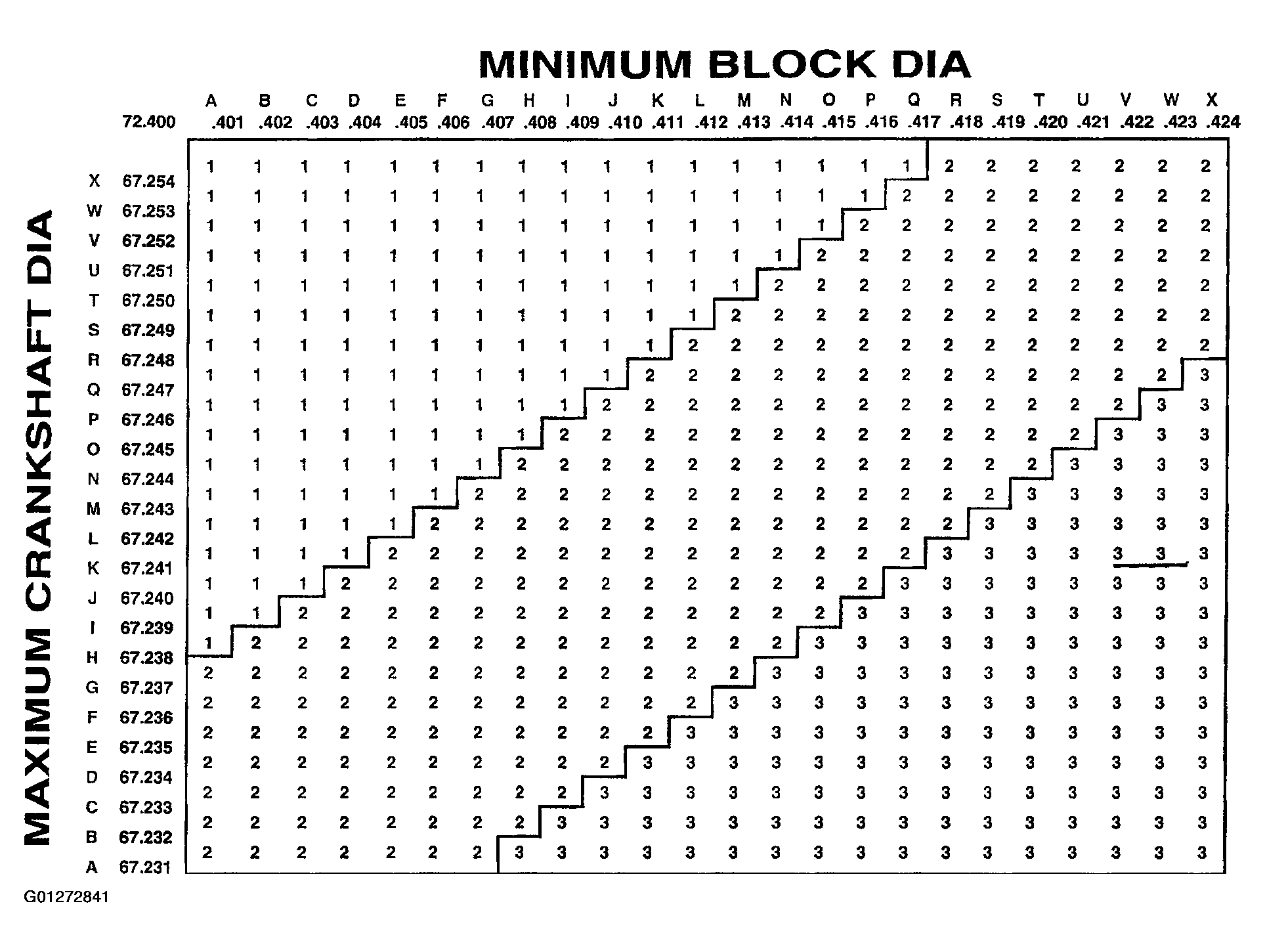

Fig 3: Identifying Standard Bearing Chart
Courtesy of FORD MOTOR CO.
If oversize bearings are being used, use the procedure in the previous step and Fig 3 and Fig 4 to determine the required bearing grade for each main bearing.

Fig 4: Identifying Oversize Bearings Chart
Courtesy of FORD MOTOR CO.

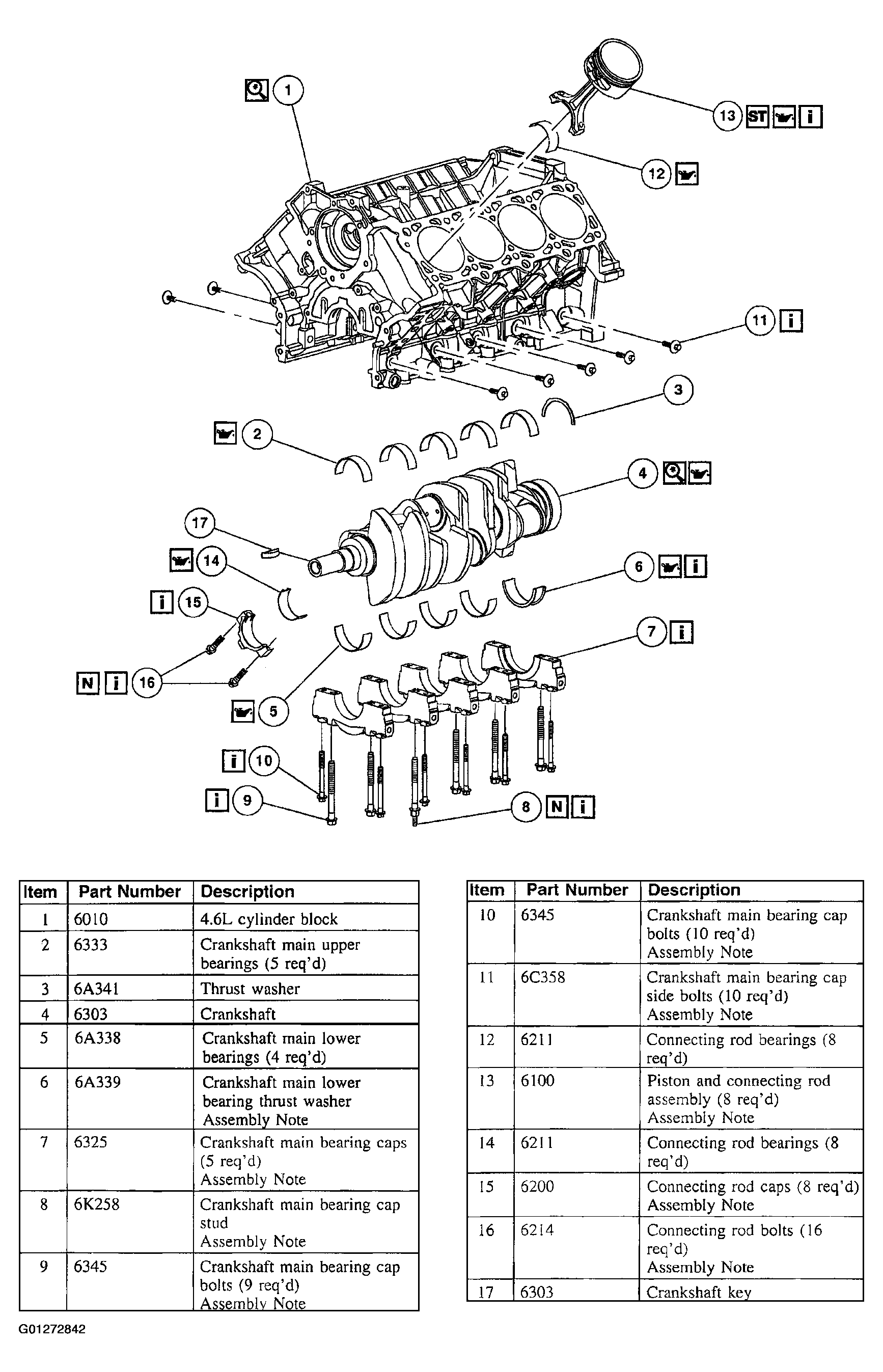

Illustration 1 of 19. Install the components in the order indicated in the following illustration and table.

Fig 5: Identifying Engine Assembly Sequence (1 Of 19)
Courtesy of FORD MOTOR CO.
Illustration 2 of 19. Install the components in the order indicated in the following illustration and table.

Fig 6: Identifying Engine Assembly Sequence (2 Of 19)
Courtesy of FORD MOTOR CO.

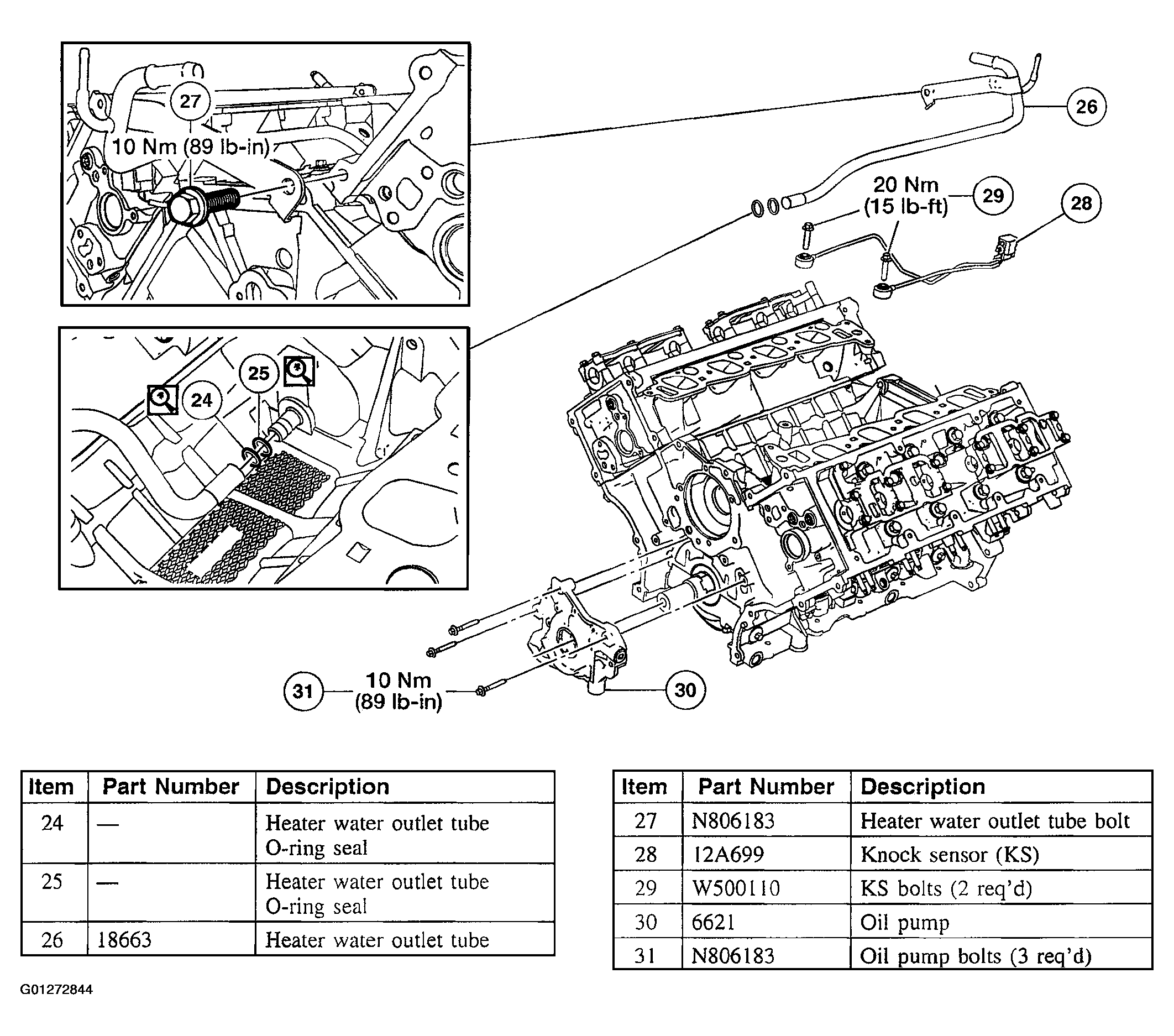

Illustration 3 of 19. Install the components in the order indicated in the following illustration and table.

Fig 7: Engine Assembly Sequence (3 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.
Illustration 4 of 19. Install the components in the order indicated in the following illustration and table.

Fig 8: Engine Assembly Sequence (4 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

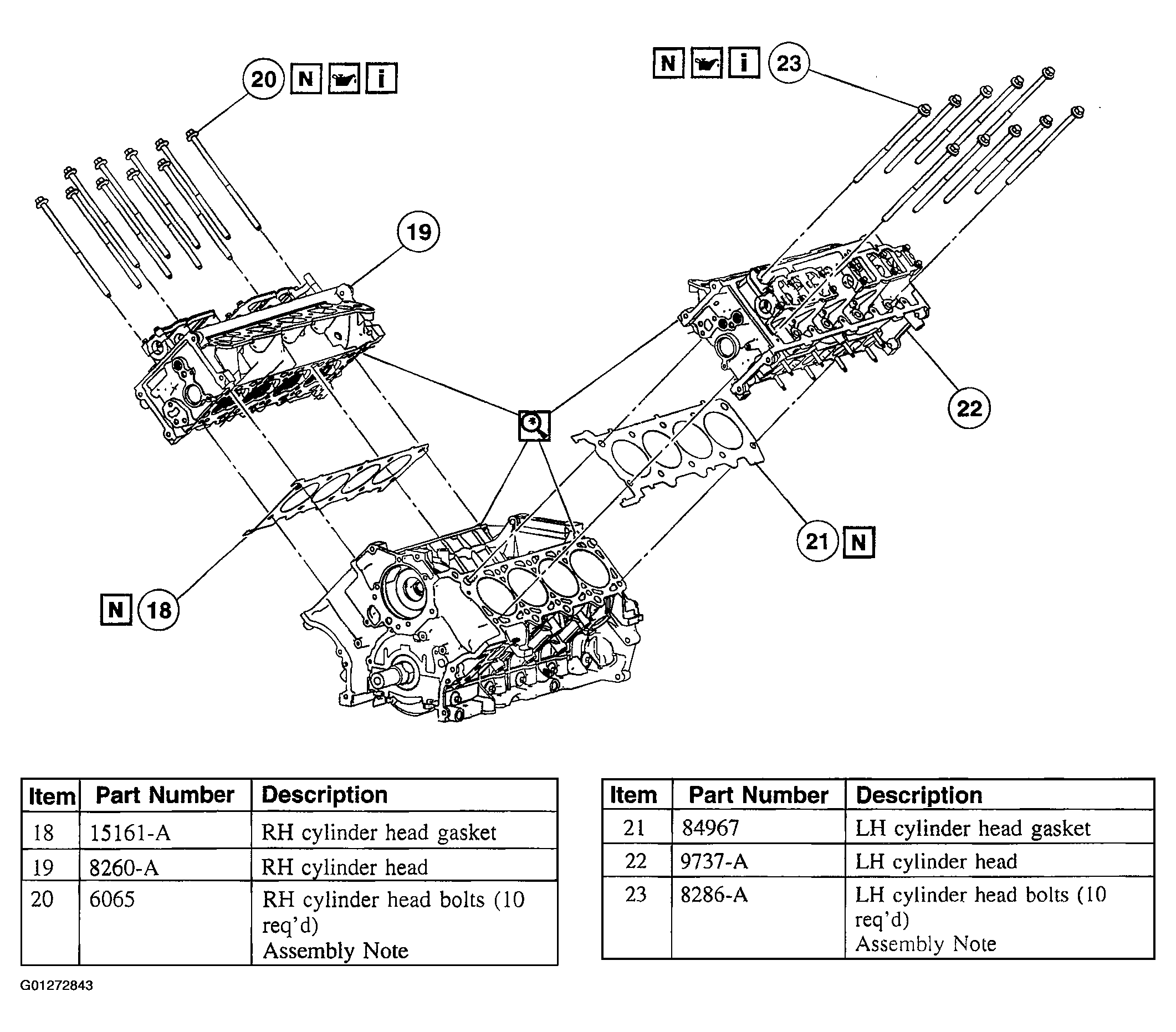

Illustration 5 of 19. Install the components in the order indicated in the following illustration and table.

Fig 9: Engine Assembly Sequence (5 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.
Illustration 6 of 19. Install the components in the order indicated in the following illustration and table.

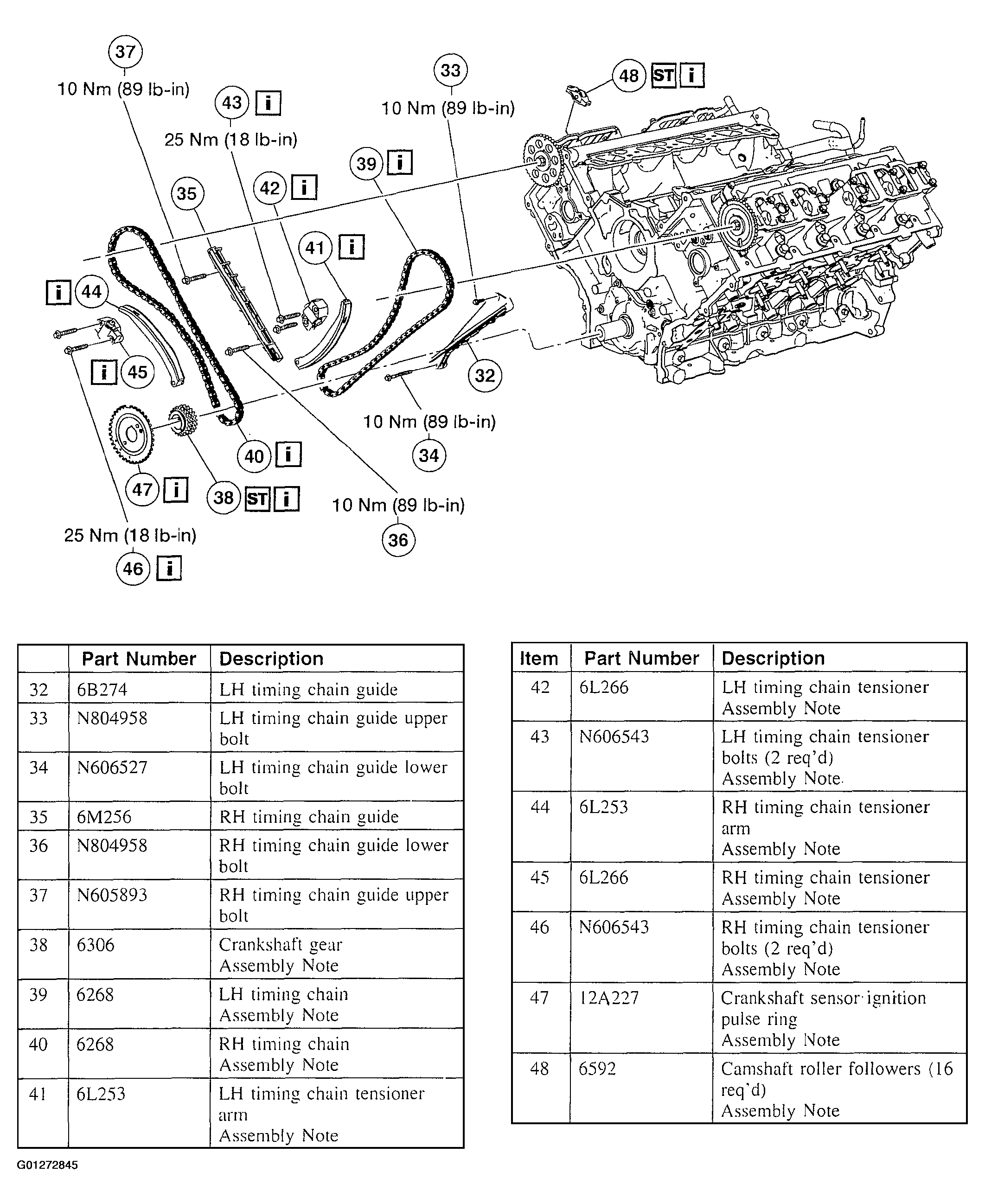

Fig 10: Engine Assembly Sequence (6 Of 19) With Torque Specification
Courtesy of FORD MOTOR CO.
Illustration 7 of 19. Install the components in the order indicated in the following illustration and table.

Fig 11: Engine Assembly Sequence (7 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.
Illustration 8 of 19. Install the components in the order indicated in the following illustration and table.

Fig 12: Engine Assembly Sequence (8 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.
Illustration 9 of 19. Install the components in the order indicated in the following illustration and table.

Fig 13: Engine Assembly Sequence (9 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

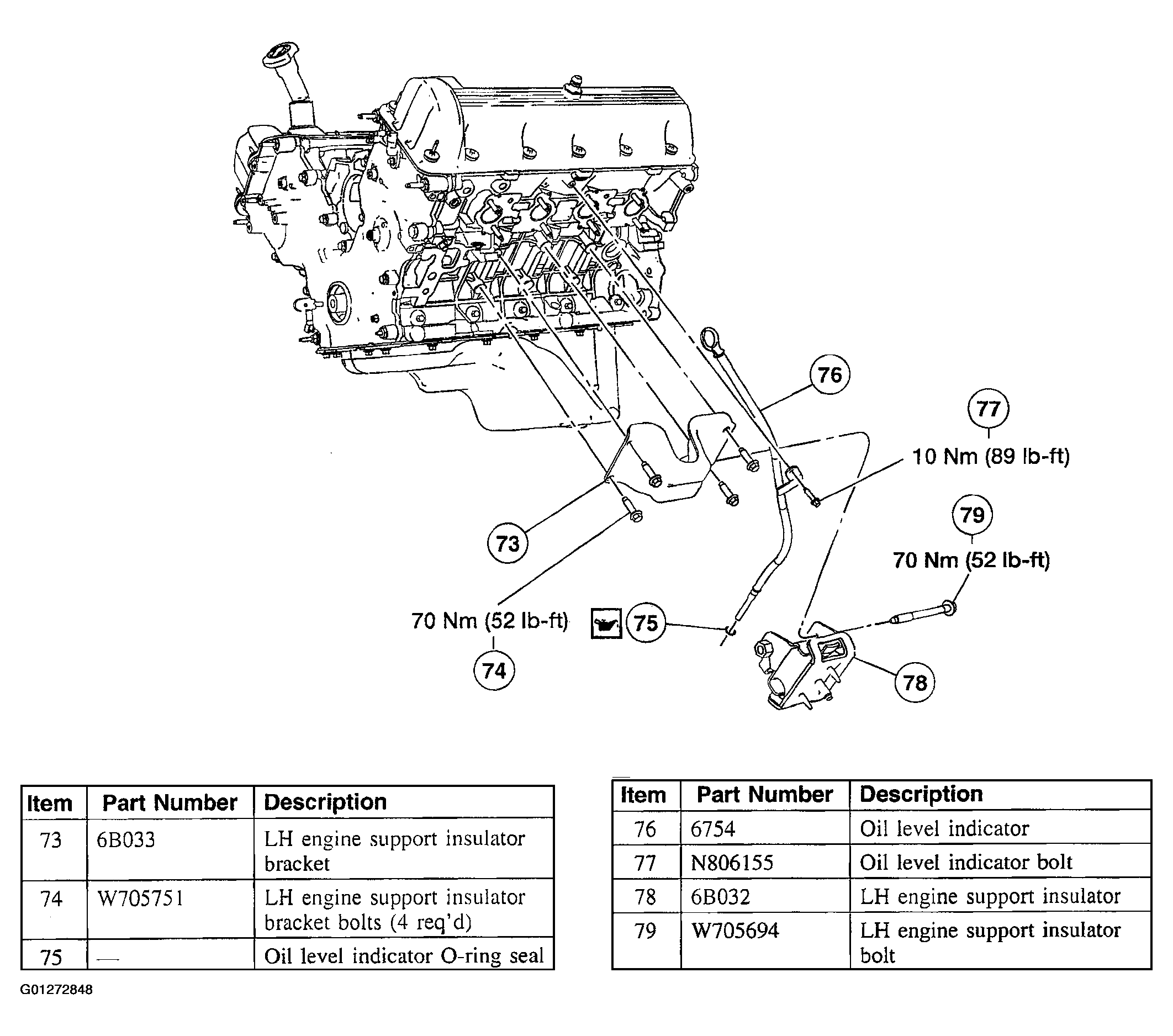

Illustration 10 of 19. Install the components in the order indicated in the following illustration and table.

Fig 14: Engine Assembly Sequence (10 Of 19) With Torque Specification
Courtesy of FORD MOTOR CO.

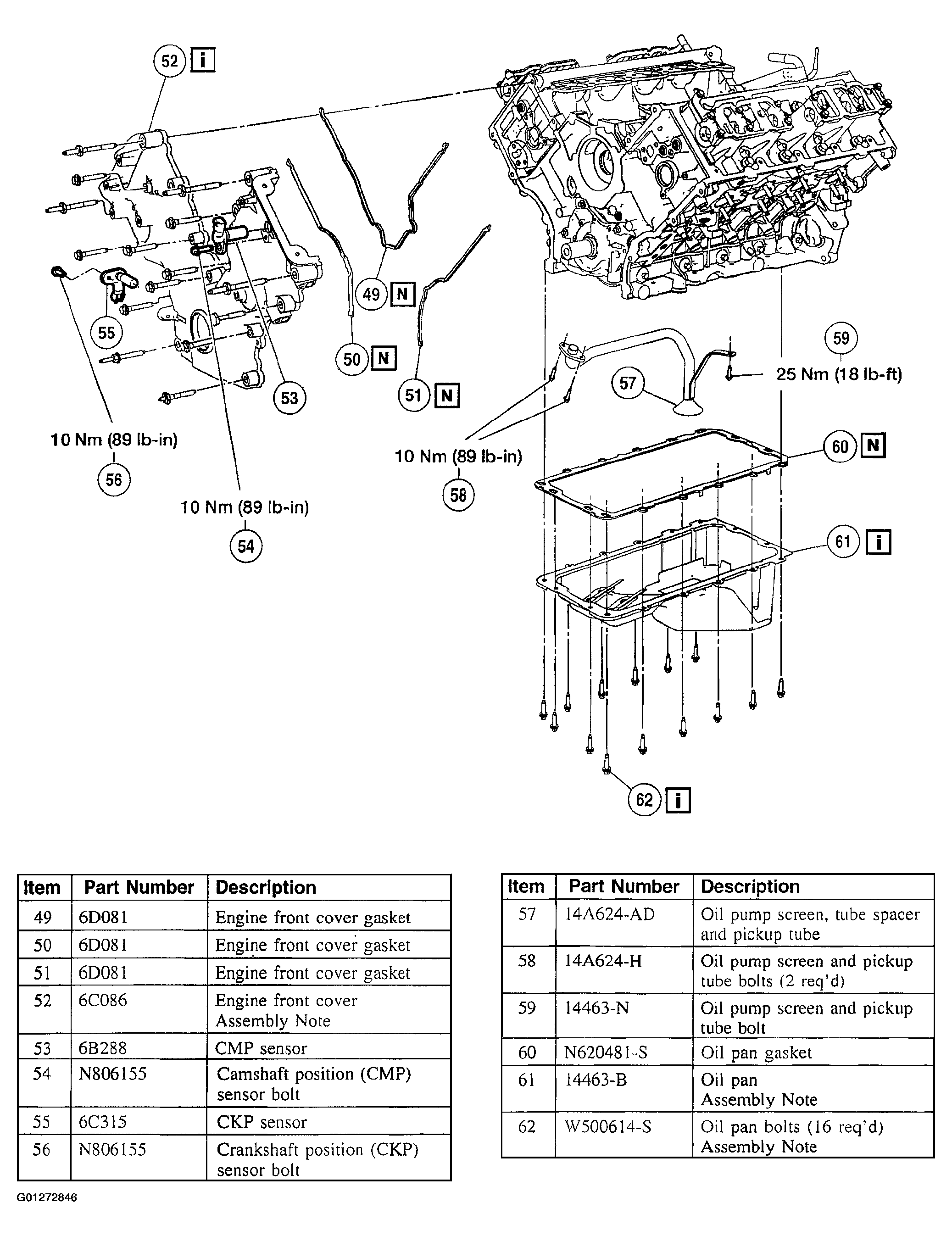

Illustration 11 of 19. Install the components in the order indicated in the following illustration and table.

Fig 15: Engine Assembly Sequence (11 Of 19) With Torque Specification
Courtesy of FORD MOTOR CO.

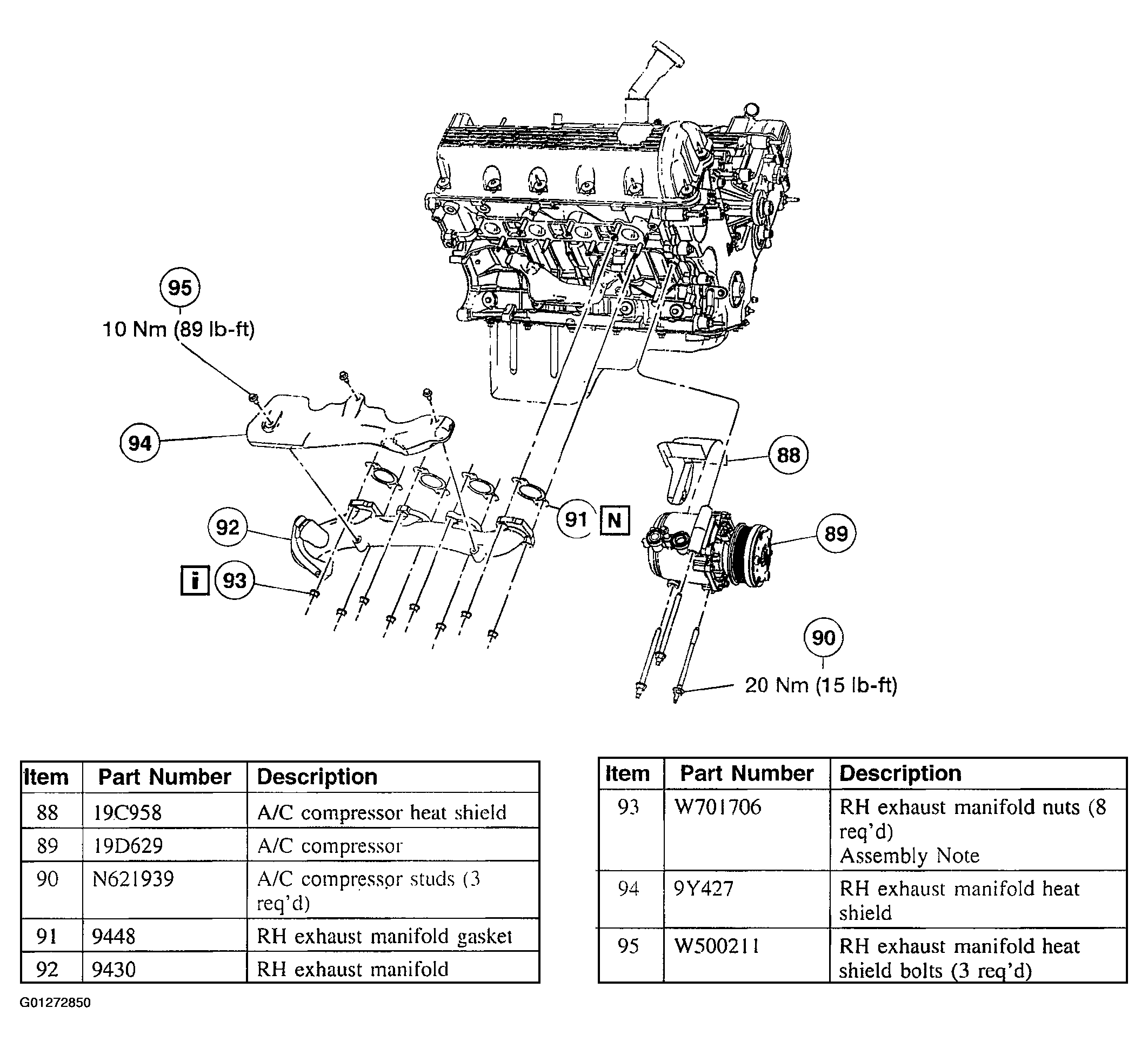

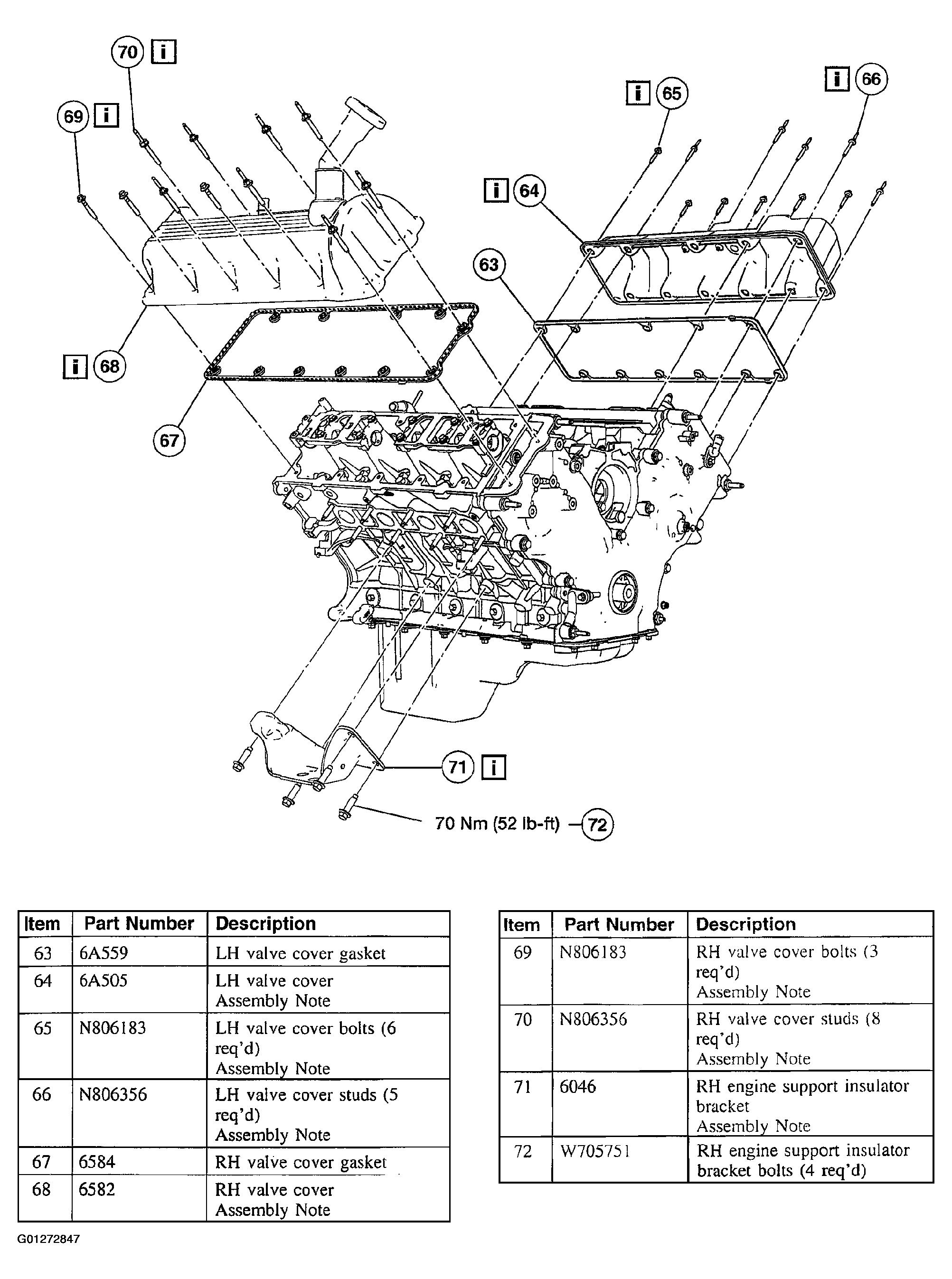

Illustration 12 of 19. Install the components in the order indicated in the following illustration and table.

Fig 16: Engine Assembly Sequence (12 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

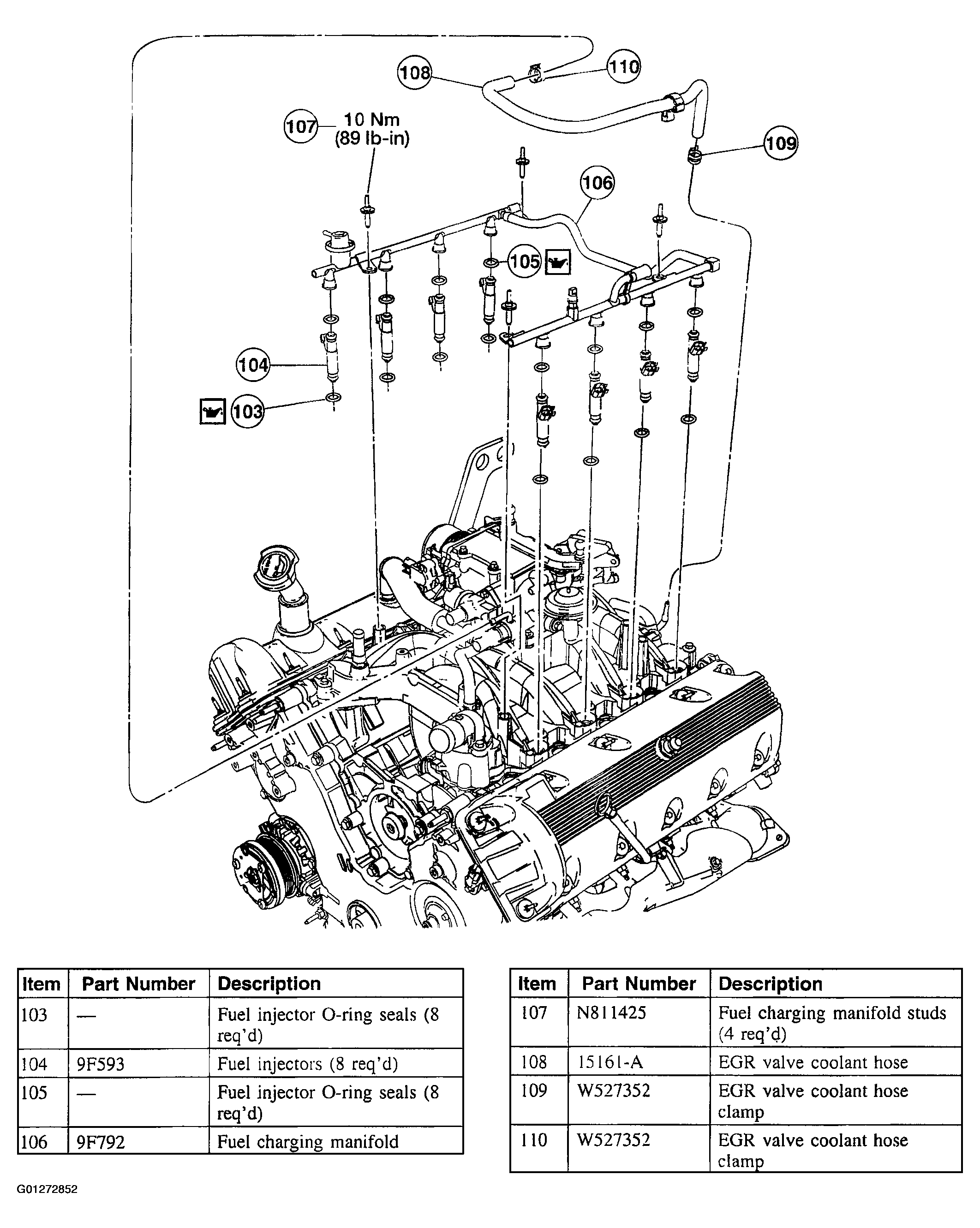

Illustration 13 of 19. Install the components in the order indicated in the following illustration and table.

Fig 17: Identifying Engine Assembly Sequence (13 Of 19)
Courtesy of FORD MOTOR CO.

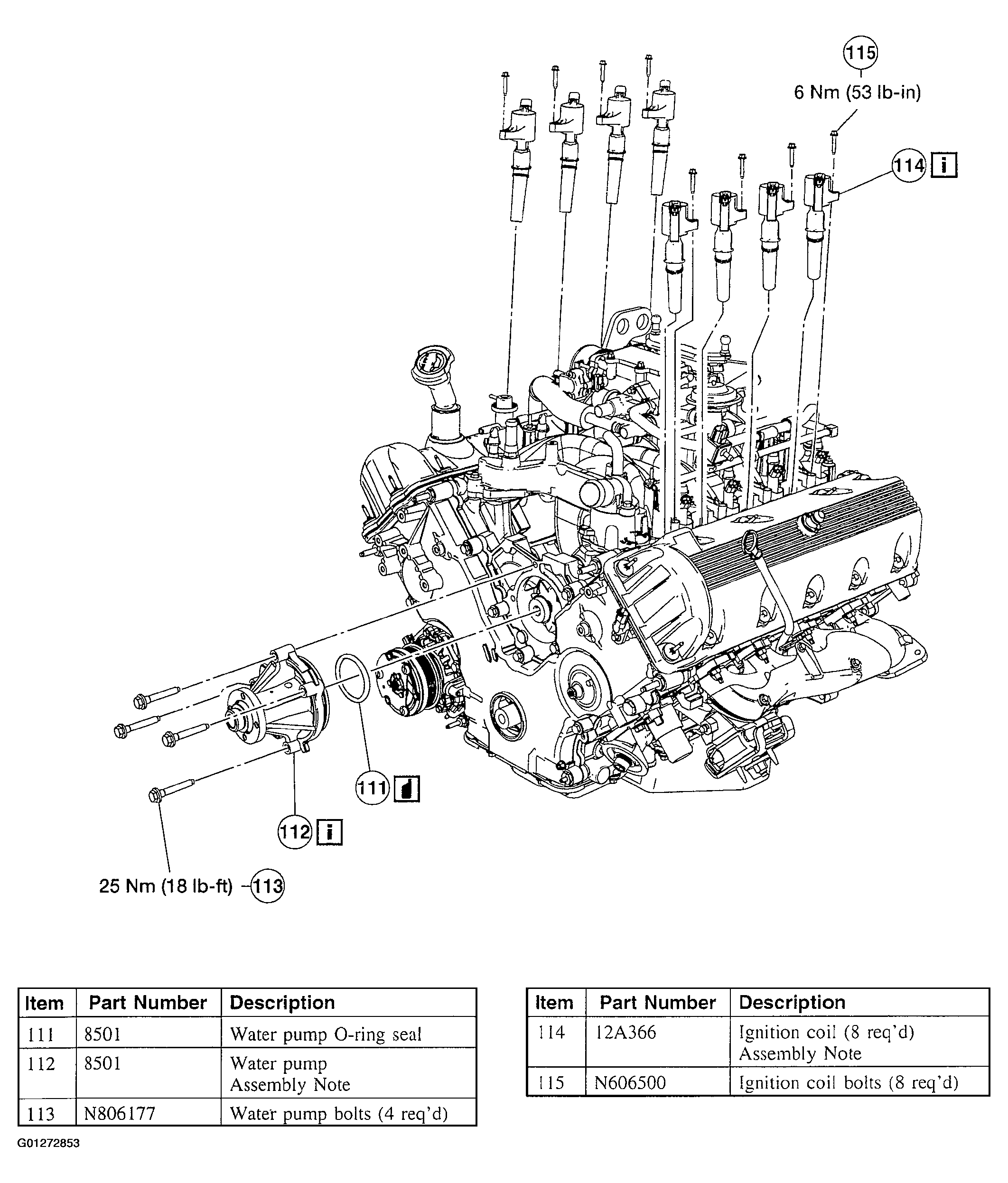

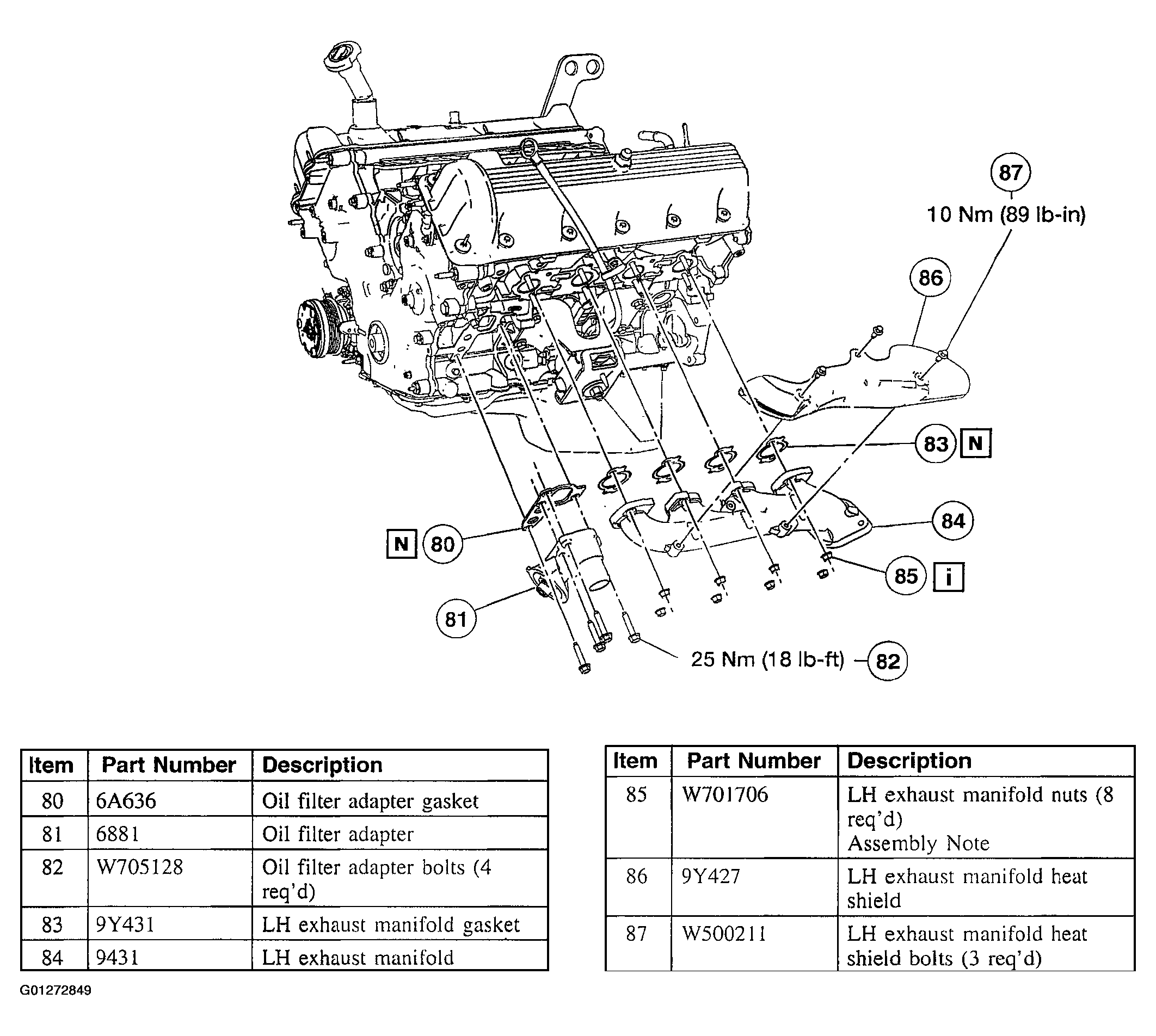

Illustration 14 of 19. Install the components in the order indicated in the following illustration and table.

Fig 18: Engine Assembly Sequence (14 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

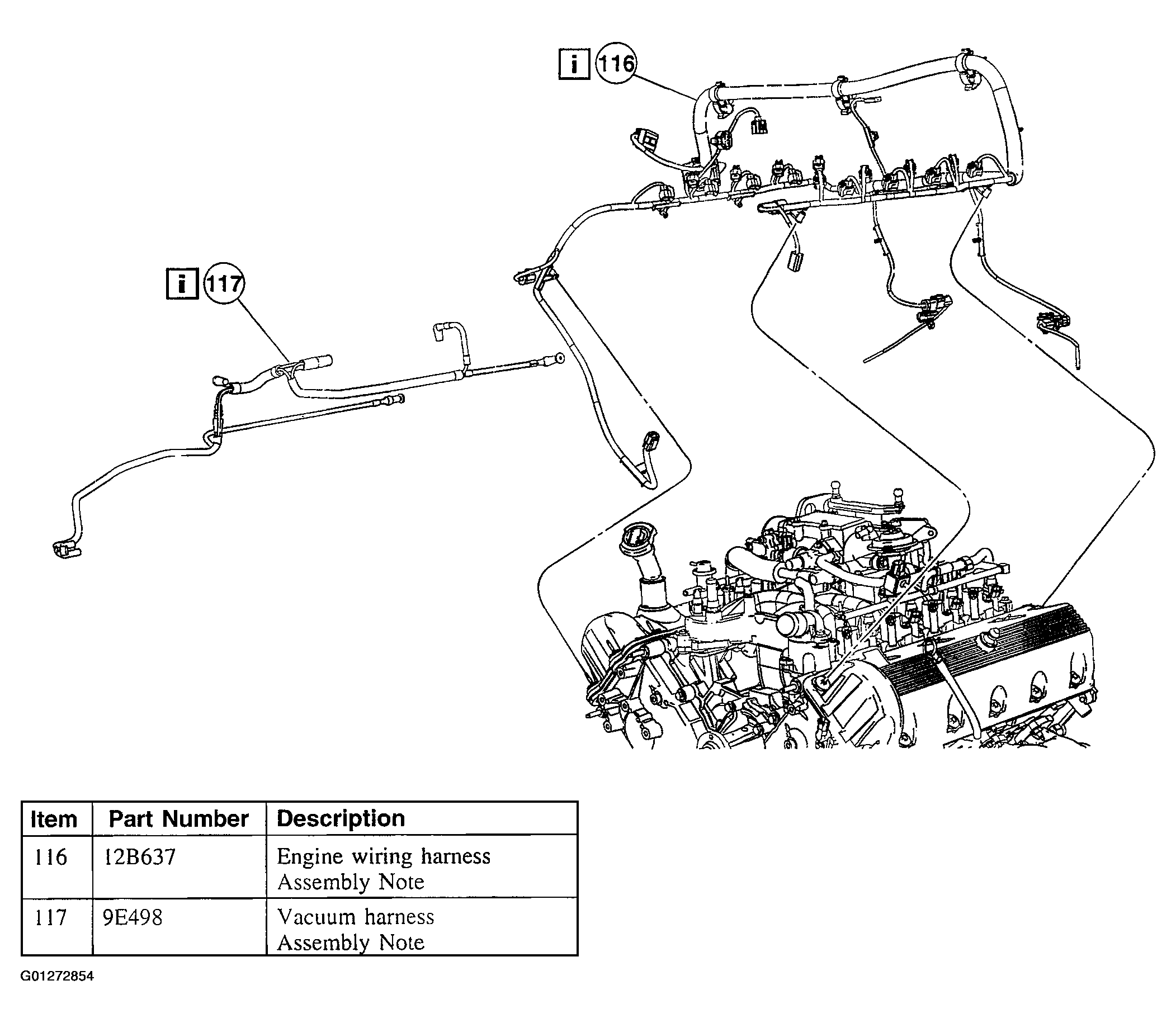

Illustration 15 of 19. Install the components in the order indicated in the following illustration and table.

Fig 19: Engine Assembly Sequence (15 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

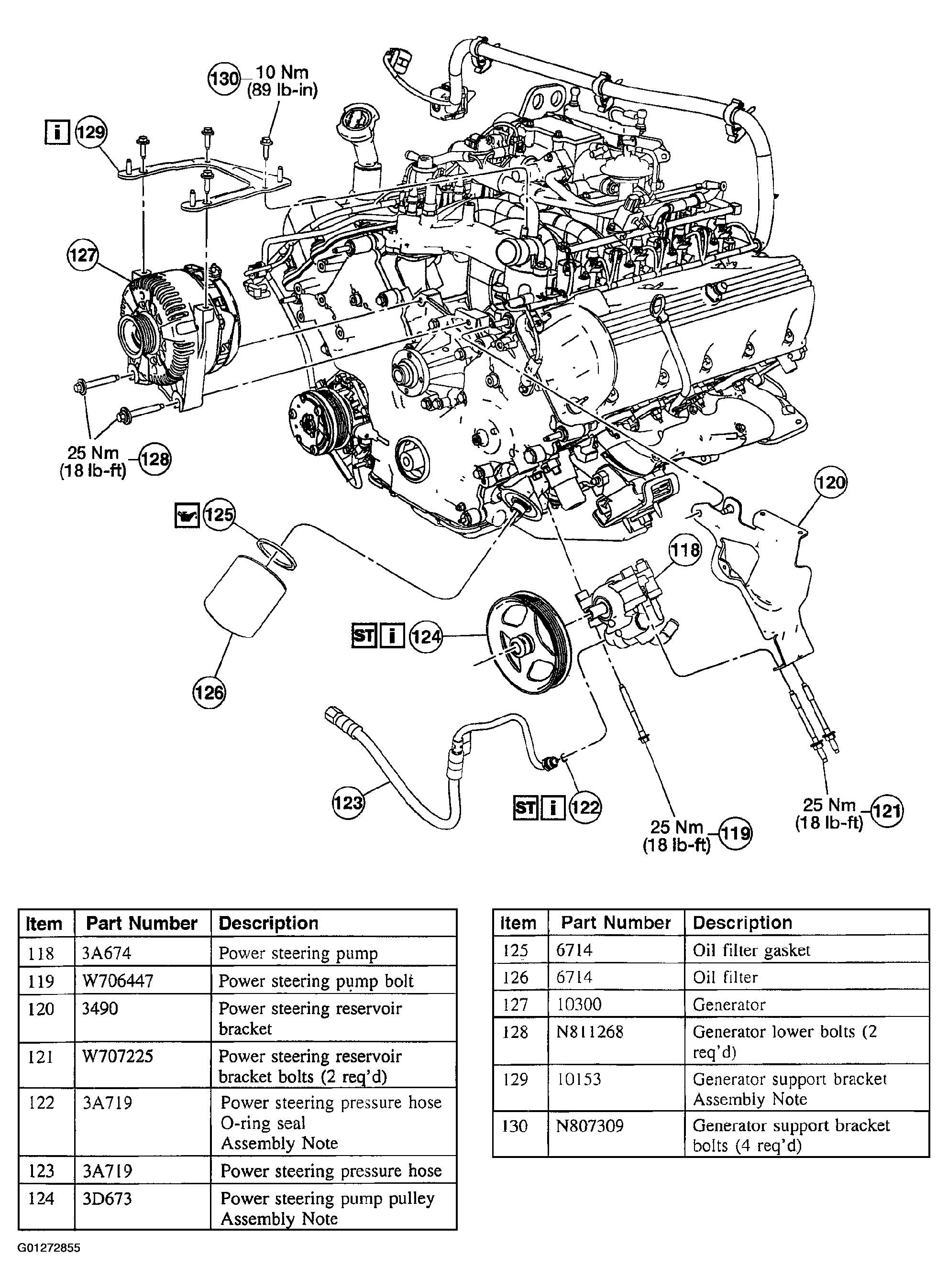

Illustration 16 of 19. Install the components in the order indicated in the following illustration and table.

Fig 20: Engine Assembly Sequence (16 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

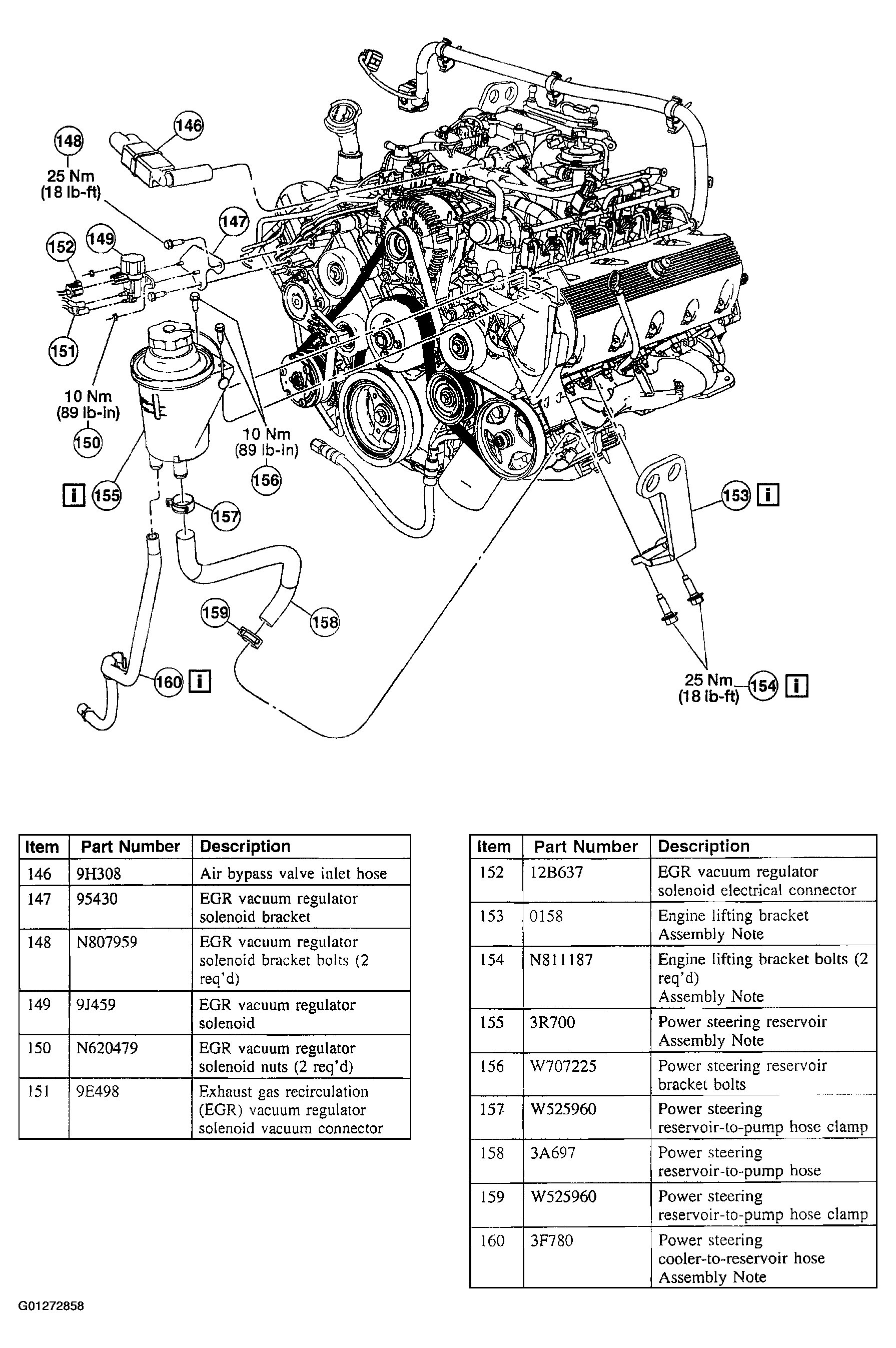

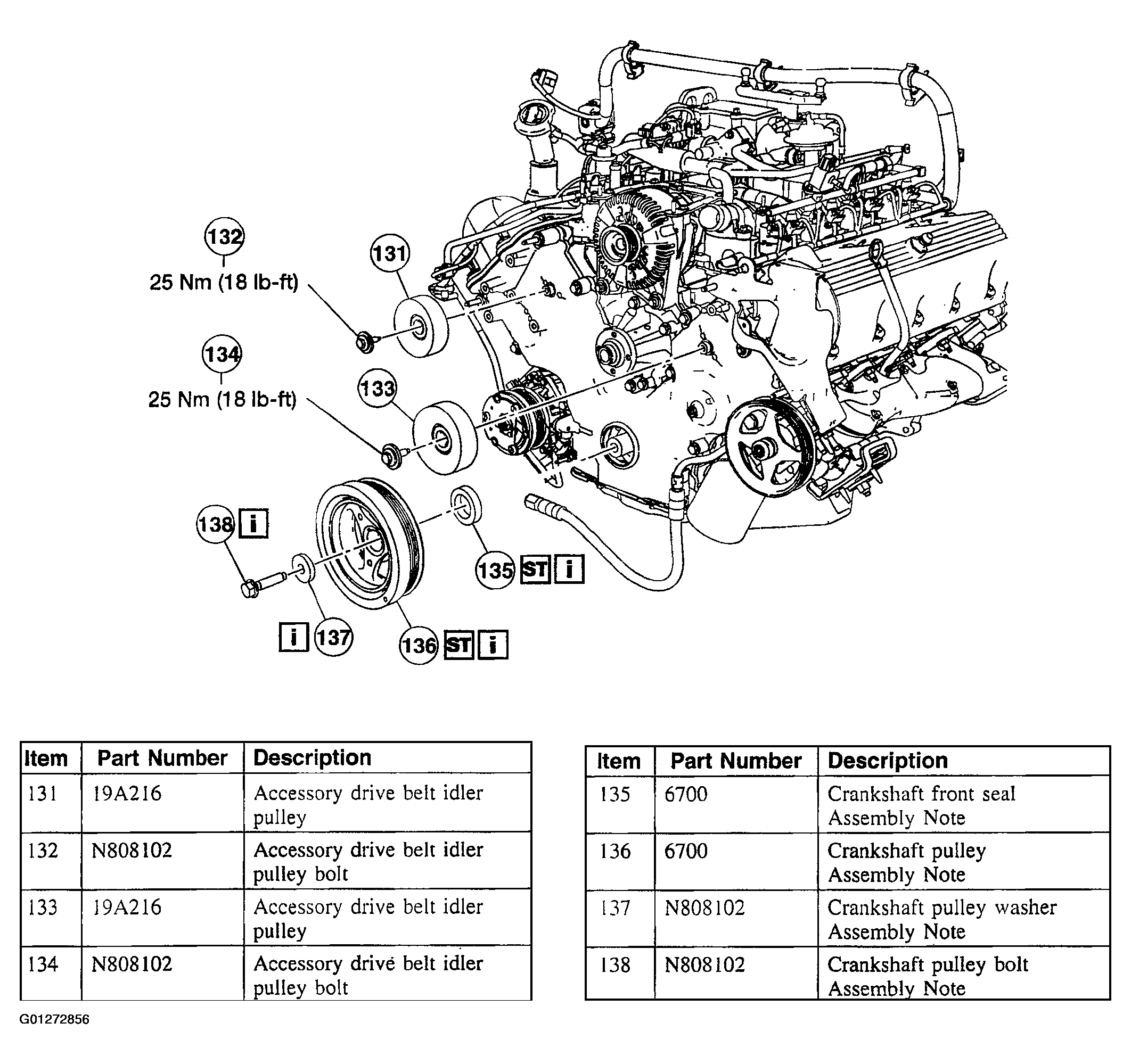

Illustration 17 of 19. Install the components in the order indicated in the following illustration and table.

Fig 21: Engine Assembly Sequence (17 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

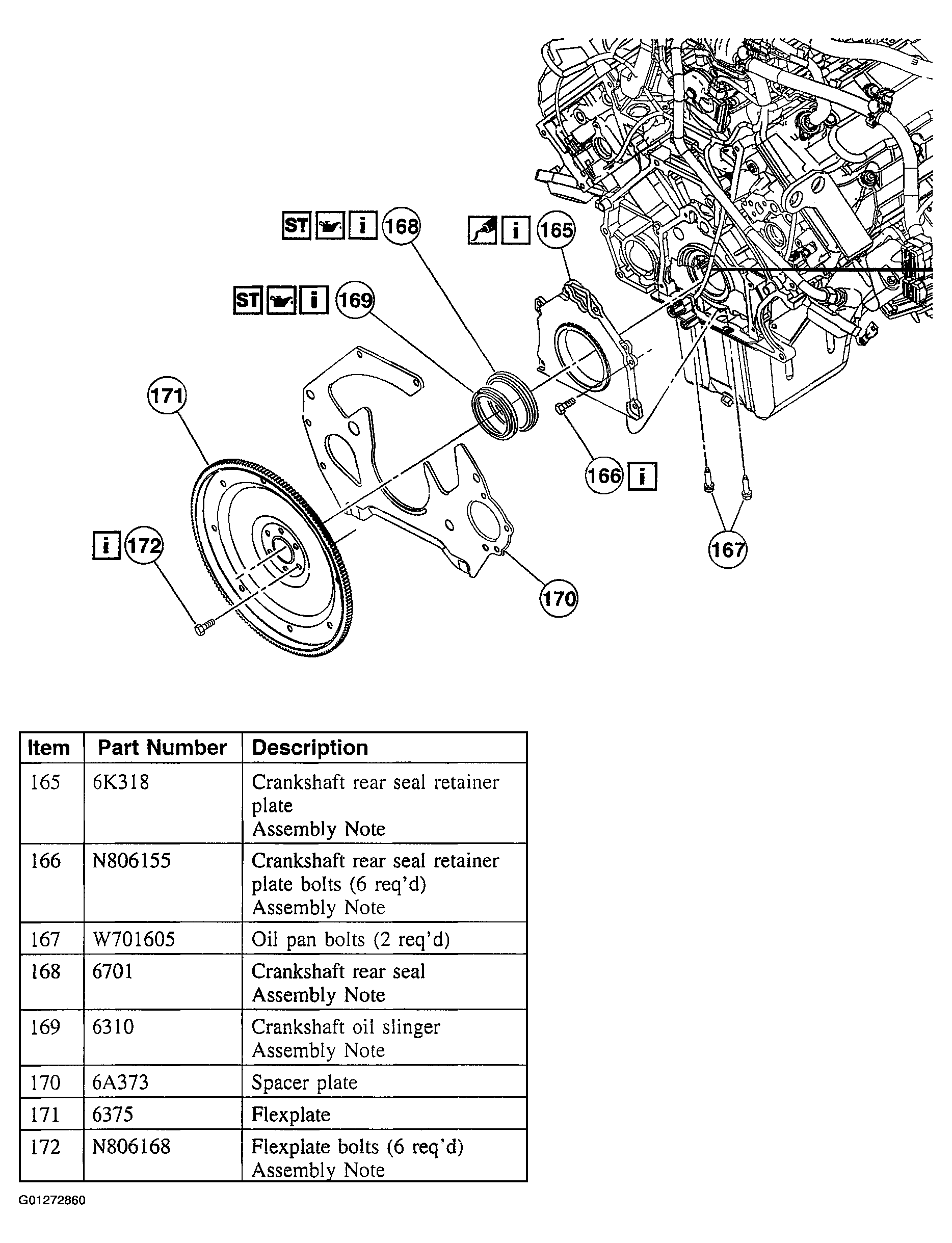

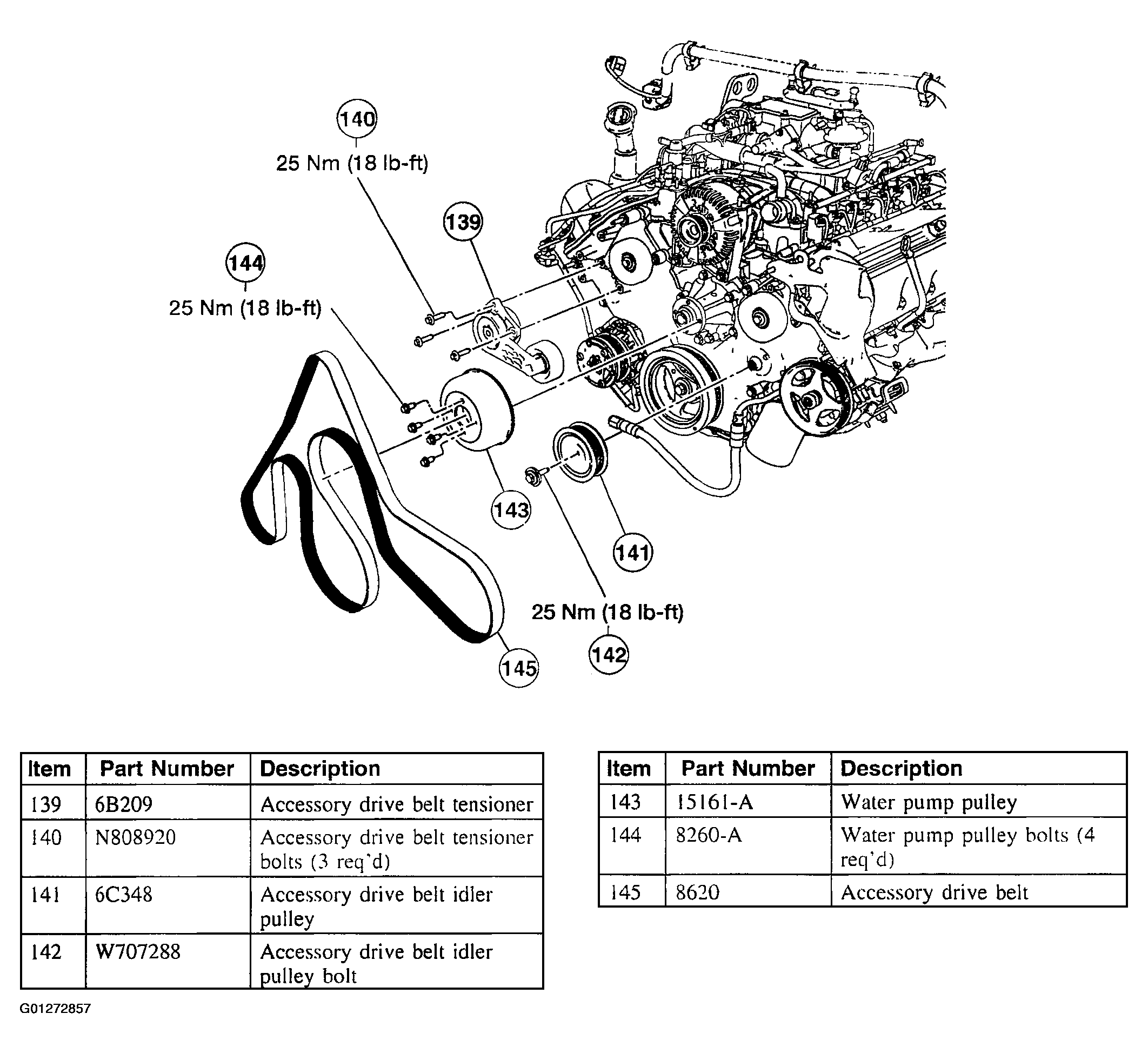

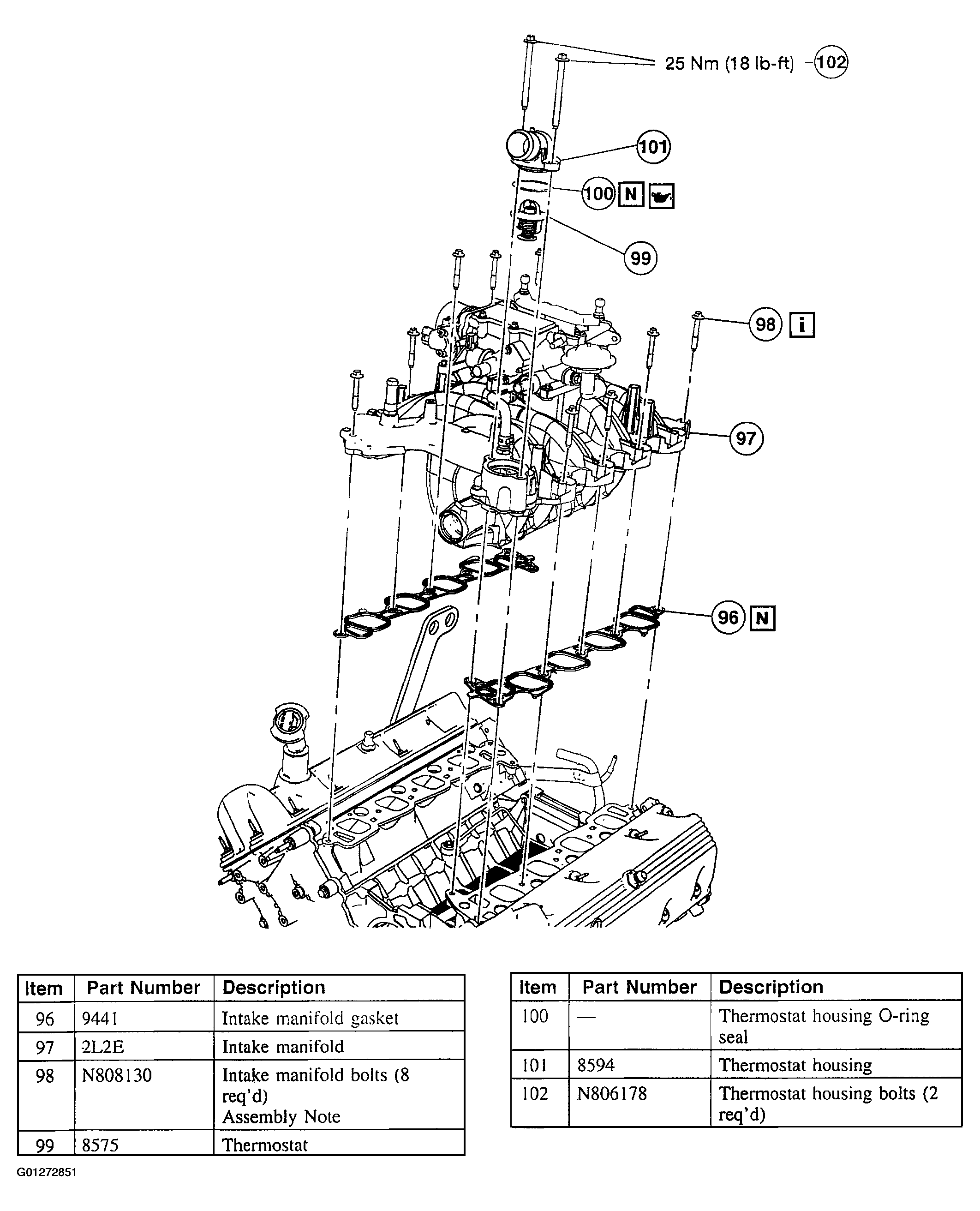

Illustration 18 of 19. Install the components in the order indicated in the following illustration and table.

Fig 22: Engine Assembly Sequence (18 Of 19) With Torque Specifications
Courtesy of FORD MOTOR CO.

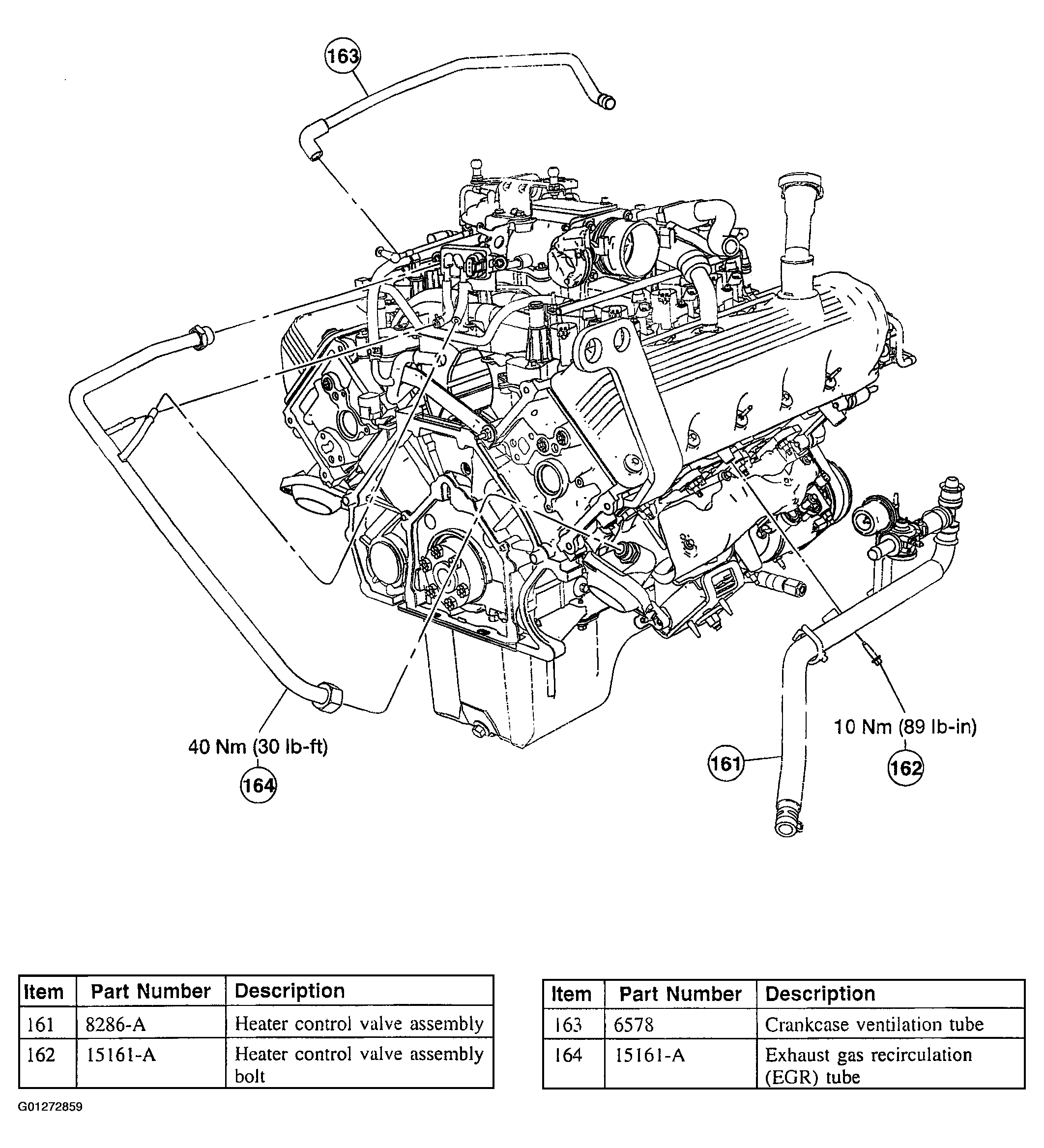

Illustration 19 of 19. Install the components in the order and table. the order indicated in the following illustration and table.

Fig 23: Identifying Engine Assembly Sequence (19 Of 19)
Courtesy of FORD MOTOR CO.
