Ford
›
2003
›
Explorer Sport 4.0 E, 4WD, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Exhaust System
›
Specifications
›
Torque Specifications
Torque Specifications

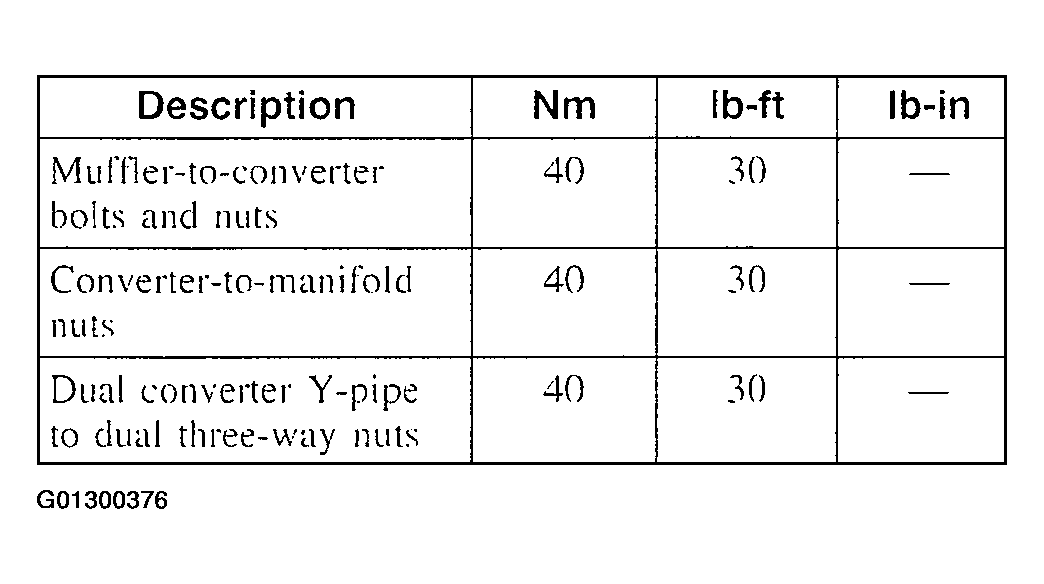

Fig 1: Exhaust System Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

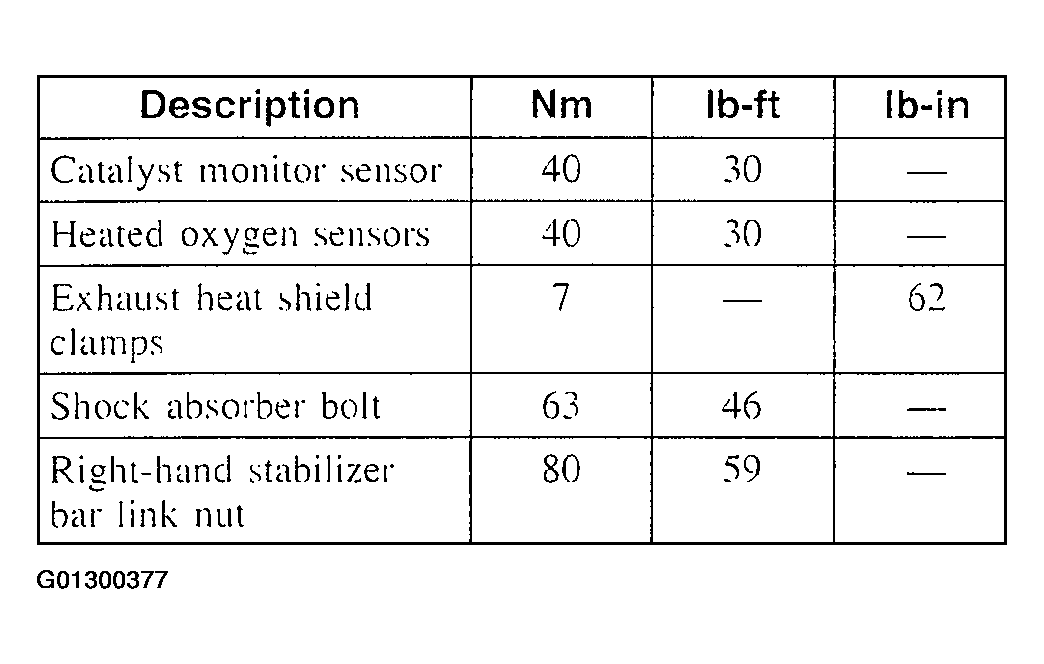

Fig 2: Exhaust System Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
