Diagnostic Flow Chart

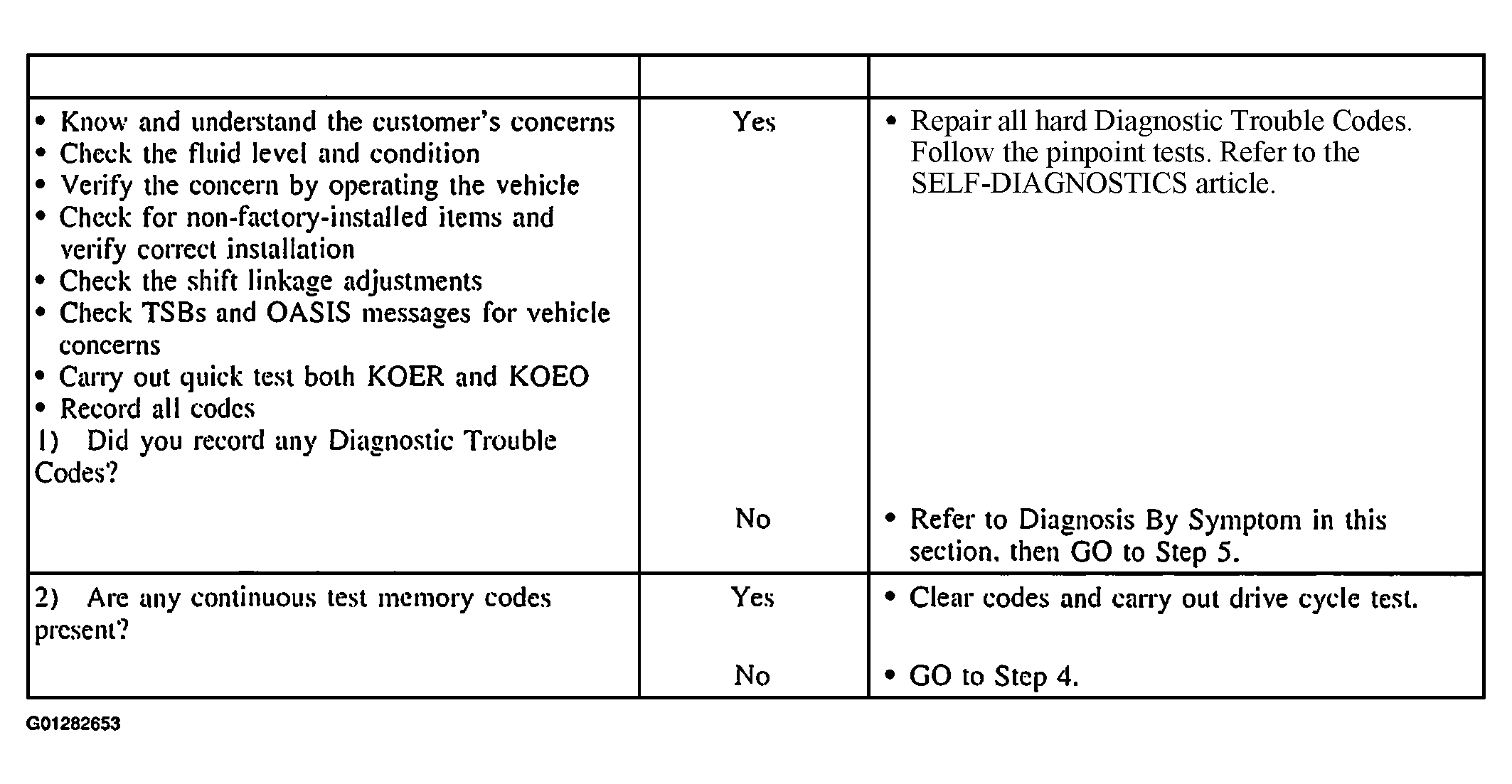

Fig 1: Diagnostic Flow Chart (1 Of 2)
G01282653Courtesy of FORD MOTOR CO.

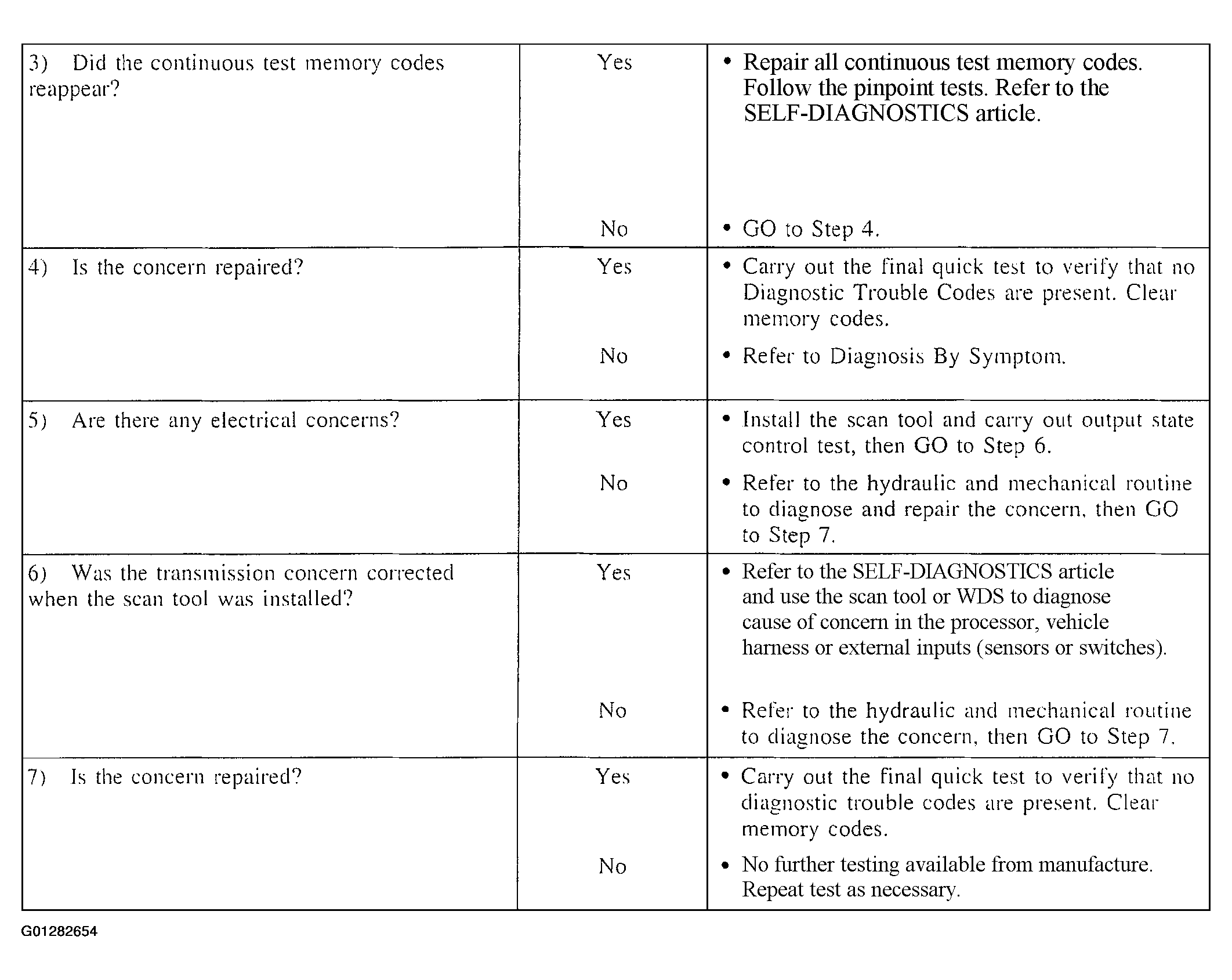

Fig 2: Diagnostic Flow Chart (2 Of 2)
G01282654Courtesy of FORD MOTOR CO.
