Heat Shield: Removal

  1. Raise and support the vehicle.
  2. If equipped, remove the transmission servo heat shield.
    1. Remove the transmission servo heat shield nut.
    2. Remove the transmission servo heat shield.

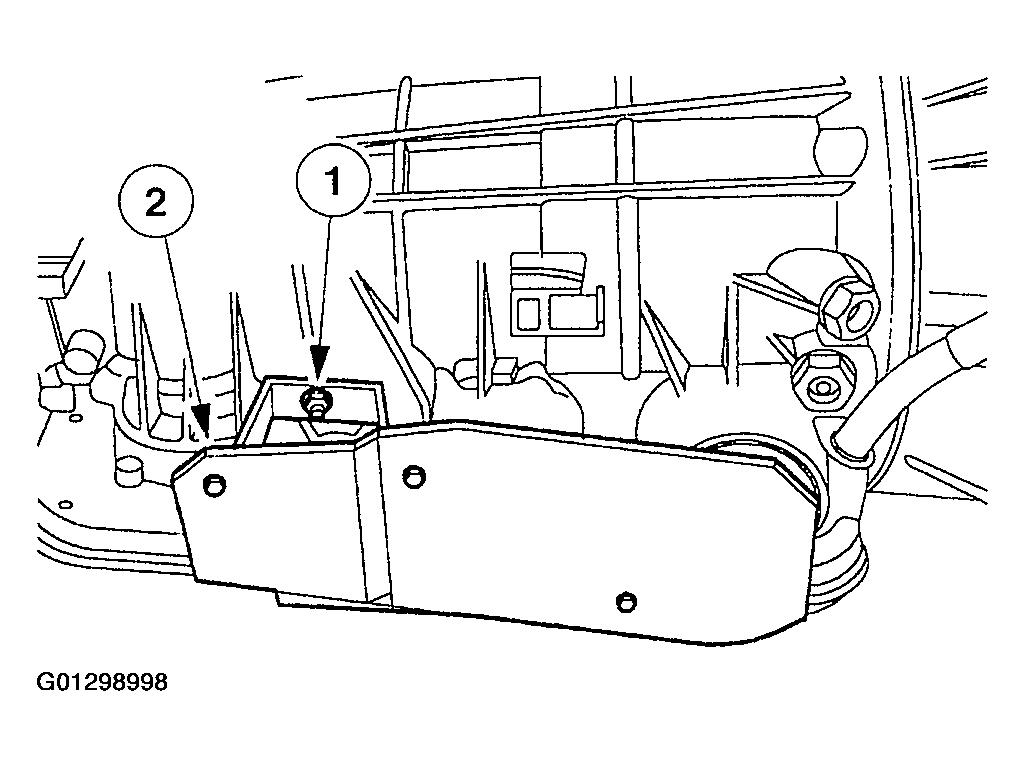

    Fig 1: Removing Transmission Servo Heat Shield Nut
    G01298998Courtesy of FORD MOTOR CO.
