Pinpoint Test C
Pinpoint Test C

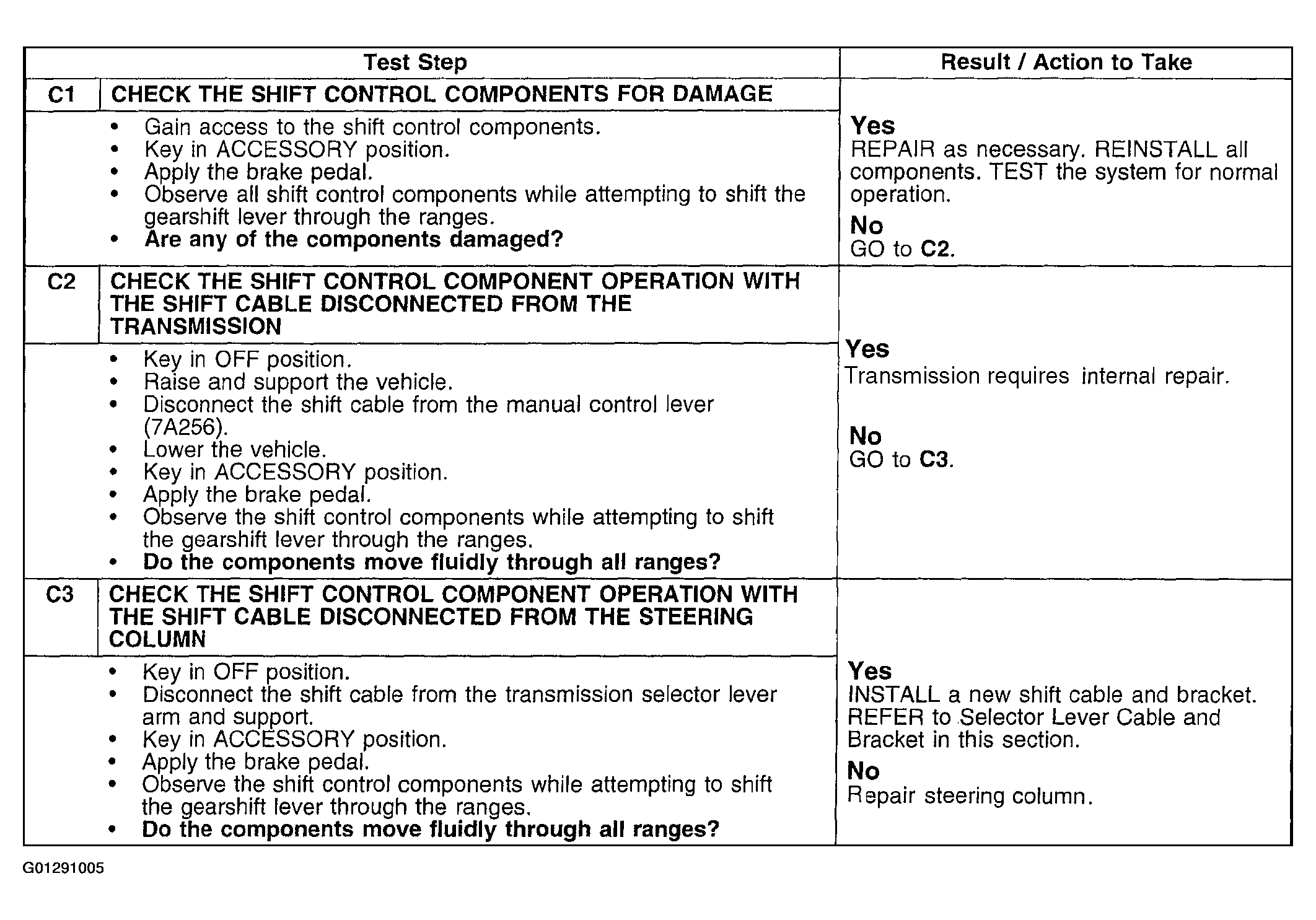

Fig 1: Pinpoint Tests C1-C3: Control Linkage Is Binding
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
