Valve - Spring Installed Length

Measure the installed length of each valve spring.
- For additional information, refer to SPECIFICATIONS .
- If out of specification, install new components.

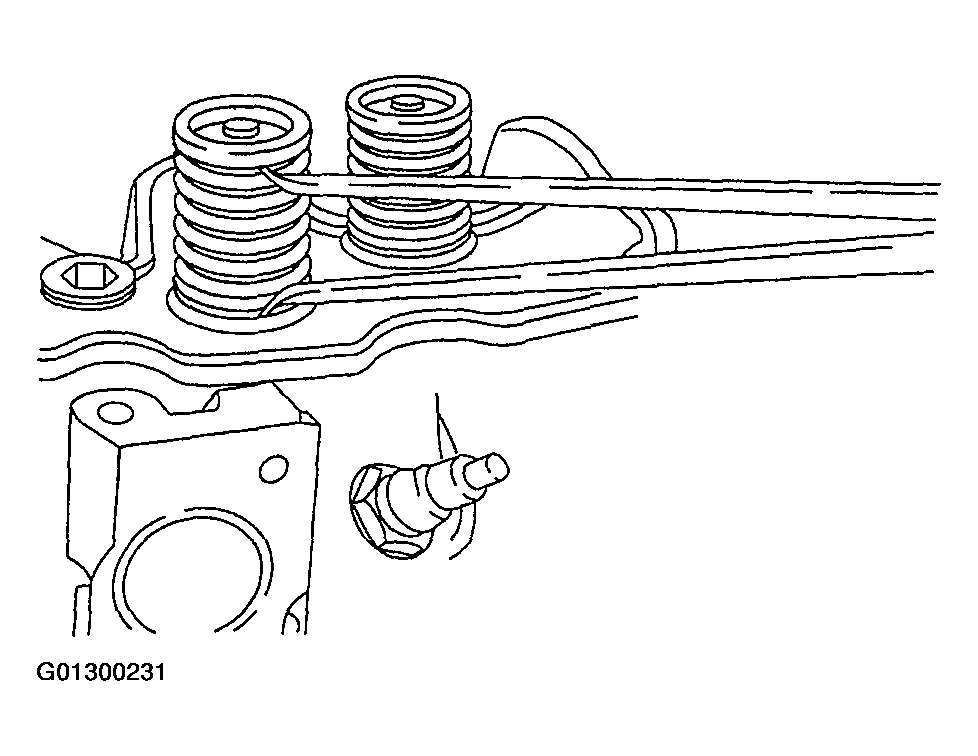

Fig 1: Measuring Length Of Valve Spring
Courtesy of FORD MOTOR CO.
