Climate Control System: Notes

WARNING: This page is about a different car, the 2004 Ford Explorer Sport Trac. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the SYSTEM WIRING DIAGRAMS article for schematic and connector information.

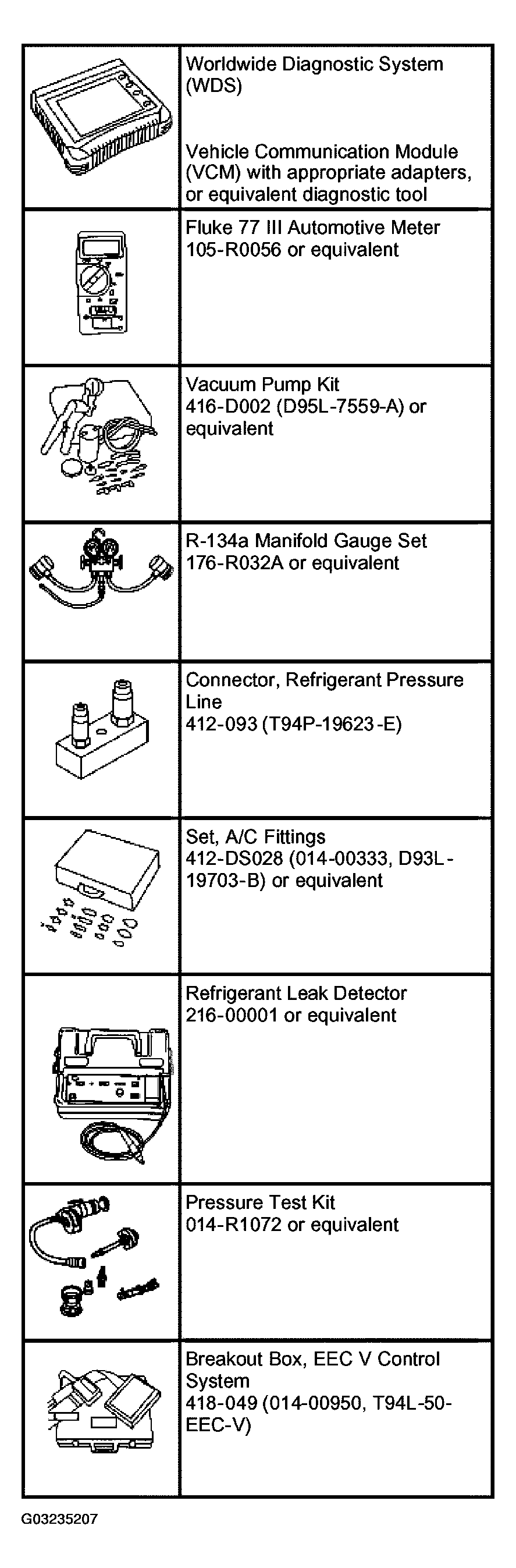

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Fig 2: Vacuum Schematic - Manual Climate Control System

Courtesy of FORD MOTOR CO.

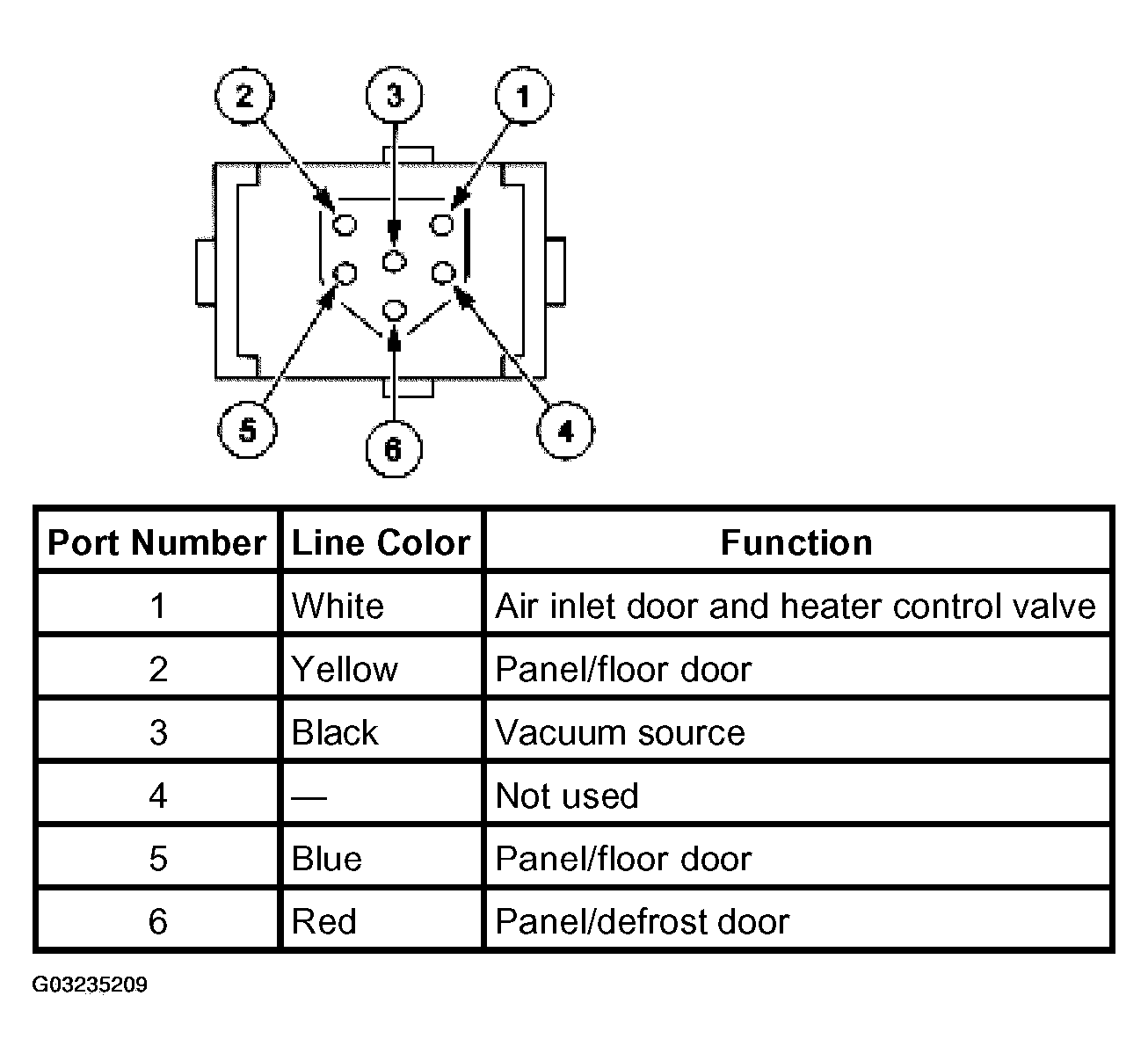

Fig 3: Vacuum Connector End View - Manual A/C

Courtesy of FORD MOTOR CO.
