Torque Converter Impeller to Pump Stator Interference Check
NOTE:
The bearing type pump is shown, the seal type pump is similar. Use this procedure for transmissions equipped with a bearing or seal type converter housing fluid pump.

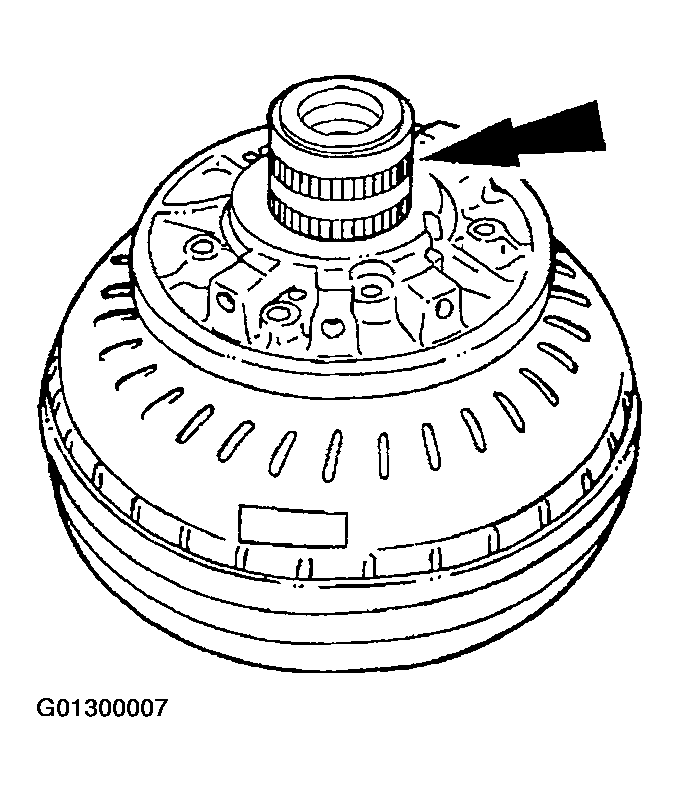

- Install fluid pump support into torque converter. Engage splines of the one-way clutch inner race with the mating splines of the front pump support.

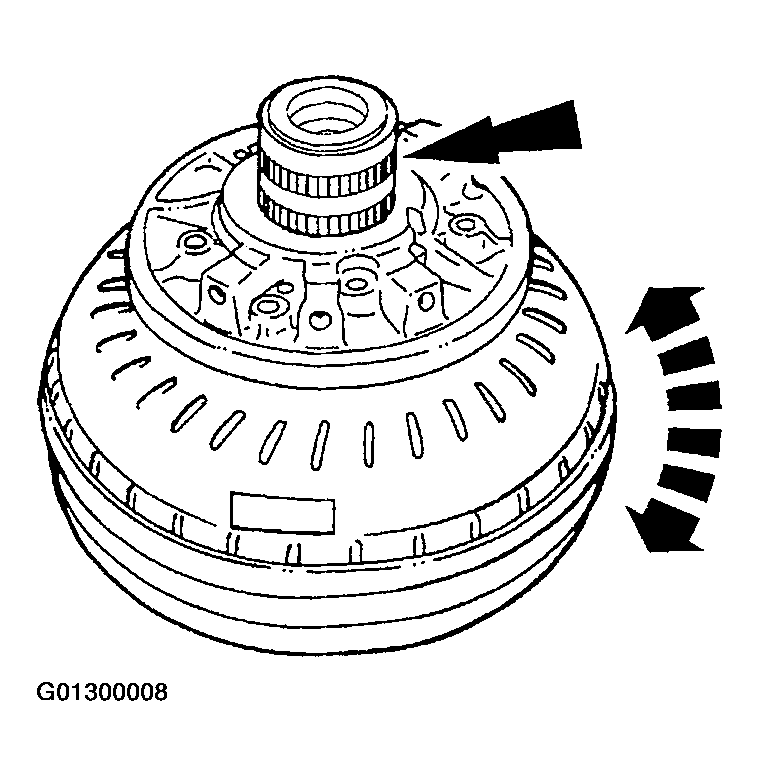

- While holding the fluid pump support stationary, rotate the torque converter clockwise and counter-clockwise. The torque converter should rotate freely with no signs of scraping. If there are signs of scraping, install a new or remanufactured torque converter.
