Line Pressure Chart

NOTE: Prior to using this chart, you should check the transmission identification tag. Some early built units will use a different specification.

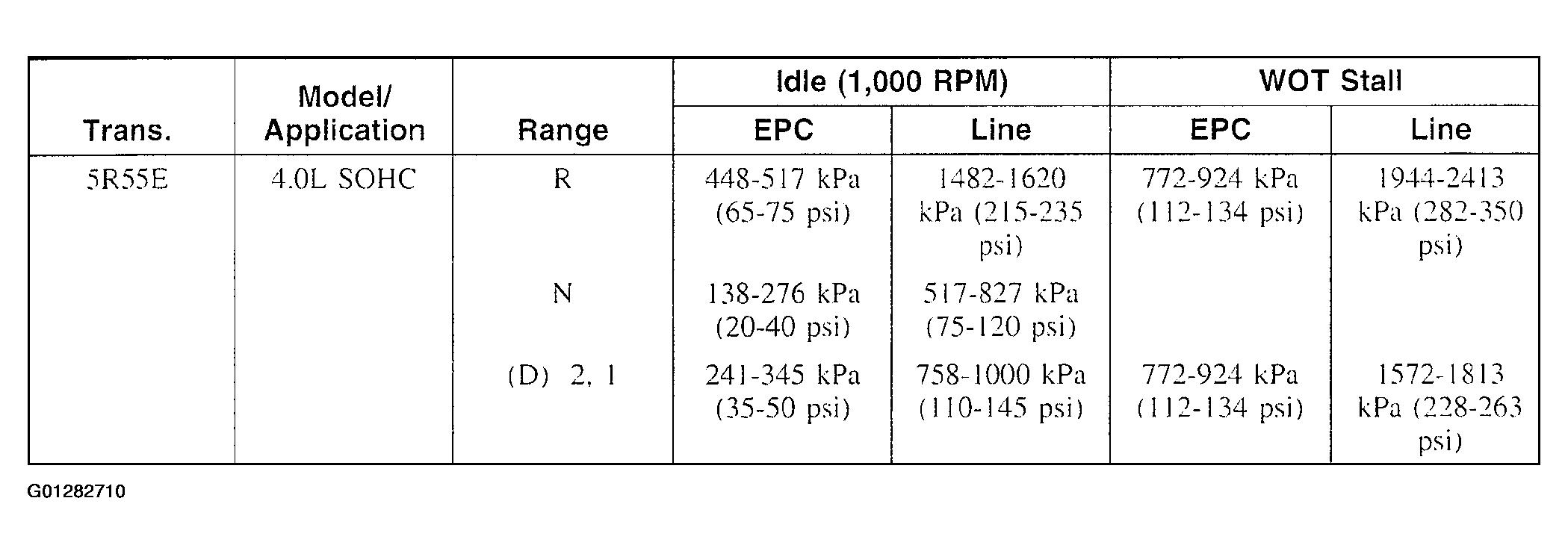

Fig 1: Line Pressure Chart

Courtesy of FORD MOTOR CO.

If line pressure is not within specifications, check EPC pressure.

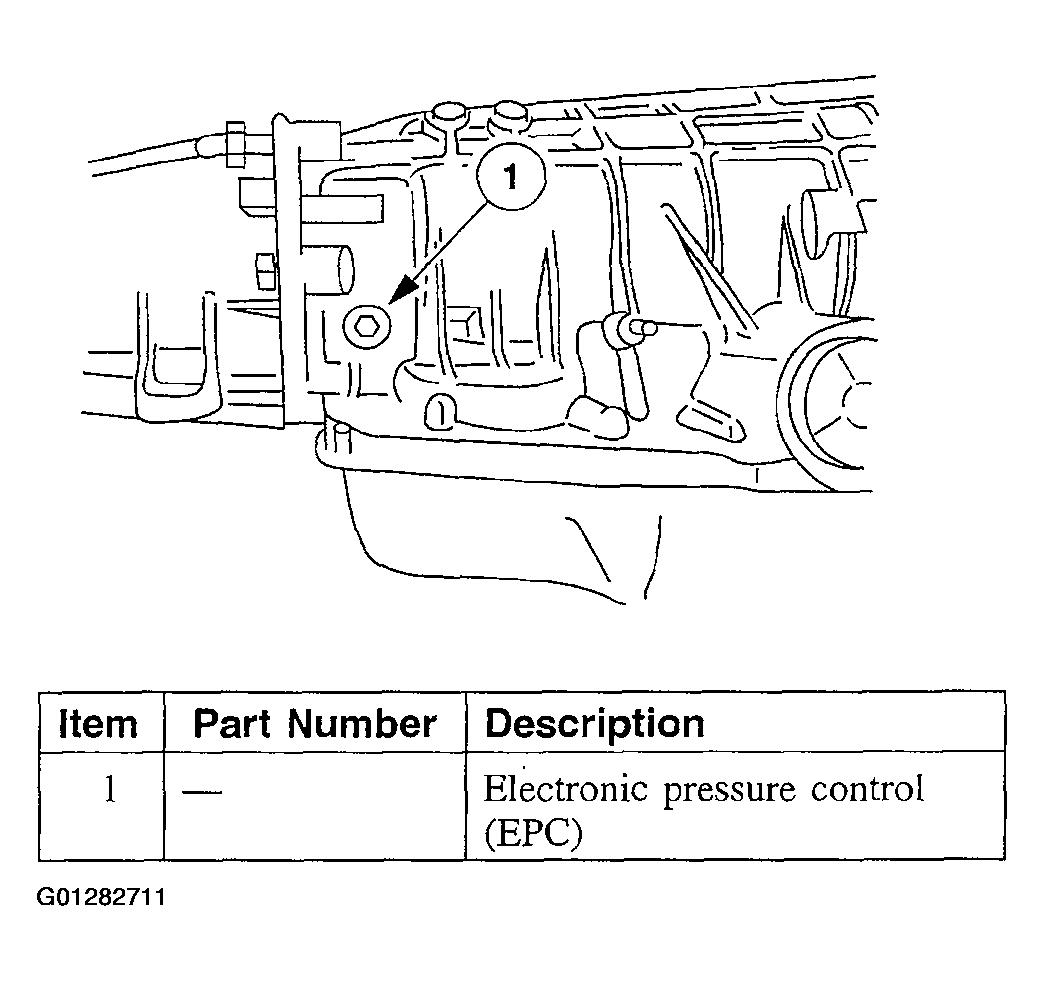

Fig 2: Identifying Electronic Pressure Control (EPC)
Courtesy of FORD MOTOR CO.
Connect Pressure Gauge to EPC pressure tap.
Start the engine, increase and maintain 1,000 engine RPM and check EPC pressure. See the LINE PRESSURE CHART for specification.
If EPC pressure is not within specification, GO to PINPOINT TEST E to diagnose EPC operation. If EPC operation is OK, see the LINE PRESSURE DIAGNOSIS CHART for line pressure concern causes.
