Diagnostic Flow Chart

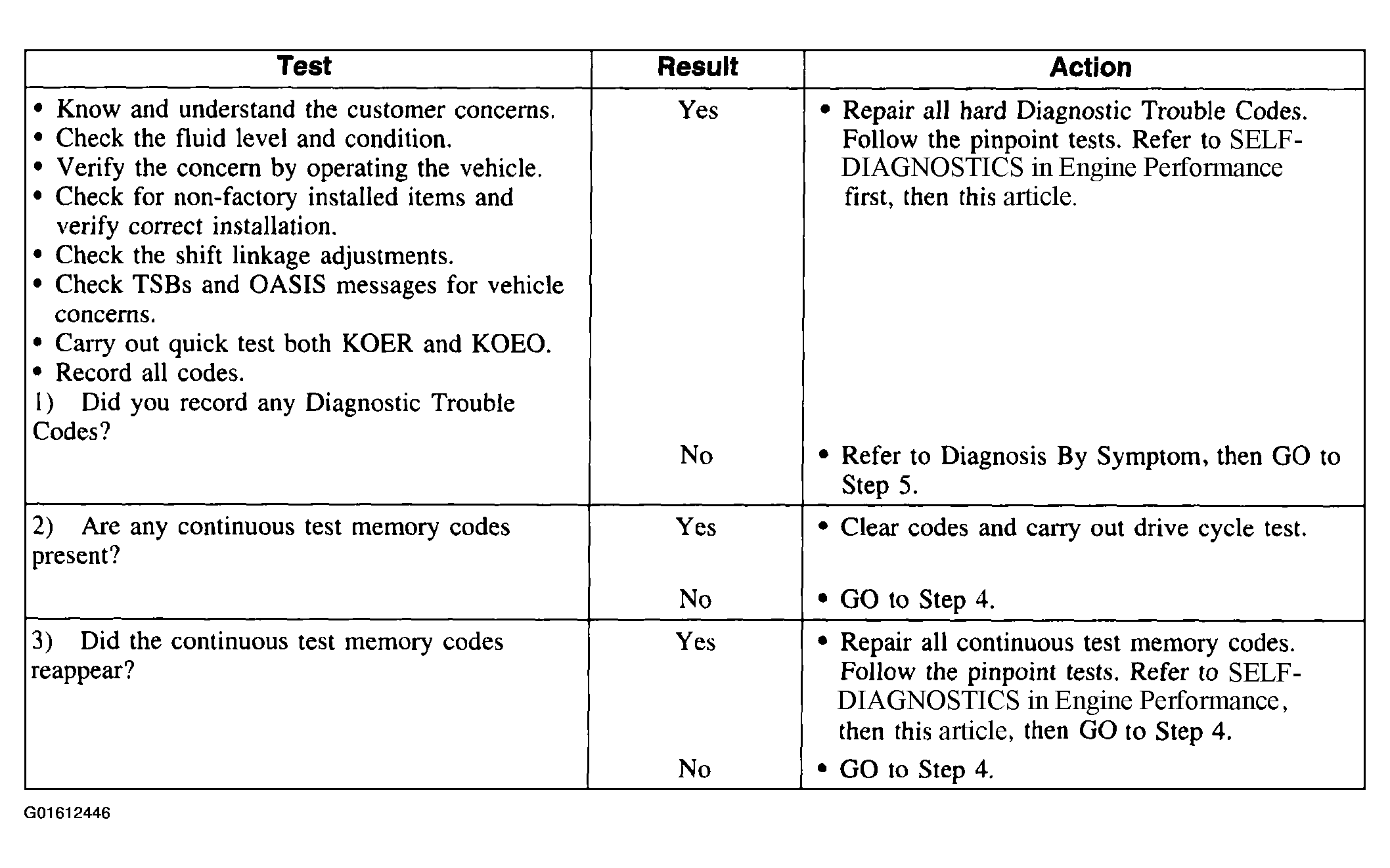

Fig 1: Diagnostic Flow Chart (1 Of 2)
G01612446Courtesy of FORD MOTOR CO.

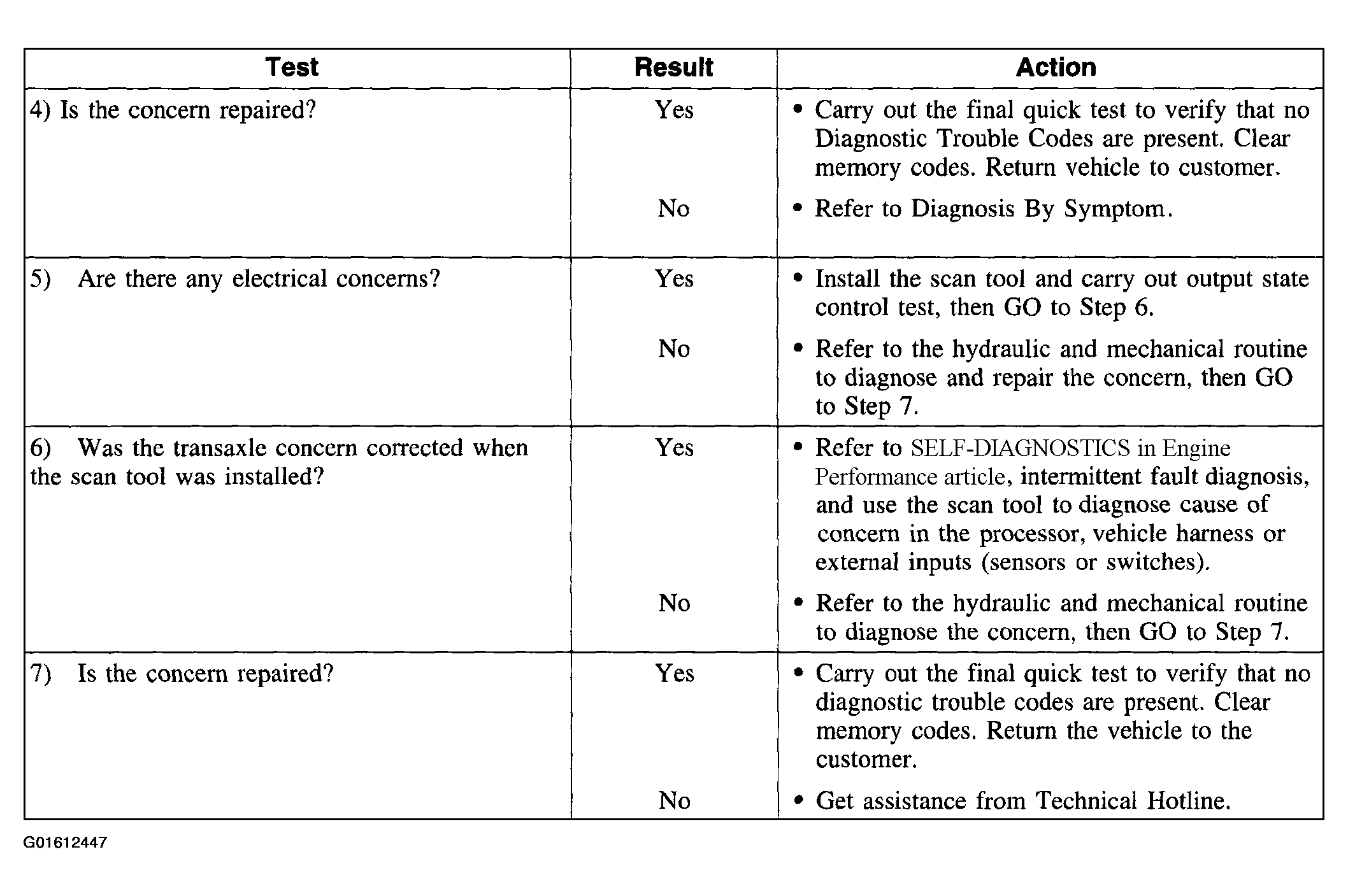

Fig 2: Diagnostic Flow Chart (2 Of 2)
G01612447Courtesy of FORD MOTOR CO.
