Speed Control Switch: Removal

  1. Remove the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Disconnect the speed control switch electrical connector.

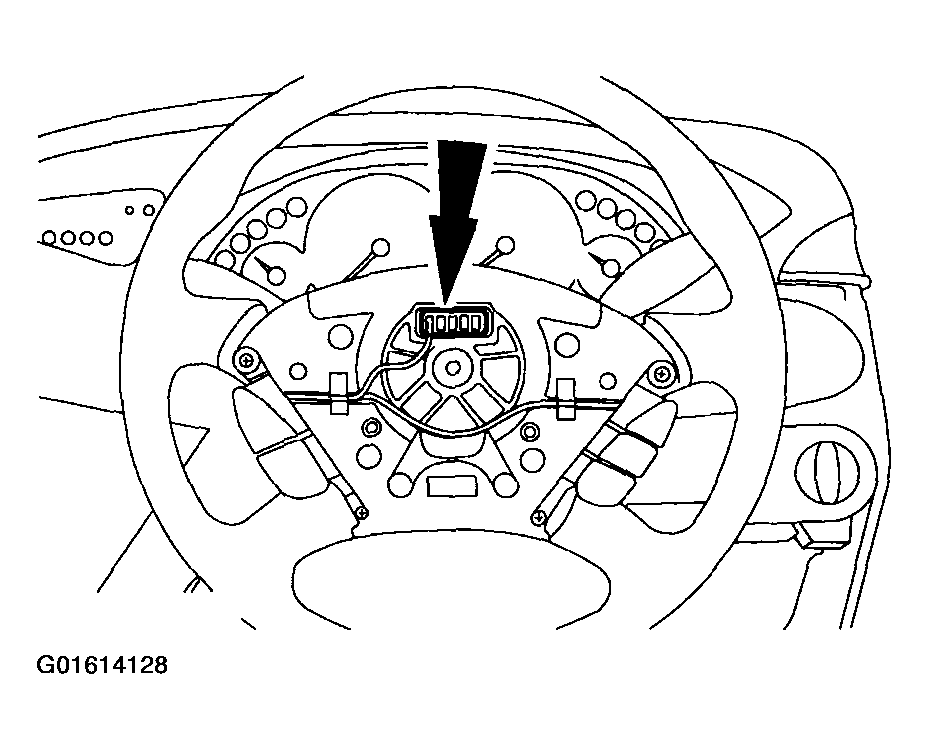

    Fig 1: Disconnecting Speed Control Switch Electrical Connector
    G01614128Courtesy of FORD MOTOR CO.
  3. Remove the speed control switches.

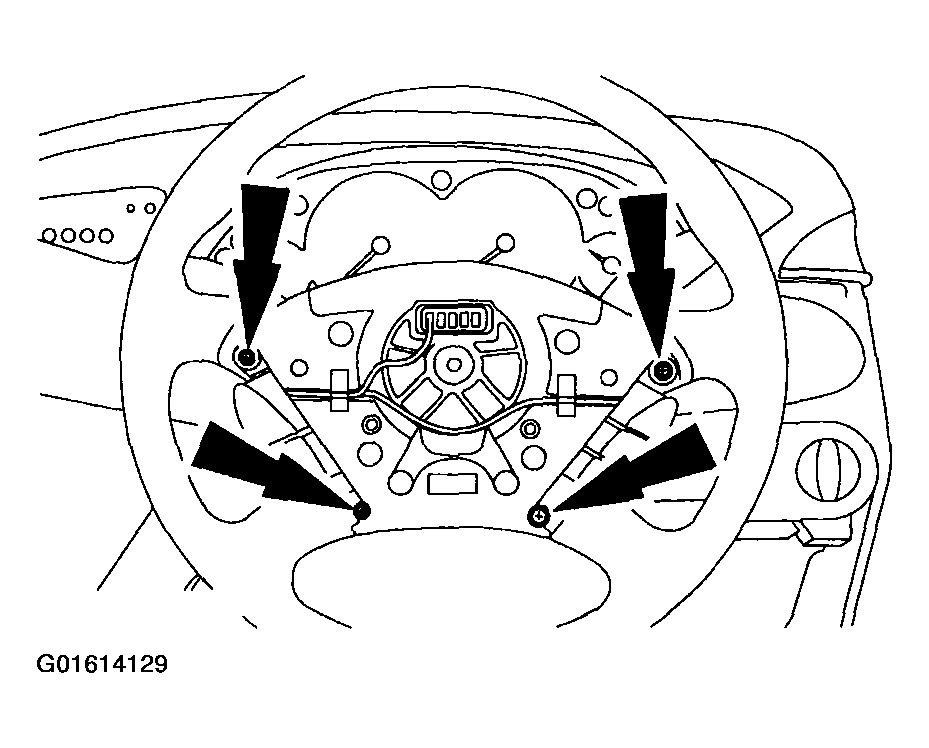

    Fig 2: Removing Speed Control Switches
    G01614129Courtesy of FORD MOTOR CO.
