Hydraulic Control Unit (HCU): Installation

NOTE: After installation, bleed the brake system. For additional information, refer to BLEEDING BRAKE SYSTEM .
Fig 1: Identifying Hydraulic Control Unit
Courtesy of FORD MOTOR CO.

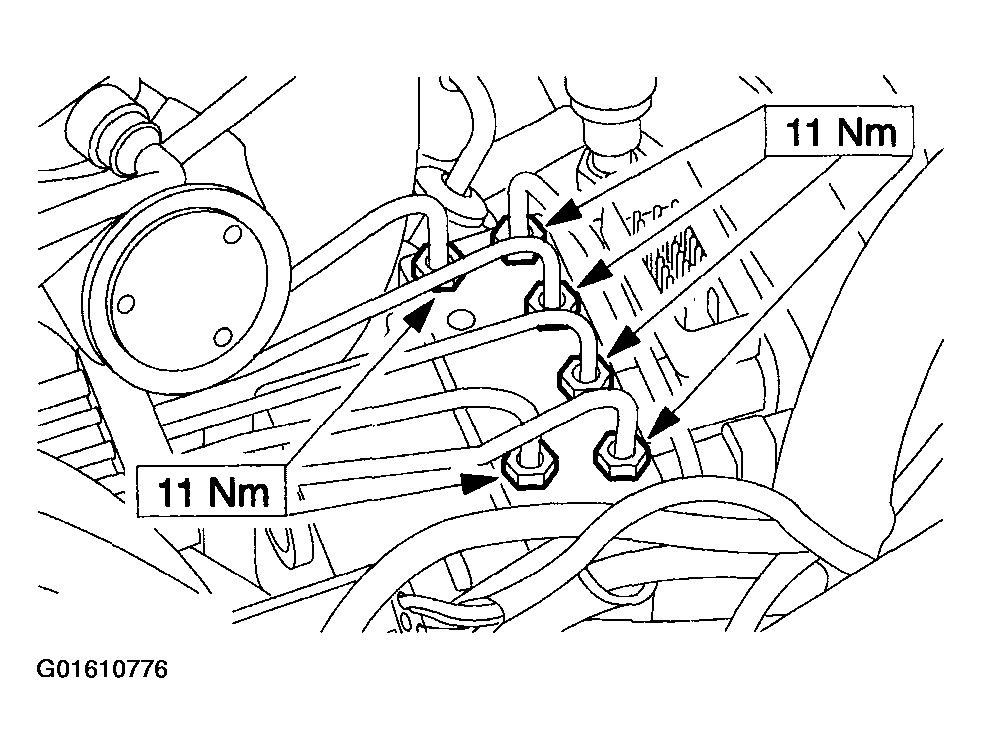

Fig 2: Installing Master Cylinder Brake Tubes
Courtesy of FORD MOTOR CO.

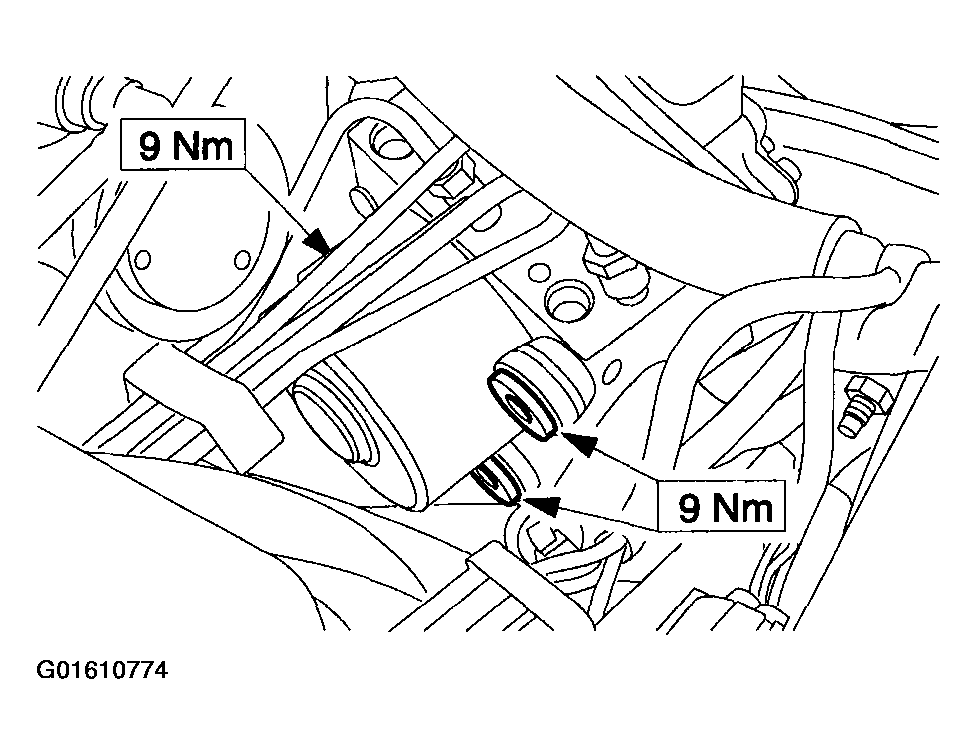

Fig 3: Installing Hydraulic Control Unit Brake Tubes
Courtesy of FORD MOTOR CO.
1. To install, reverse the removal procedure.

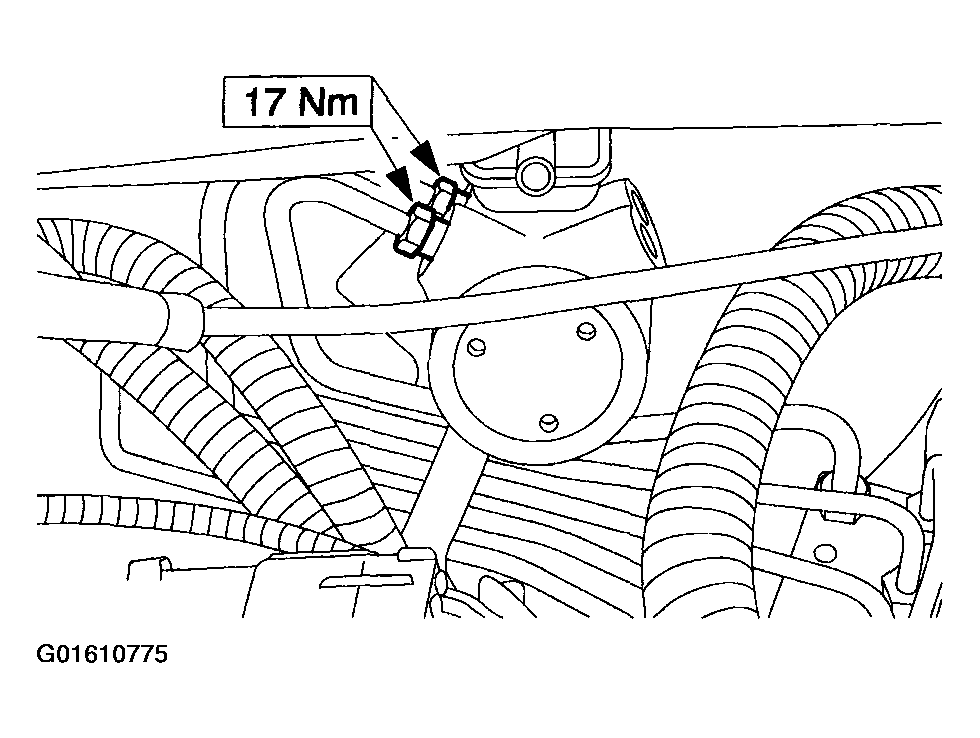

Fig 4: Identifying Bolt

Courtesy of FORD MOTOR CO.
