Pinpoint Test A: No Communication With The Stability Assist Module

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

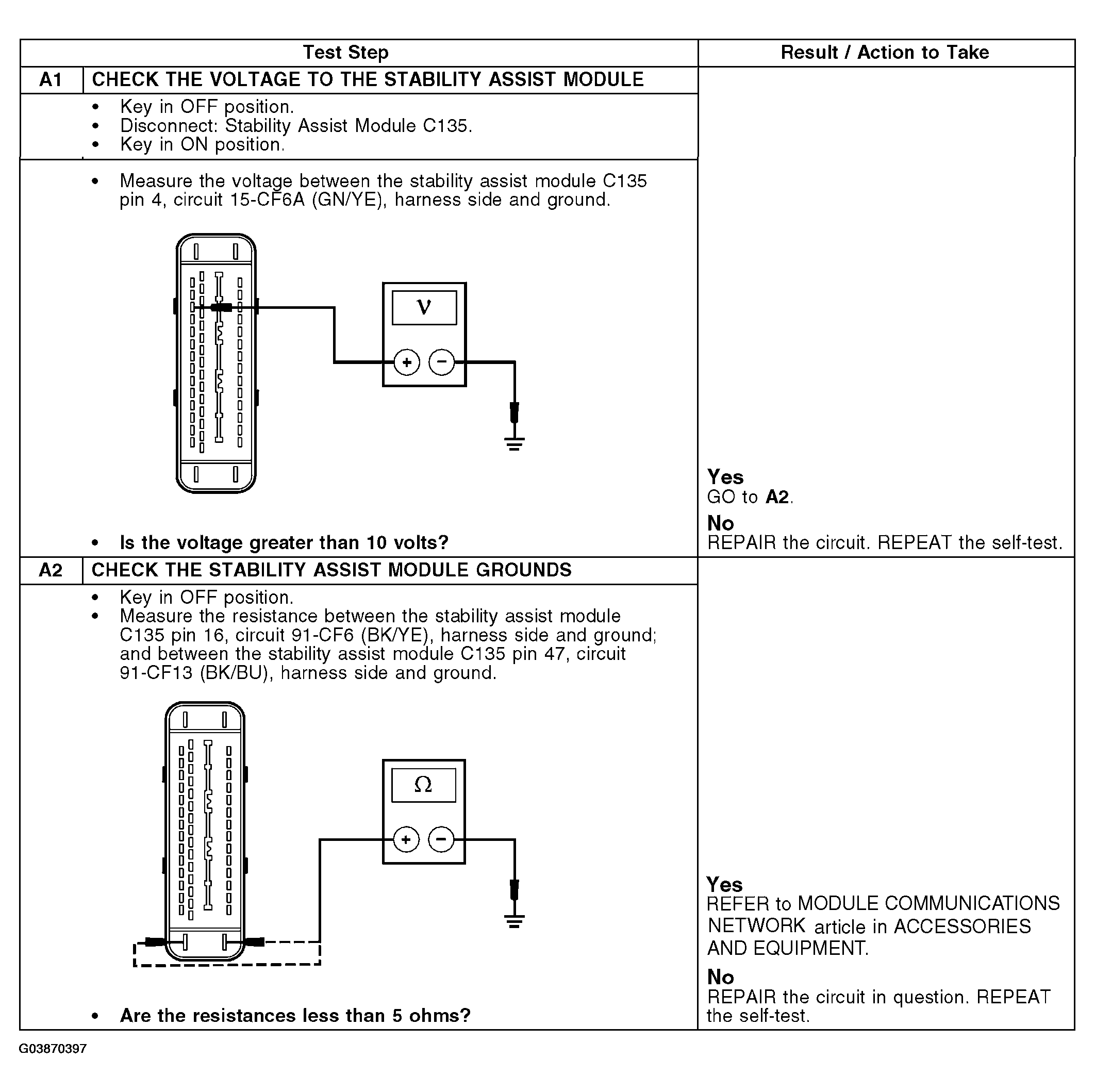

Fig 1: Pinpoint Test A: No Communication With Stability Assist Module (Step A1-A2)
G03870397Courtesy of FORD MOTOR CO.
