Pinpoint Test K: The Stability Assist System Cannot Be Disabled

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

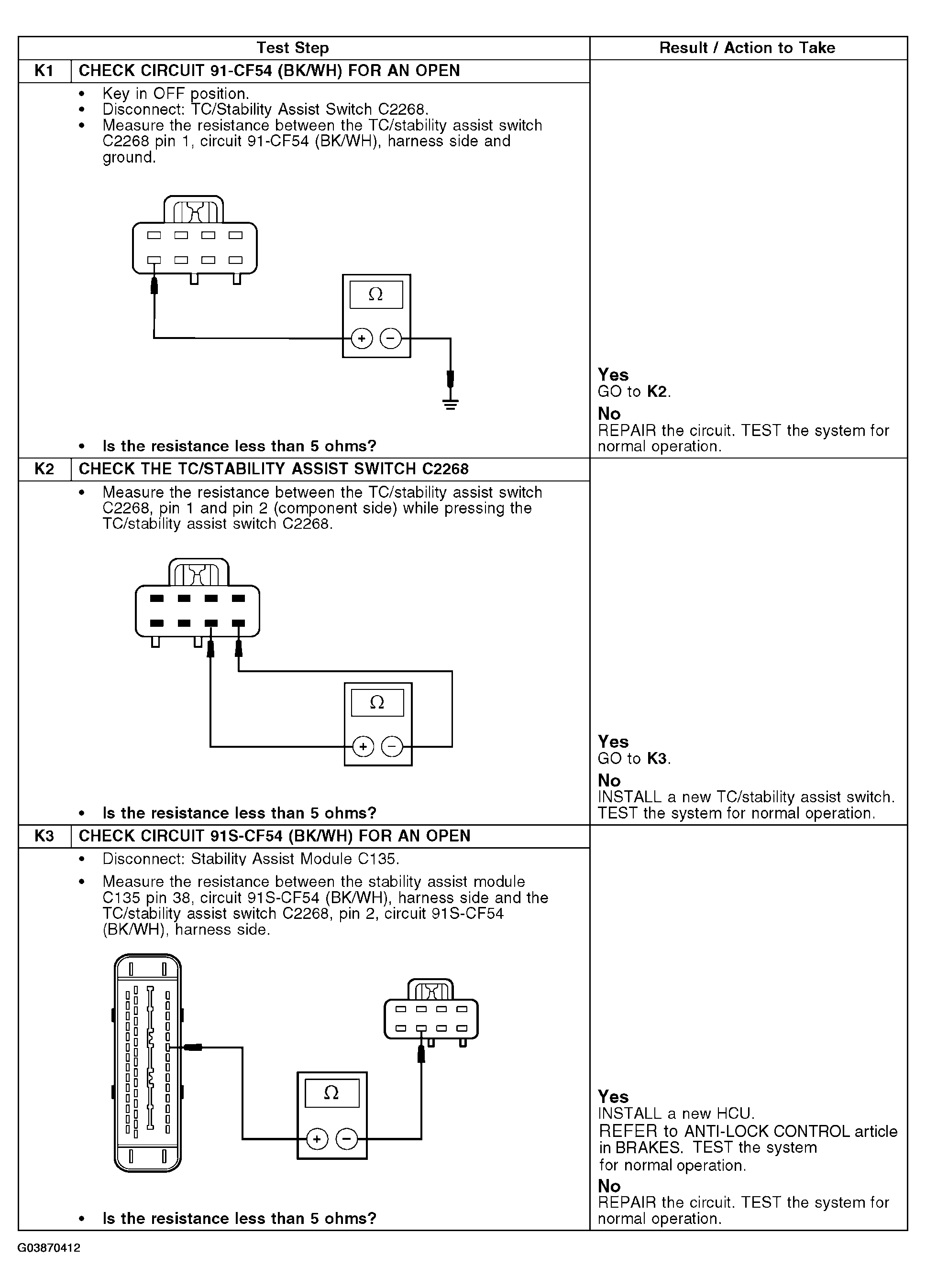

Fig 1: Pinpoint Test K: Stability Assist System Cannot Be Disabled (Step K1-K3)
G03870412Courtesy of FORD MOTOR CO.
